Instruction Manual

FS 410 C-M K, FS 460 C-M K, FS 490 C-M K
English
19

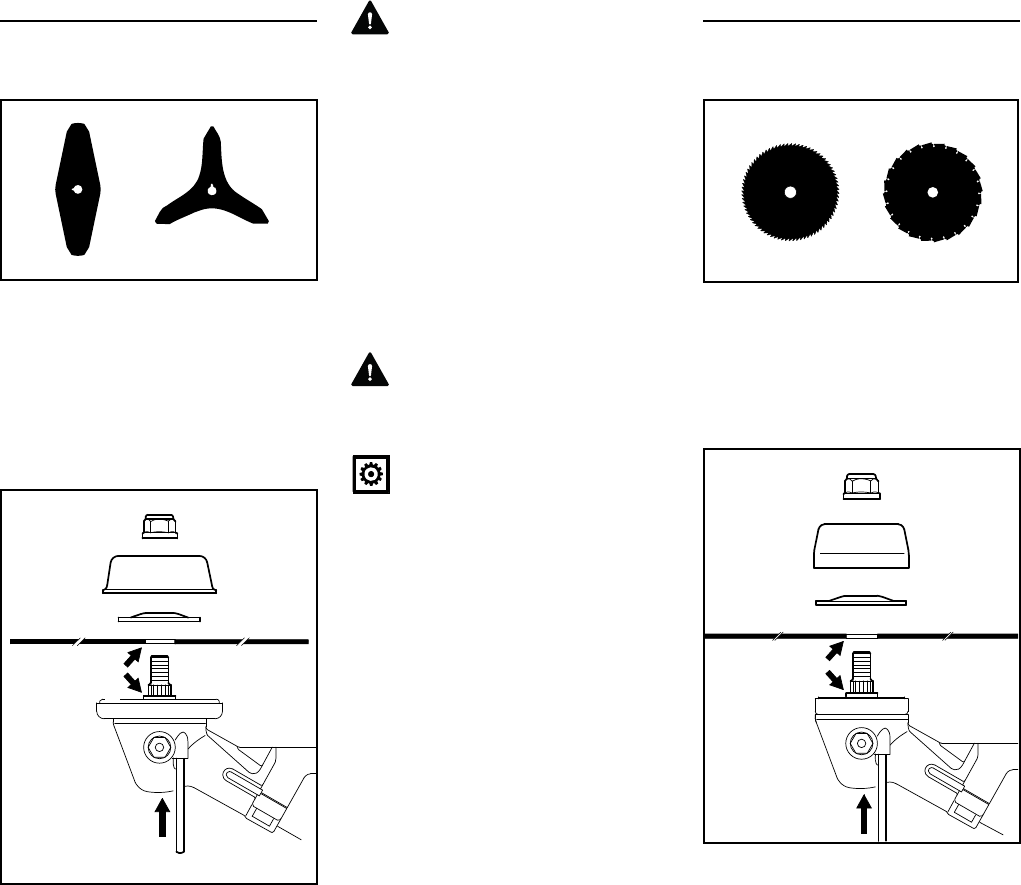

Brush knife 305-2 and 300-3
Aligning the cutting attachment
Cutting attachments with 2, 3 or 3 teeth
may point in either direction – these
cutting attachments must be turned over
regularly to help avoid one-sided wear.
Mounting the cutting attachment
N Fit the guard ring for mowing
applications.
N Place the cutting attachment (1) in
position.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the thrust washer (2) – convex
side must face up.
N Fit the rider plate (3) (for mowing
applications).
N Block the shaft.
N Screw the mounting nut (4) on to the
shaft counterclockwise and tighten
it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the cutting attachment
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the gearbox.
Circular Saw Blades 200 and 225
Aligning the cutting attachment
Cutting edges of circular saw blades
must point clockwise.
Mounting the cutting attachment
N Fit the guard ring for sawing
applications.
N Place the cutting attachment (1) in
position.
681BA123 KN
002BA521 KN
b
2
3
1
4
a
681BA165 KN
b
002BA300 KN
3
4
1
2
a
