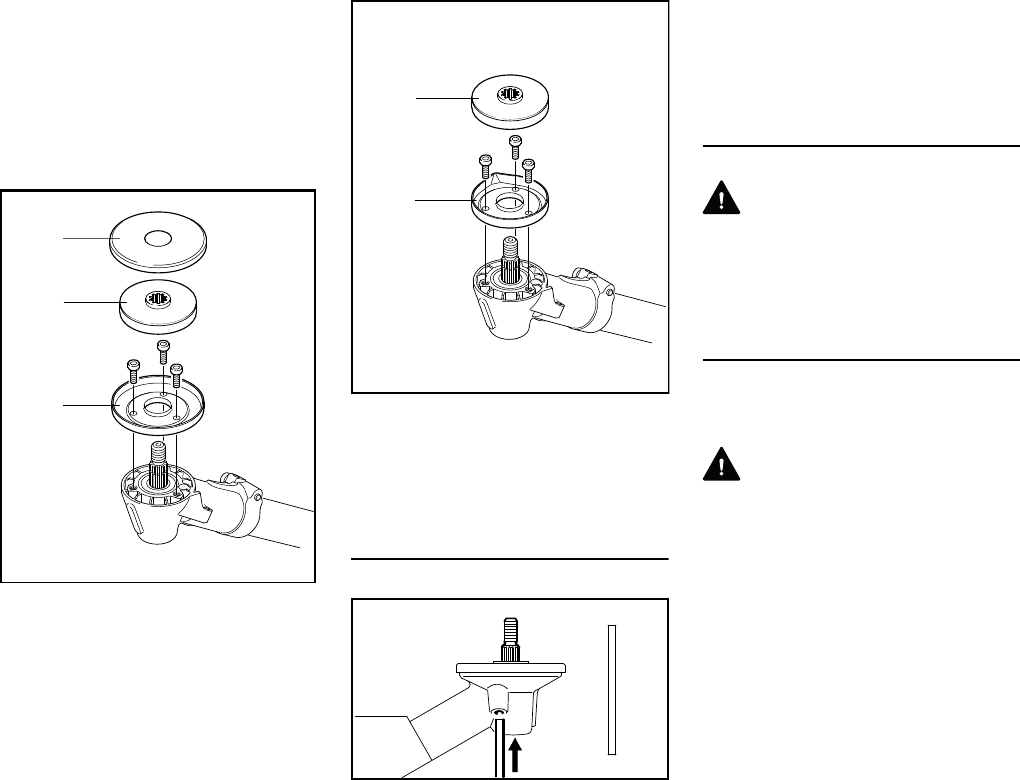

The following guard rings are mounted
on the gearbox or available as special
accessories:
Guard ring for mowing applications
A limit stop kit, which includes a
deflector, a guard washer and guard ring
for mowing attachments, is available as
a special accessory for mounting brush
knives.
For optimum protection from the ingress
of grass when using mowing
attachments:
N Attach the guard ring (1) for mowing
applications
N Fit the thrust plate (2) and guard
washer (3)
Guard ring for sawing applications
For use with circular saw blades
N Attach the guard ring (1) for sawing
applications
N Fit the thrust plate (2)
Retaining the Shaft
The output shaft (1) must be blocked
with the stop pin (2) to mount or remove
cutting attachments. The stop pin is
included with the machine and is
available as a special accessory.
N Push the stop pin (2) as far as it will
go into the hole (3) in the gear –
press gently
N Turn the shaft, nut or cutting
attachment until the stop pin
engages and the shaft is blocked
Mounting the Cutting Attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Removing and Installing Metal Cutting
Attachments
Before removing and installing metal
cutting attachments:
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
