Instruction Manual

FS 410 C-M K, FS 460 C-M K, FS 490 C-M K
English
17

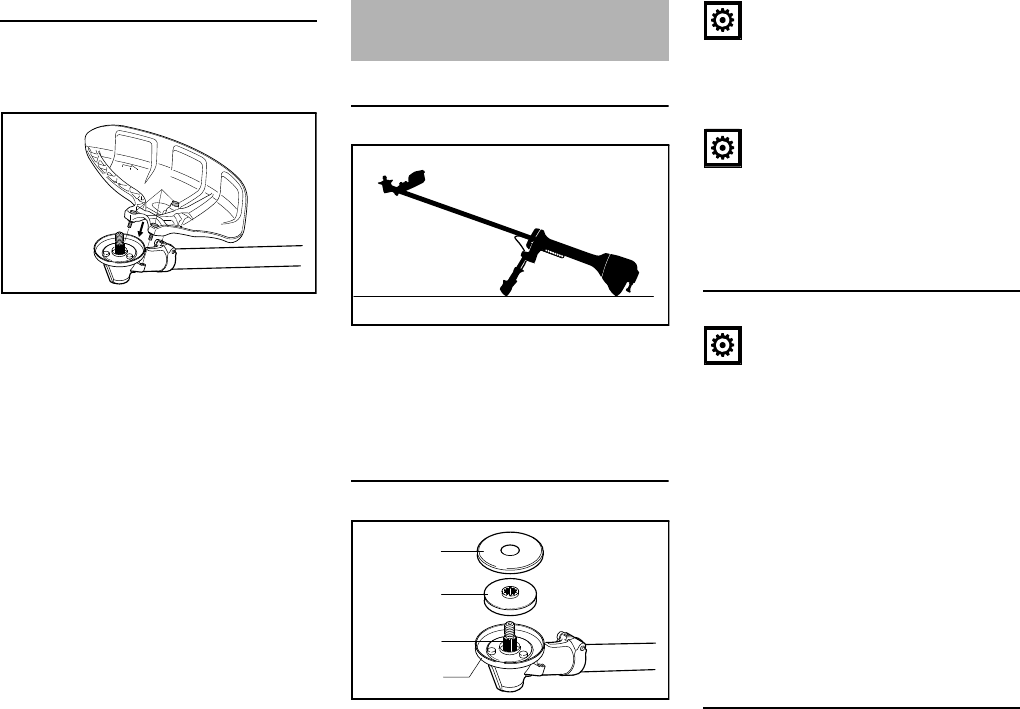

Mounting the Deflector
Deflectors (1 and 3) are mounted to the
gearbox in the same way.
N Remove dirt from joints on gearbox
and deflector – make sure that no
dirt gets into the screw holes in the
gearbox.
N Place the deflector on the
gearbox (4).
N Insert the screws (5) and tighten
them down firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Attaching the thrust plate
N Slip the thrust plate (1) over the
shaft (2).
Your power tool comes from the factory
with a guard ring (3) for circular saw
blades.
NOTICE
The thrust plate (1) is required for
mounting all cutting attachments to the
gearbox.
NOTICE
The guard washer (4) at the gearbox is
required for mounting brush knives.
Cleaning Gearbox Mounting Hardware
for Cutting Attachment
NOTICE
Check inside of guard ring (3) and area
around it for dirt at regular intervals, or
when you change the cutting
attachment, and clean if necessary.
The guard washer (4) is not fitted with
circular saw blades.
N Pull the guard washer (4) and thrust
plate (1) off the shaft.
N Thoroughly clean the guard ring (3),
shaft (2), thrust plate (1) and guard
washer (4) – do not remove the
guard ring.
Fitting the Guard Ring
The appropriate guard ring must be
used according to the cutting
attachment used.
Recommendation: The guard ring must
be mounted with particular care. Have
this work performed by your dealer.
STIHL recommends your contact a
STIHL servicing dealer.
4
002BA544 KN
5
Mounting the Cutting
Attachment
002BA406 KN
002BA548 KN
1
4
2
3
