INSTALLATION INSTRUCTIONS
HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION
2.2 Mounting on a raised-seam roof
This section is to aid in the mounting of the rail assembly
onto a raised-seam roof using an S5U clip and L-102
L-Bracket.
Part: # of Collectors in Array:
12 3 4
# of Parts Required:
S5U clip 481216
L-102 L-Bracket 481216

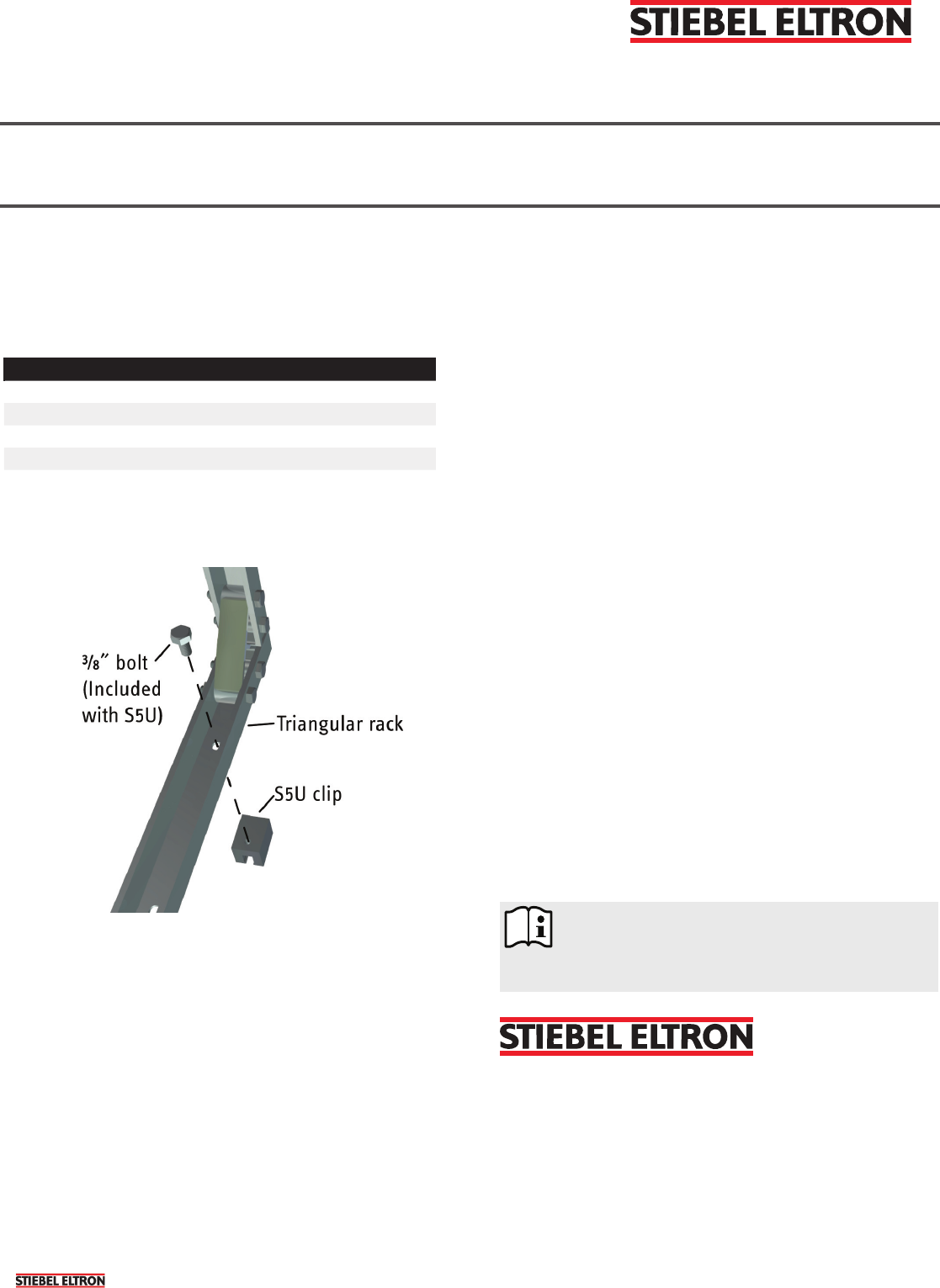

1. Assemble the S5U clip and triangular racks using the
included fasteners.
2. Clip the S5U assembly to the roof ridges.
Note: For information regarding the installation of S5U clips
and L-Brackets, consult the Stiebel Eltron Raised-seam
Roof Installation Guide.
3. Follow the same procedures for the remaining assembly
as shown in steps 3-14 in Section 2.1.

