INSTALLATION INSTRUCTIONS
HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION
Table of Contents
1 Assembling the horizontal tilt rack
2 Mounting
2.1 Mounting on an asphalt roof
2.2 Mounting on a raised-seam roof
!
CAUTION: READ ALL INSTRUCTIONS BEFORE
INSTALLING THIS KIT. ADDITIONAL ITEMS WILL
BE NEEDED TO MOUNT THIS ASSEMBLY.
This manual is intended to aid in the installation of 1-4
Stiebel Eltron SOL 27 Premium collectors tilted off of an
asphalt roof in a side-by-side landscape orientation. This
kit allows for quick and easy roof mounting of collectors.
Please contact Stiebel Eltron, or visit our website for more
information.

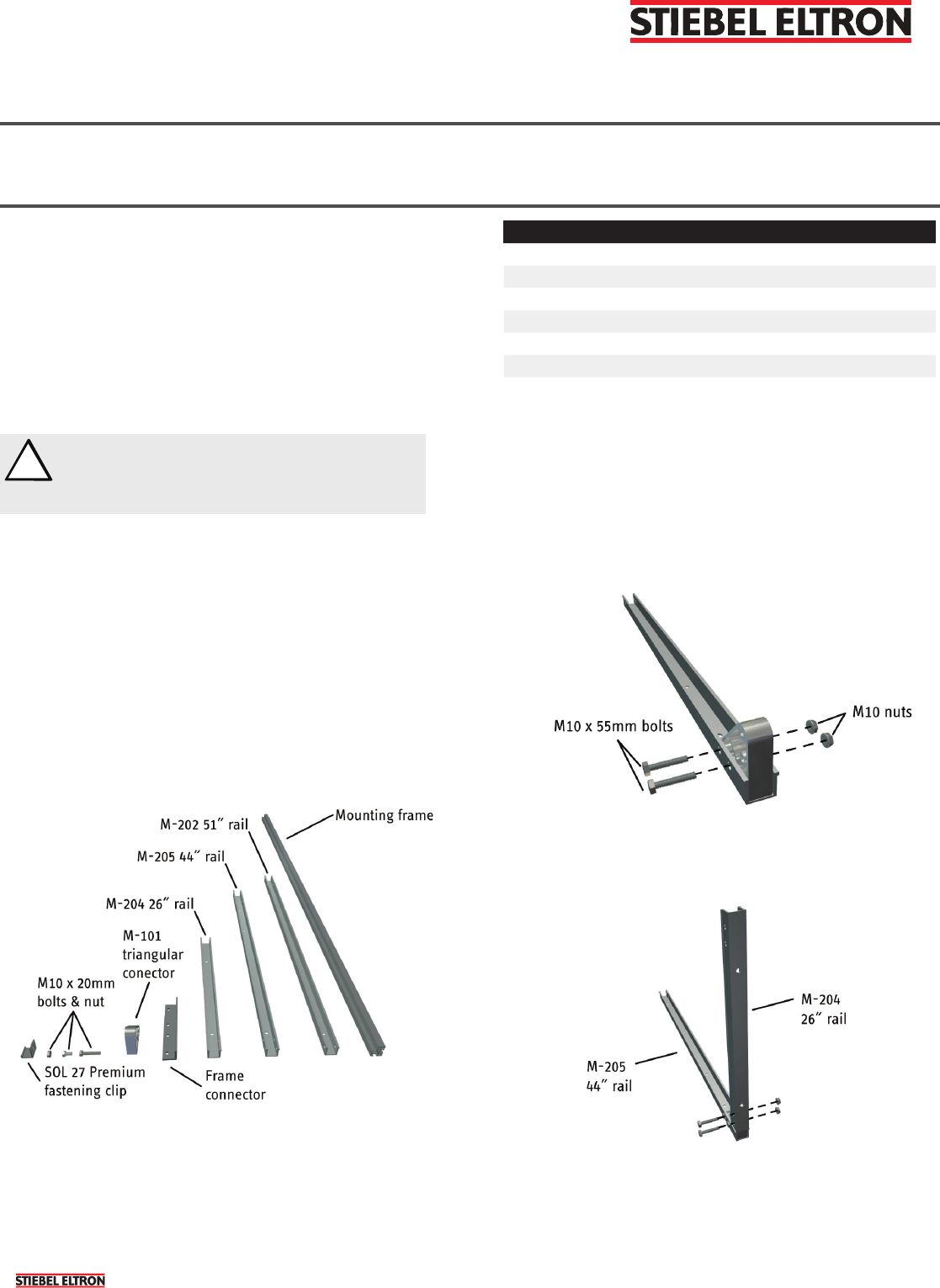

1. Familiarize yourself with the parts necessary to install
this solar kit. The parts are pictured below:
2. Consult the table below to make sure you have the
right number of components for the appropriate number of
collectors.
Part: # of Collectors in Array:
12 3 4
# of Parts Required:
30 - 60 Horizontal tilt rack 24 6 8
Horizontal X-Brace 12 3 4
Double mounting frame kit 12 3 4
Frame connector kit 01 2 3
Mounting kit 481216
3. Begin the assembly by removing the racking
components from their boxes. Insert the M-101 triangular
connector into the inside of the M-205 44˝ rail as shown
below. Using the M10 nuts & bolts, fasten the two parts
together.
4. Repeat the process with the M-204 26˝ rail using two
more M10 nuts & bolts.
5. Again repeat the process with two more M-101
triangular connectors on the ends of each rail.
