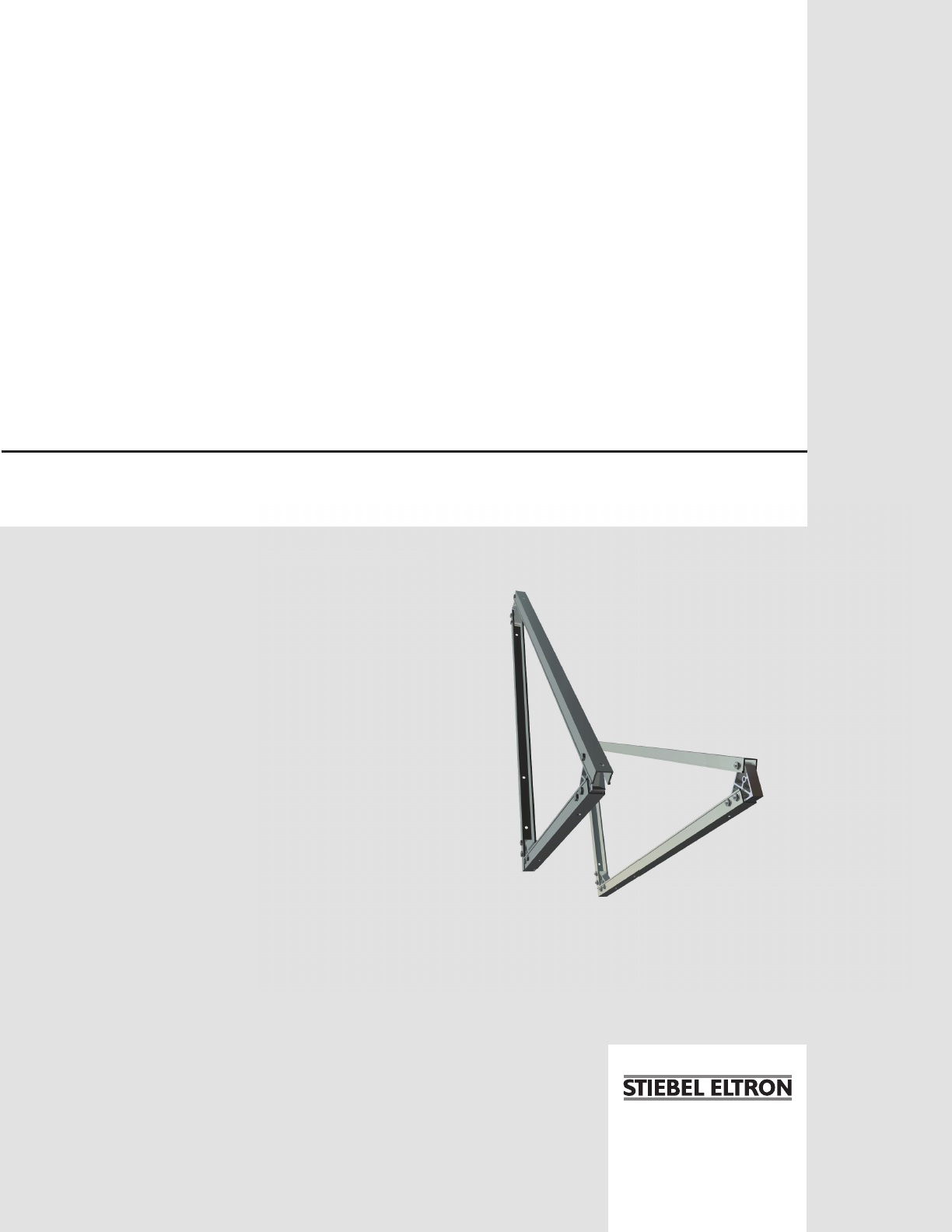

OPERATION AND INSTALLATION ROOF MOUNTING HARDWARE » HORIZONTAL ADJUSTABLE TABLE RACK 30-60°
Simply the Best INSTALLATION INSTRUCTIONS HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION Table of Contents Part: 1 1 2 Assembling the horizontal tilt rack Mounting 2.1 Mounting on an asphalt roof 2.2 Mounting on a raised-seam roof CAUTION: READ ALL INSTRUCTIONS BEFORE INSTALLING THIS KIT. ADDITIONAL ITEMS WILL BE NEEDED TO MOUNT THIS ASSEMBLY.
Simply the Best INSTALLATION INSTRUCTIONS HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION Note: For information regarding the installation of SQbracket flashing kits consult the Stiebel Eltron Flashing Kit Installation Guide. 6. Complete the rack assembly by attaching t he remaining, M-202 51˝ rail and fastening it with two M10 nuts & bolts. 7. Repeat this process for all remaining racks. 2 Mounting 2. Fasten the racks to the flashing kits as shown below. 2.1 Mounting on an asphalt roof 1.
Simply the Best INSTALLATION INSTRUCTIONS HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION 3. Remove X-Braces from its box (560206). Fasten the X-Braces to the racks using and M10 x 20mm bolts & nuts. 4. Use the M6 bolt and nut to secure the two X-Brace pieces together. 5. Remove the mounting frames (230170) from the box. Slide 2 M10 x 20mm bolts into the groove in the long side of the mounting frame. Do this for each mounting frame. 6.
Simply the Best INSTALLATION INSTRUCTIONS HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION 8. Before the assembly is bolted to the roof mount, the bolts for the collector fastening clips must be slid into the short side slot of all mounting frames. Slide four M10 x 20mm bolts in the short side of the mounting frame.Loosely attach the fastening clips to the bolts and lift them over the lip as shown for easy collector mounting. 10.
Simply the Best INSTALLATION INSTRUCTIONS HORIZONTAL TILT RACKS - 30 & 60 SIDE-BY-SIDE ORIENTATION 2.2 Mounting on a raised-seam roof This section is to aid in the mounting of the rail assembly onto a raised-seam roof using an S5U clip and L-102 L-Bracket. Part: # of Collectors in Array: 2 3 4 # of Parts Required: 4 8 12 16 4 8 12 16 1 S5U clip L-102 L-Bracket 1. Assemble the S5U clip and triangular racks using the included fasteners. 2. Clip the S5U assembly to the roof ridges.
