Installation Guide

11. Secure the Whirlpool - Alcove Installations
NOTE: The whirlpool should be secured using the metal attachment clips (provided).
Refer to the ″Roughing-In″ section for recommended clip locations.
Verify the studs are within 1/8″ (3 mm) of the whirlpool at the recommended clip locations. Shim if
necessary.
Slide the bottom of each clip into the space between the whirlpool flange and stud until the tab
touches the whirlpool.
Secure the attachment clips with galvanized or plated flathead screws.

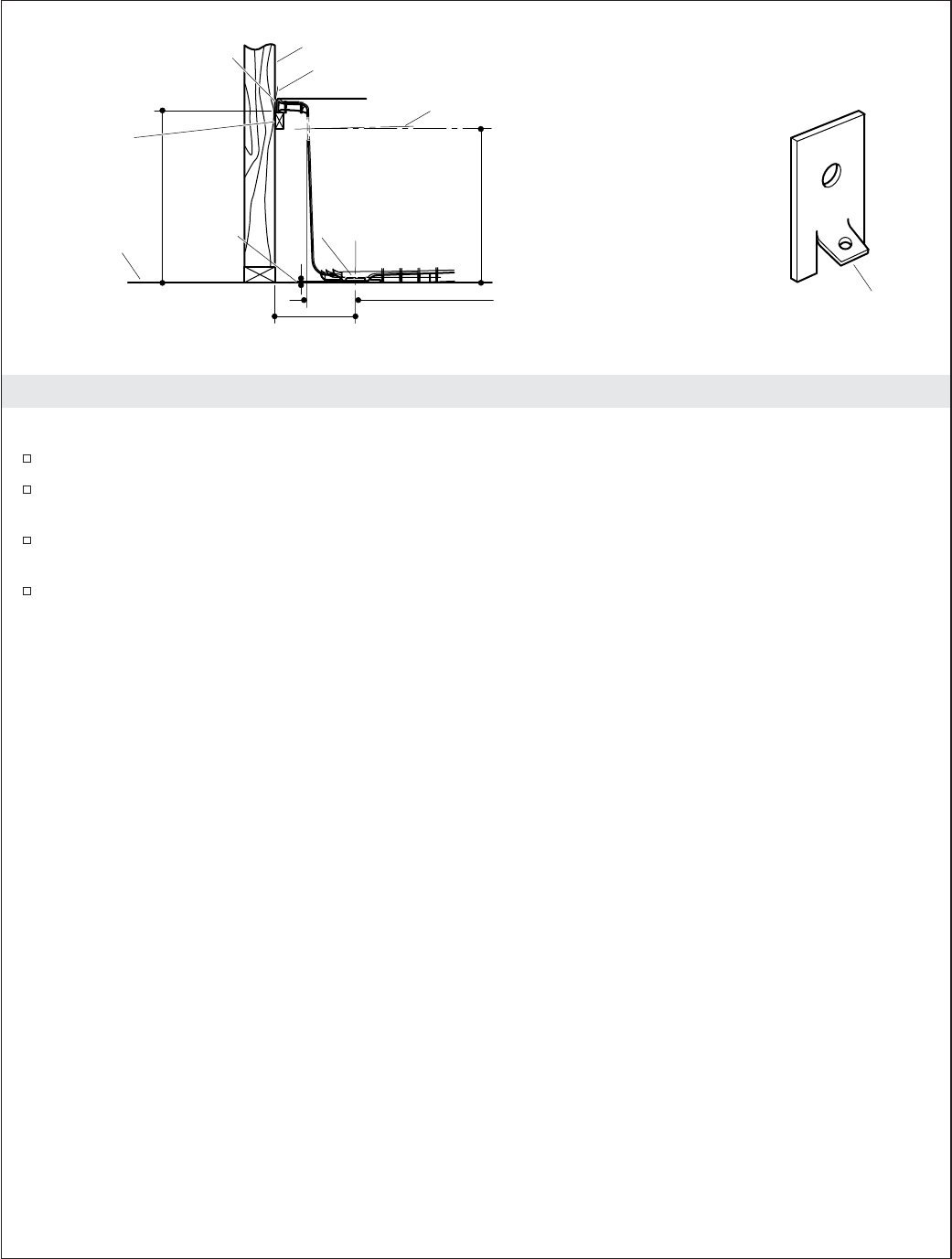

Subfloor
8-3/4" (22.2 cm)
5-1/4" (13.3 cm)
Attachment Clip
Ledger Strip
Stud Wall
Attachment Clip
2" (5.1 cm)
D. Drain
18-3/4"
(47.6 cm)
3/16"
(5 mm)
Flange
2-1/2" (6.4 cm) D. Overflow
17" (43.2 cm)
Overflow Height
Tab
1105582-2-B 16 Sterling
