Use and Care Guide

Technical Information
Model door maximum width door maximum
height
72250106 38-5/8″ (98.1 cm) 72″ (182.9 cm)
Installation Notes
Install this product according to the installation guide.
Size the drain cutout to fit the drain assembly that will be
used.
End stud positioning is critical if nailing-in flanges are to be
used.
Double studding is recommended for pivot shower door
installations.
Studs should be positioned roughly as shown for roofing nail
use.
Receptor cannot be installed without the wall surround.
10" (25.4 cm)
4" (10.2 cm)
End Wall
44-1/4"
(112.4 cm)
29-1/4"
(74.3 cm)
10-1/4" (26 cm)
42-1/8" (107 cm) Min
42-1/4" (107.3 cm) Max
13"
(33 cm)
13"
(33 cm)
16"
(40.6 cm)
4-1/2"
(11.4 cm) D.
Drain Cutout
16-3/8"
(41.6 cm)
8"
(20.3 cm)
26"
(66 cm)
37-1/4"
(94.6 cm)
Recommended Roofing
Nail Locations (4 total)
3-5/16"
(8.4 cm) OD
Drain Hole
1-5/8" (4.1 cm)
at Midpoint
36"
(91.4 cm)
1-1/4"
(3.2 cm)
1-1/4"
(3.2 cm)
71-1/4"
(181 cm)
42"
(106.7 cm)
6-5/8"
(16.8 cm)
7-5/8"
(19.4 cm)
77"
(195.6 cm)
3-7/8"
(9.8 cm)
54"
(137.2 cm)
21"
(53.3 cm)

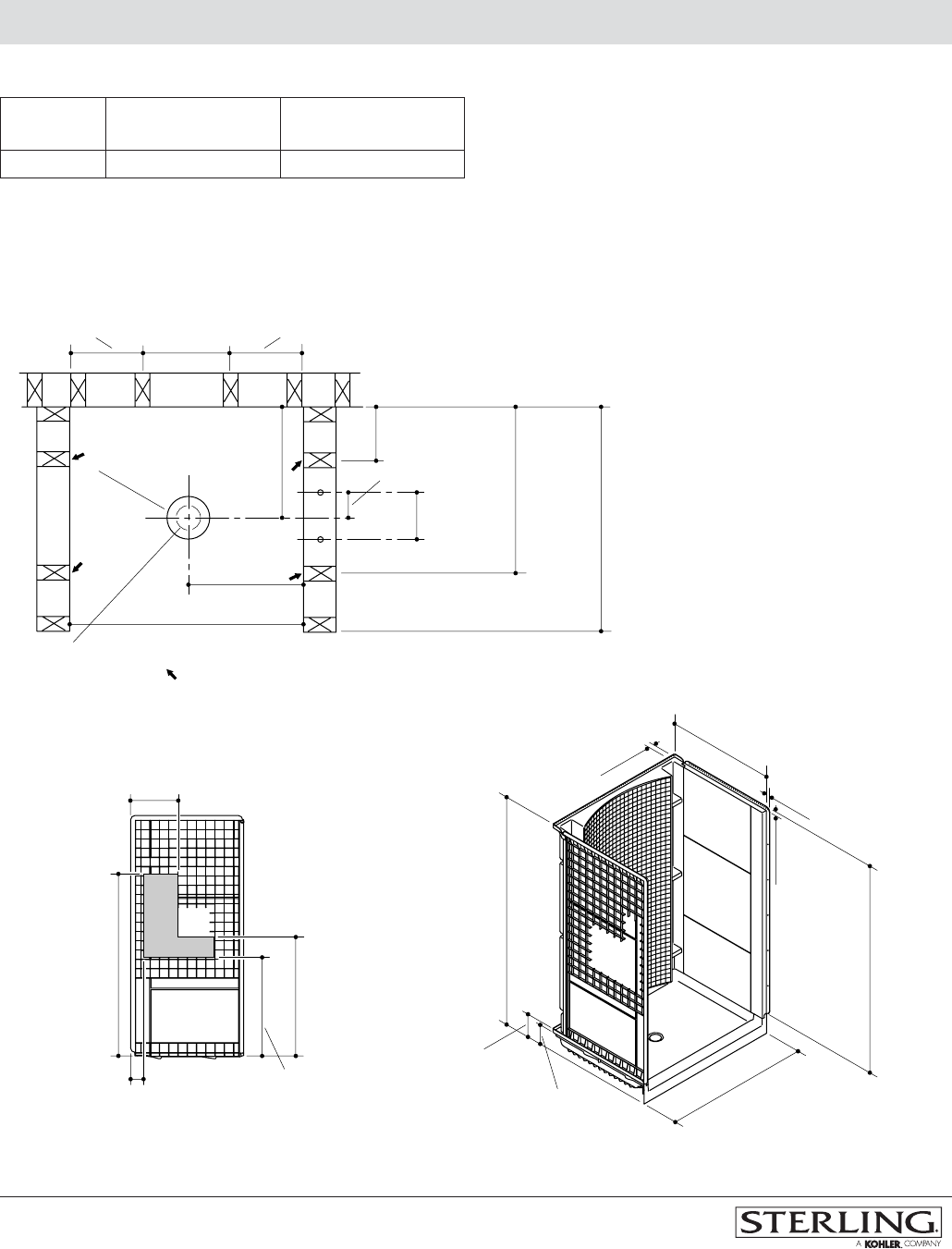

Product Diagram
ACCORD
®
ACCORD
®
42″ (106.7 cm) RECEPTOR AND SURROUND W/BACKER BOARDS
