Specification

2" (51 mm)
Notes

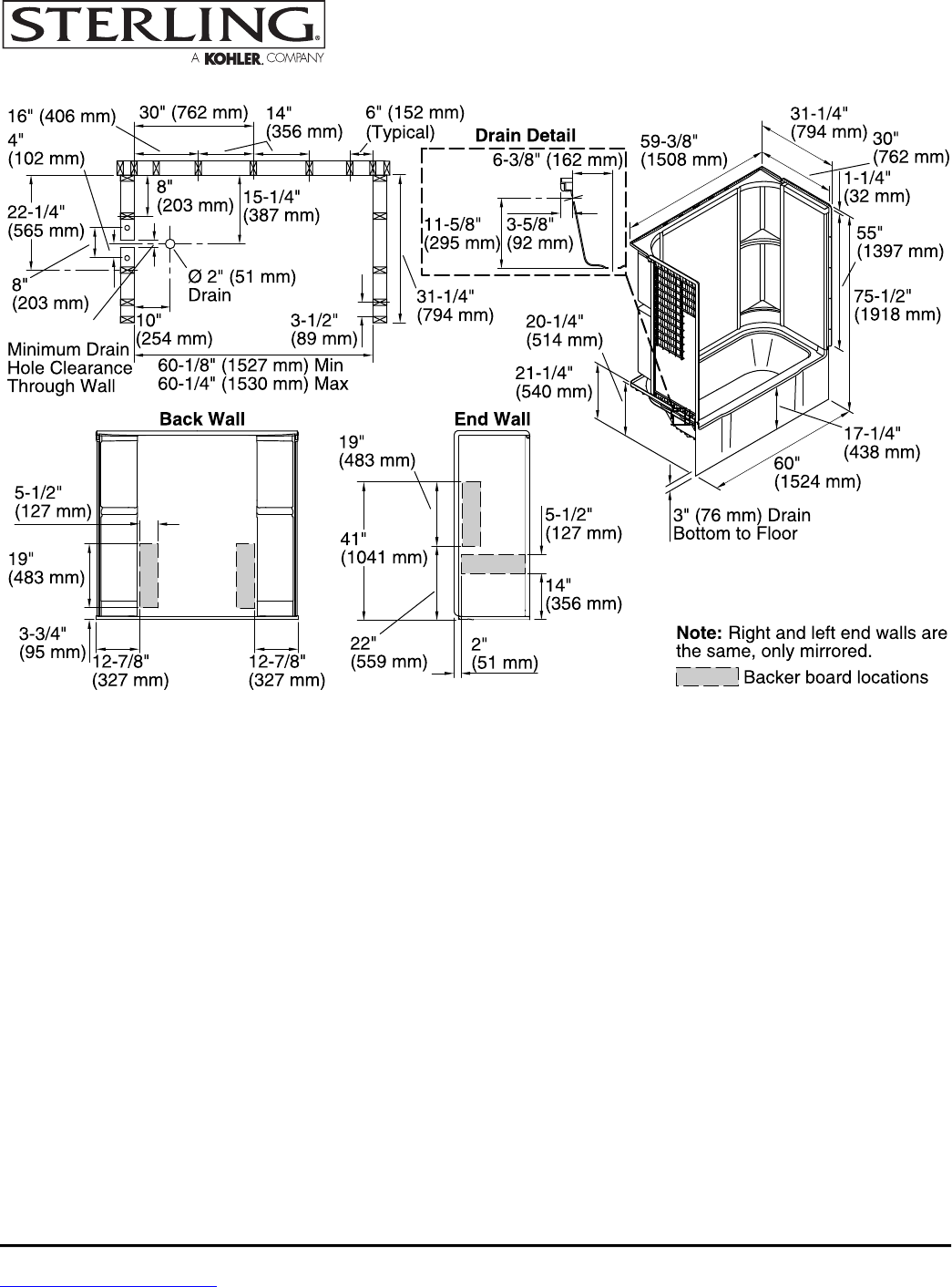

Technical Information
Measure your actual product for roughing-in
details. Install this product according to the
installation guide.
All product dimensions are nominal.
3-Wall AlcoveInstallation:
LeftDrain location:
Product is designed to be used with a single-hole
mixer valve with an escutcheon cover not to
exceed 7-3/4" (197 mm) in width.
46-1/4" x 20-1/2" (1175 mm x 521 mm)Basin area, bottom:
52-1/4" x 22-1/2" (1327 mm x 572 mm)Basin area, top:
11" (279 mm)Water depth:
Studs should be positioned roughly as shown.
34 gal (128.7 L)Water capacity:
Bath cannot be installed without the wall
surround.
56-1/2" (1435 mm)Door height required:
56-3/4" (1441 mm)Door width required:
Attach grab bars at the specified backer board
locations only.
Width of back wall at the top transitions from 60"
(1524 mm) at the front to 59-3/8" (1508 mm) in
the back corners. Furring strips approximately
1/4" (6 mm) thick should be used at the back
corner studs if drywall is to be installed over the
nailing flange.
ADA adaptable when grab bars and seat are
installed per the specific requirements of these
regulations.
USA/Canada: 1-800-STERLING (1-800-783-7546)
www.sterlingplumbing.com
2-18-2015 02:19
Accord
®
60" AFD Bath/Shower w/Backerboard
71240118
