Installation Guide

USA: 1-800-STERLING (1-800-783-7546)
Mexico: 001-877-680-1310
SterlingPlumbing.com
1
Groove

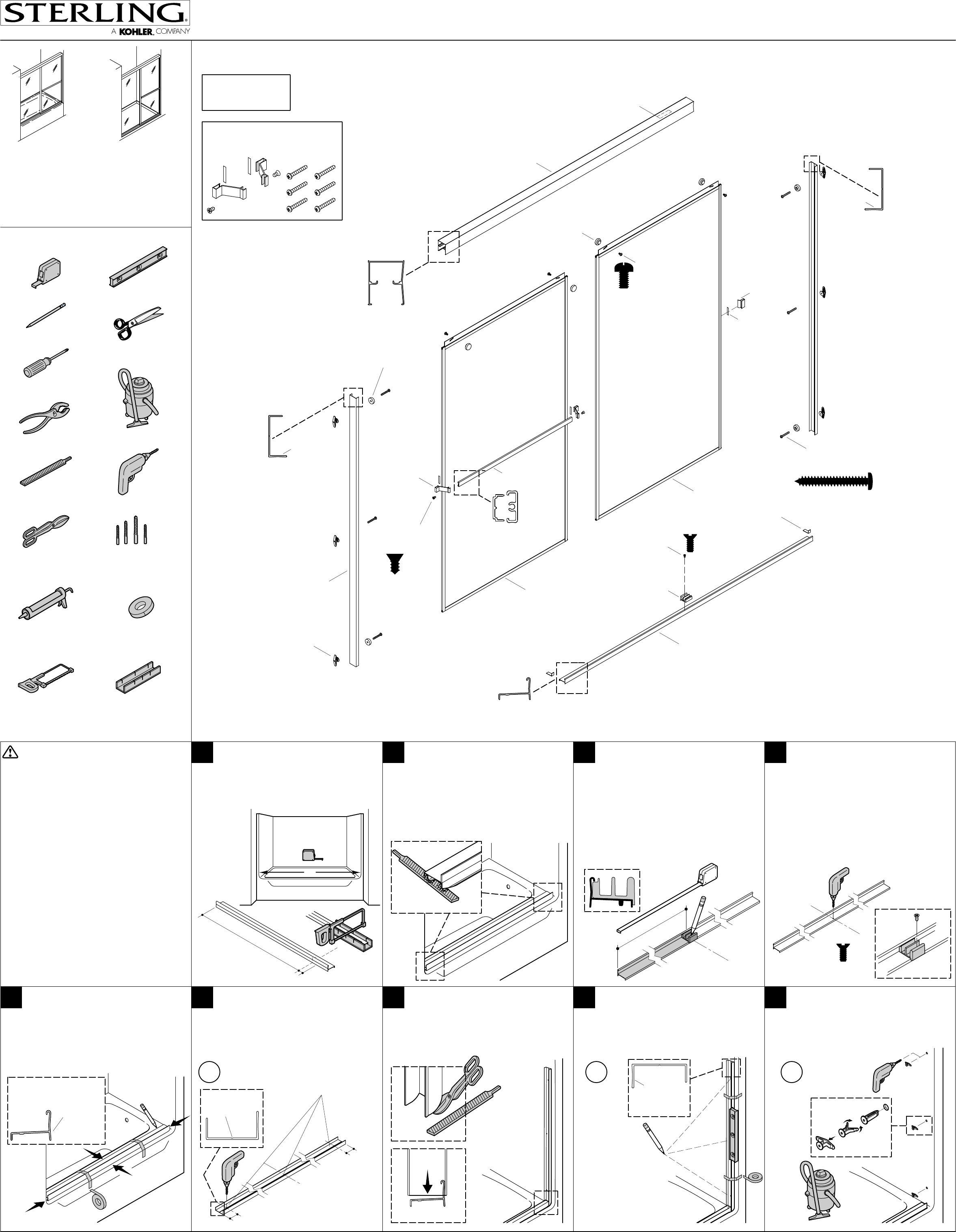

500, 660, 670, and 690 Series Bypass Shower and Bath Doors
Installation Guide
Measure distance "A." Subtract 1/8" (3 mm) from
"A" and cut the bottom track.
File the bottom track edges to fit curved corners
of the shower or bath unit.
Measure and mark the exact center of the bottom
track. Center the guide and mark the hole.
Drill a 1/8" hole at the marked location and attach
the guide with a #6-32 x 5/16" flathead screw.
Position wall jamb with “Groove" side up. Drill a
3/16" hole 3" (7.6 cm) from each end and one in
the center between the two holes.
Position the wall jambs over the bottom track.
Snip/file bottom edges for a snug fit.
Drill 5/16" holes and insert the anchors.
*Call Customer Care Center to order replacement parts.
**Finish/color code must be specified when ordering.
Retain this document for future servicing.
Record model number from box for reference.
Center the bottom track on the ledge with the leg
to the outside. Tape in place and mark position.
CAUTION: Risk of injury or property damage.
Do not attempt to cut tempered glass.
IMPORTANT! Do not cut the top track the same
length as the bottom track.
Walls must be within 3/8" (1 cm) of plumb.
Cover drain with tape to avoid loss of small parts.
Follow the silicone sealant manufacturer's
instructions for application and curing time.
Installation video available at
SterlingPlumbing.com.
With the 500 Series Door, the towel bar is not
included. Contact Customer Care Center to
purchase a Towel Bar for this series door.
Parts Identification
Series Number Label
1077762
Anchor
1048208-E
Screw
#8-18 x 1-1/4"
7
89
5
2
3
4
Required Tools
1171026-01**
Bracket
172818
Roller
1042930-A
Screw
#6-32 x 5/16"
1
6
Model Number:______________
1166704-2-A
Plumb both wall jambs. Mark the screw holes.
1173290**
Hardware Skin Pack
Bypass Shower DoorsBypass Bath Doors
1049018-G
Screw
# 8-18 x 3/8"
Inside Panel*
Towel Bar*
1042862-A
Screw
#8-32 x 3/8"
1129847-01**
Top Track
1171024-01**
Handle
Wall Jamb
Long Leg
Top Track
172821
Bumper
Wall Jamb*
1129843-01
Tape
1083114**
Guide
Bottom Track
1129841-01**
Bottom Track
1129873
Cover
Outside Panel*
Towel Bar
1173259**
Towel Bar Bracket and Hardware
Wall Jamb*
Long Leg
#6-32 x 5/16"
1/8" (3 mm)
Length =
A – 1/8" (3 mm)
A
To Outside
3/16" Diameter Holes
3" (7.6 cm)
3" (7.6 cm)
x2
Large Leg
to Outside
x2 x2
1
2
3
100% Silicone Sealant Masking Tape
32 Teeth Per Inch Blade
1/8", 3/16", 5/16", 5/16" Masonry
Miter Box
Tin Snips
* 600 Series includes
Towel Bar.
* 600 Series includes
Towel Bar.
