MAINTENANCE
SECTION 6-5
Cutting Chamber Access

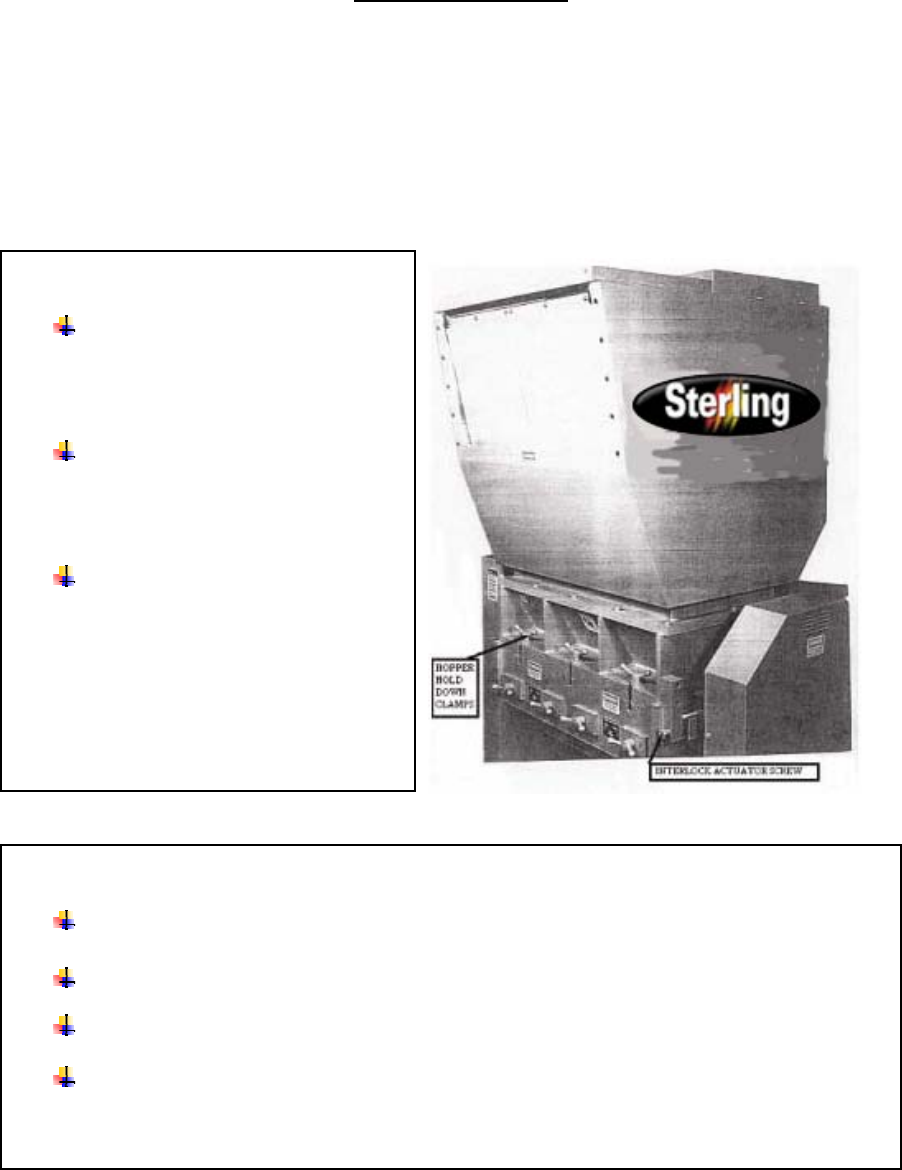

CLOSE THE SCREEN CRADLE
INTERLOCK
Engage the interlock screw by turning
it clockwise with a box wrench or a ratchet
wrench.
Make sure the interlock actuator screw
is fully seated against the top surface of its
housing.
When engaged, the interlock switch
closes the electrical control circuit to the
machine and allows it to operate.
RESTART THE GRANULATOR
If necessary to replace the fuses, call an electrician to do it.
UNLOCK AND TURN ON the main power.
Remove the OUT OF SERVICE tag.
Start the granulator by depressing the start pushbutton on the electrical cabinet.
