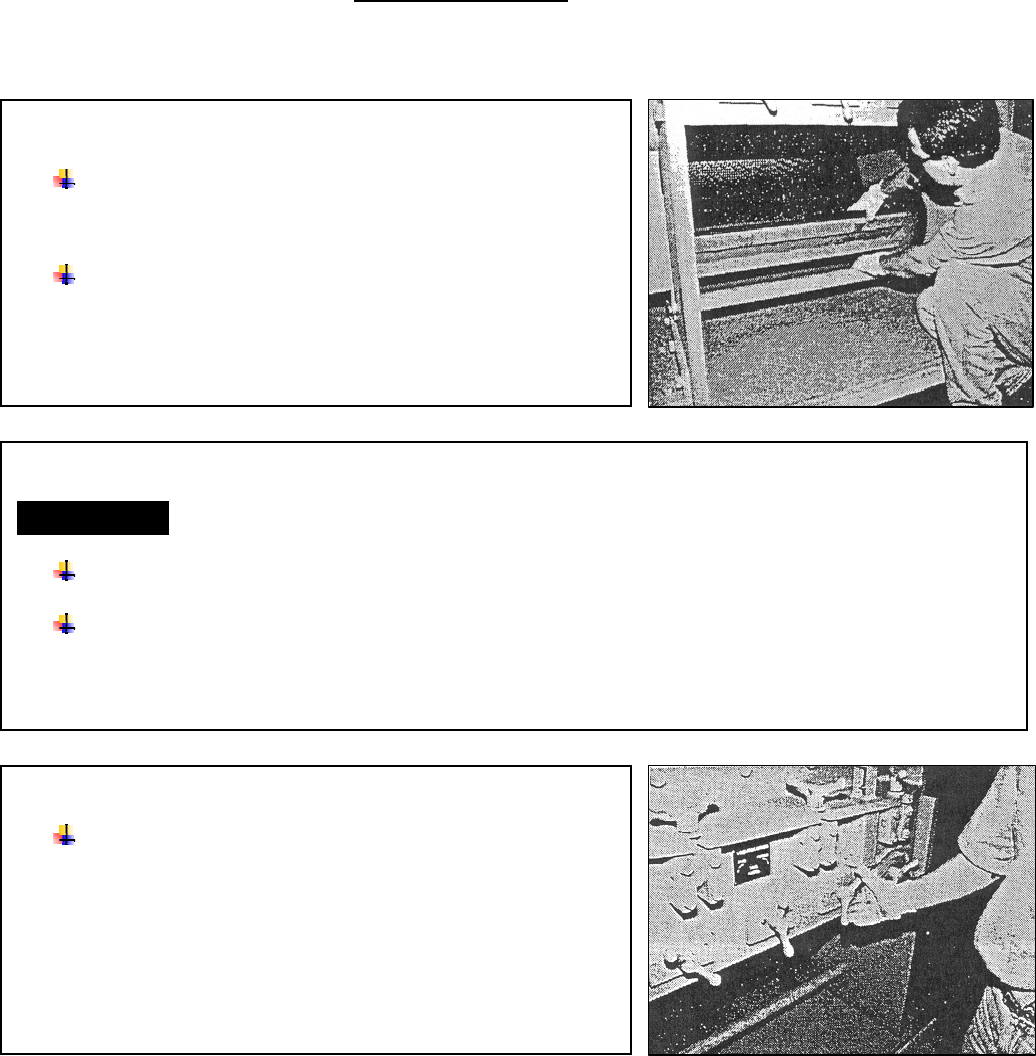

Screen Replacement
REPLACE THE SCREEN (Continued from previous page)
Guide the screen carefully as you "roll" it into the cradle,
then slide it down around the cradle until you can hang the
front lip of the screen over the front edge of the cradle.
Be careful not to hit the rotor knives with the far end of the
screen.
Repeat the foregoing steps for each segment of the screen.
CLOSE THE SCREEN CRADLE RETAINERS
Turn the screen cradle retainer knobs counterclockwise
until they stop. (This returns the retainer wedges to their
positions under the screen cradle where they lock the cradle in
place.)
RAISE THE SCREEN CRADLE
WARNING!
Make sure the screens fit properly to the cradle.
Pivot each cradle section up in place and start to turn in at least on cradle retainer for that section.
