Screen Replacement
(Continued on next page)

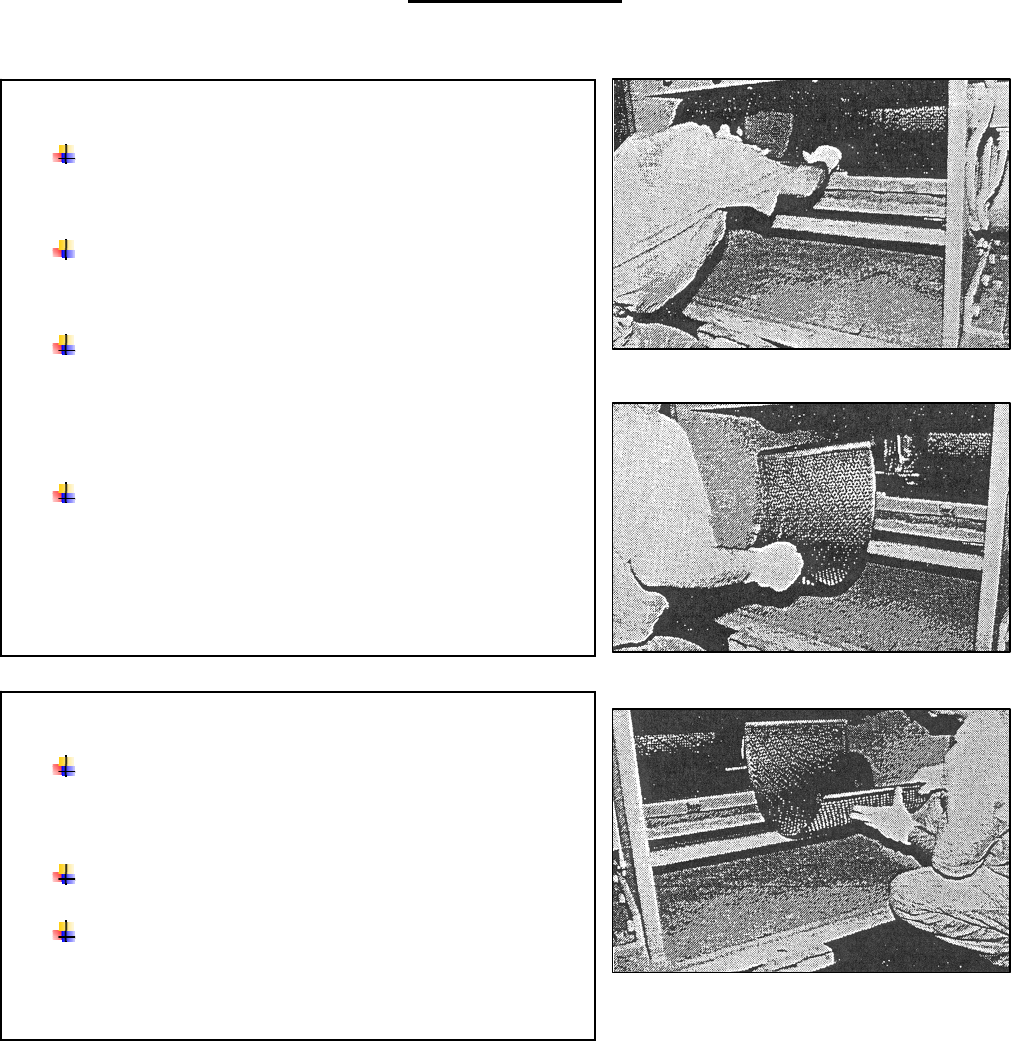

REMOVE THE SCREEN
The screen is divided into segments. Remove one
segment at-a-time.
Grasp the screen on its near edge and raise the edge by
allowing the screen to slide in the cradle.
Pull it toward you slowly allowing it to slide over the
edge of the screen cradle and then let it down as you
continue to pull it toward you. Be careful not to hit the
rotor knives with the trailing end of the screen.
Ease it to the floor and remove it from the front of the
granulator.
Repeat the foregoing steps for each segment of the screen.
REPLACE THE SCREEN
Place the screen on the floor close to, and in front of
the machine. Set it on its circular surface with its long
dimension parallel with the machine.
Align one edge with the edge of the machine cradle.
Roll the screen into the cradle on the near side and then
slide it until it fits into the cradle.
