MAINTENANCE
SECTION 6-4

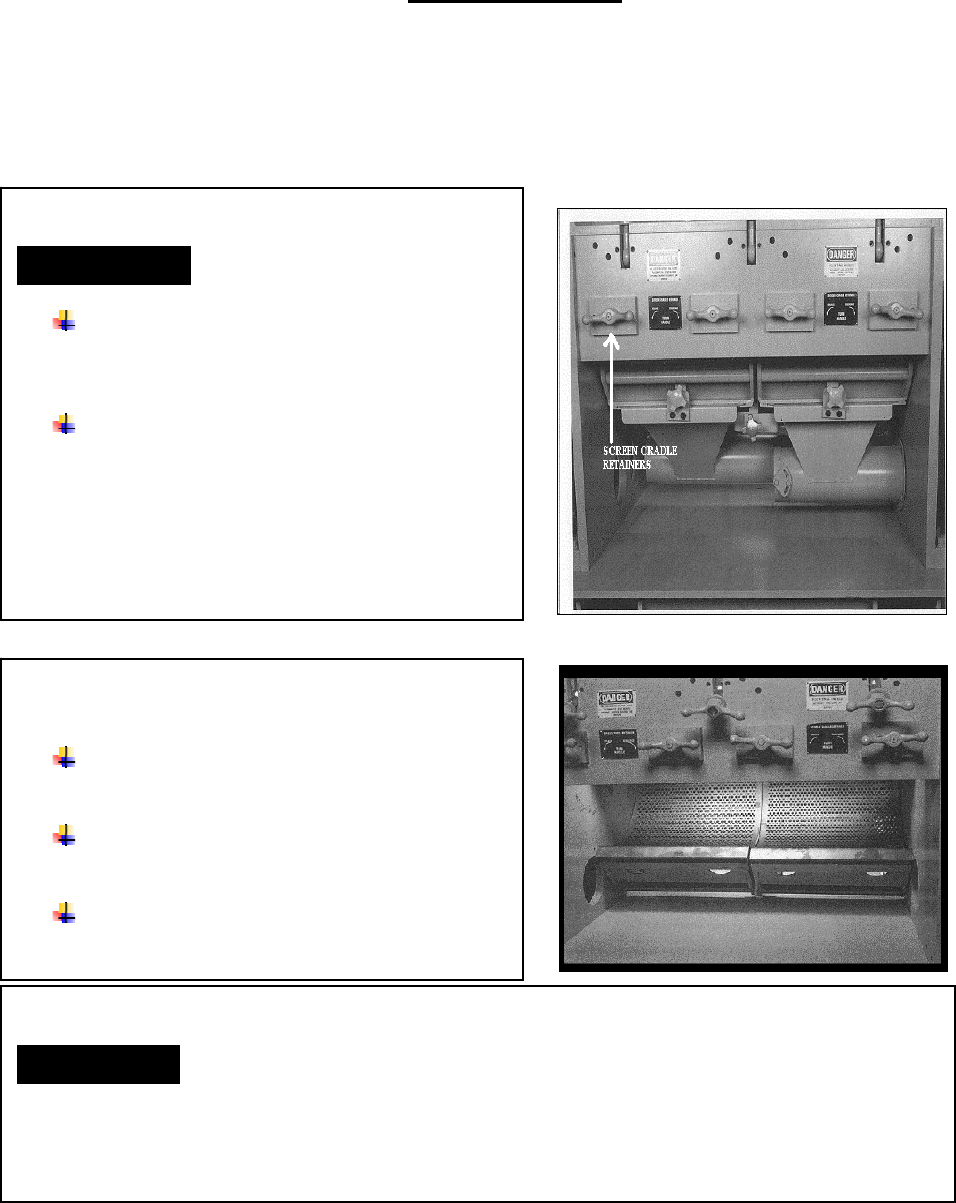

Screen Replacement
RETRACT THE SCREEN CRADLE
RETAINERS
Turn the screen cradle retainer knobs
clockwise until they stop. (This retracts the support
wedges from beneath the screen cradle).
When the wedges are fully retracted, rods
extend so that their ends are flush with the surface
of each of the retaining knobs mounting plates.
Push down on the bar handle to pivot the
cradle, exposing the screens.
LOWER THE SCREEN CRADLE
WARNING!
The screen cradle sections are held in place
with wedge type retainers at the front of the
machine.
Gas springs are also used to assist in pivoting
the cradle assembly.
BEWARE OF ROTOR KNIVES
CAUTION!
Avoid contact with the rotor knives, which are just above the screen. The cutting edges are very sharp.
Wear gloves to avoid injury when working in this area.
