Instruction Manual

REVISION 9/04 BJF
60
MAINTENANCE
SECTION 6-4

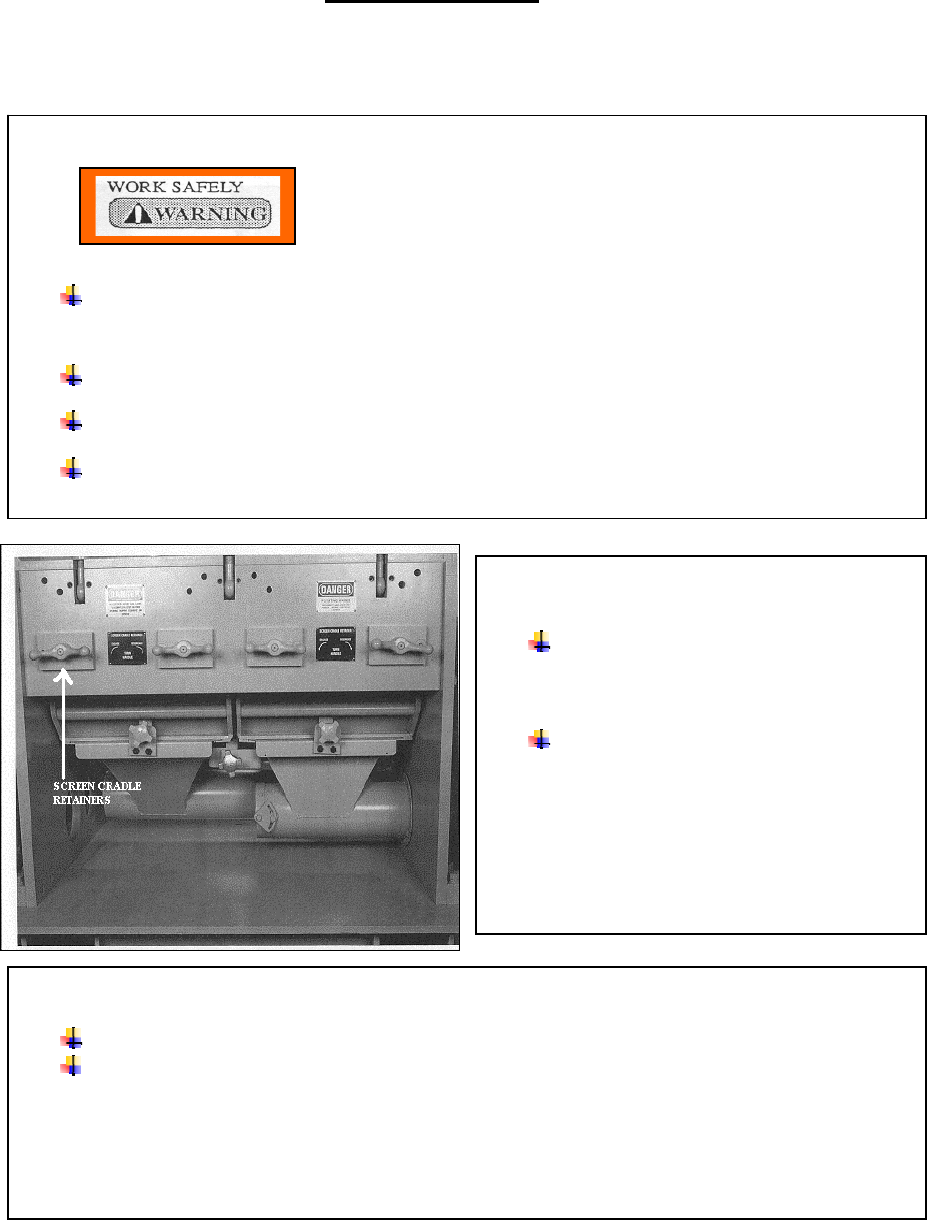

Screen Replacement
WORK SAFELY
TURN OFF AND LOCKOUT the power per OSHA 1910.147 OR ANSI Z244.1-1982
(Lockout/Tag-out of Energy Sources).
If it is not possible to lock out the power, have an electrician remove the fuses.
Make sure the rotor has come to a complete stop.
Wear safety gloves to protect against injury from the rotor and bed knives.
OPEN THE SCREEN CRADLE
INTERLOCK
Disengage the Interlock actuator screw
by turning the knob at the center of the
chute assembly counterclockwise.
Make sure the end of the actuator
screw is visible and clear of any contact.
When disengaged, the interlock opens the
electrical control circuit to the motor and
prevents the machine from running.
REMOVE THE DISCHARGE
Unscrew the knobs holding the right & left side discharge chutes.
Remove each chute by pulling them out toward the front of the machine.
