OPERATION
SECTION 5-3
Initial Startup
DISCHARGE AIR ADJUSTMENT

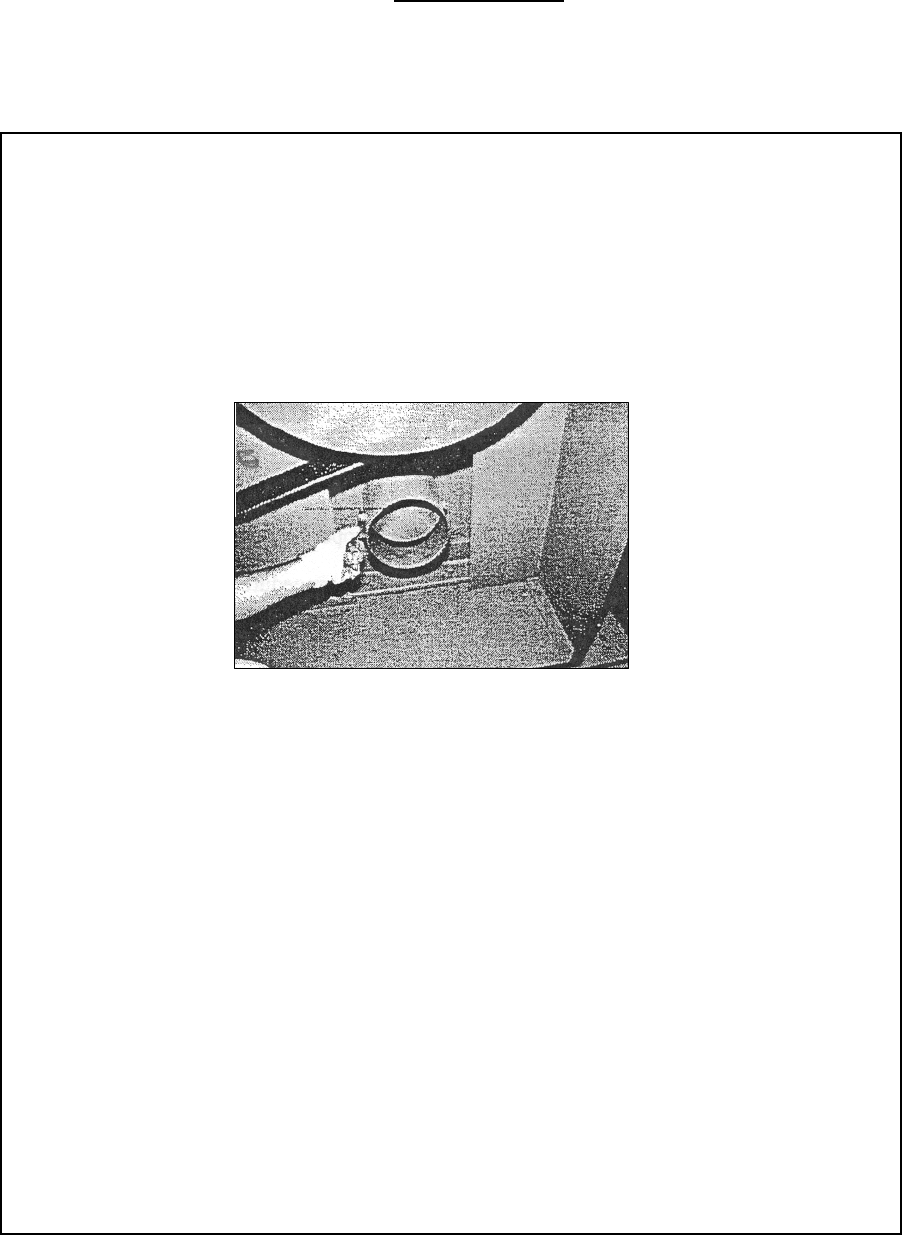

The discharge damper is located on the discharge transition. The damper controls the amount of
air that flows through the discharge transition and the discharge blower. Adjust it to obtain the
required discharge conveying velocity, while maintaining maximum airflow through the cutting
chamber.
