JSRLF Series

Low Flow Pressure Reducing Valves for Bio, Pharma and

High Purity Gas Application

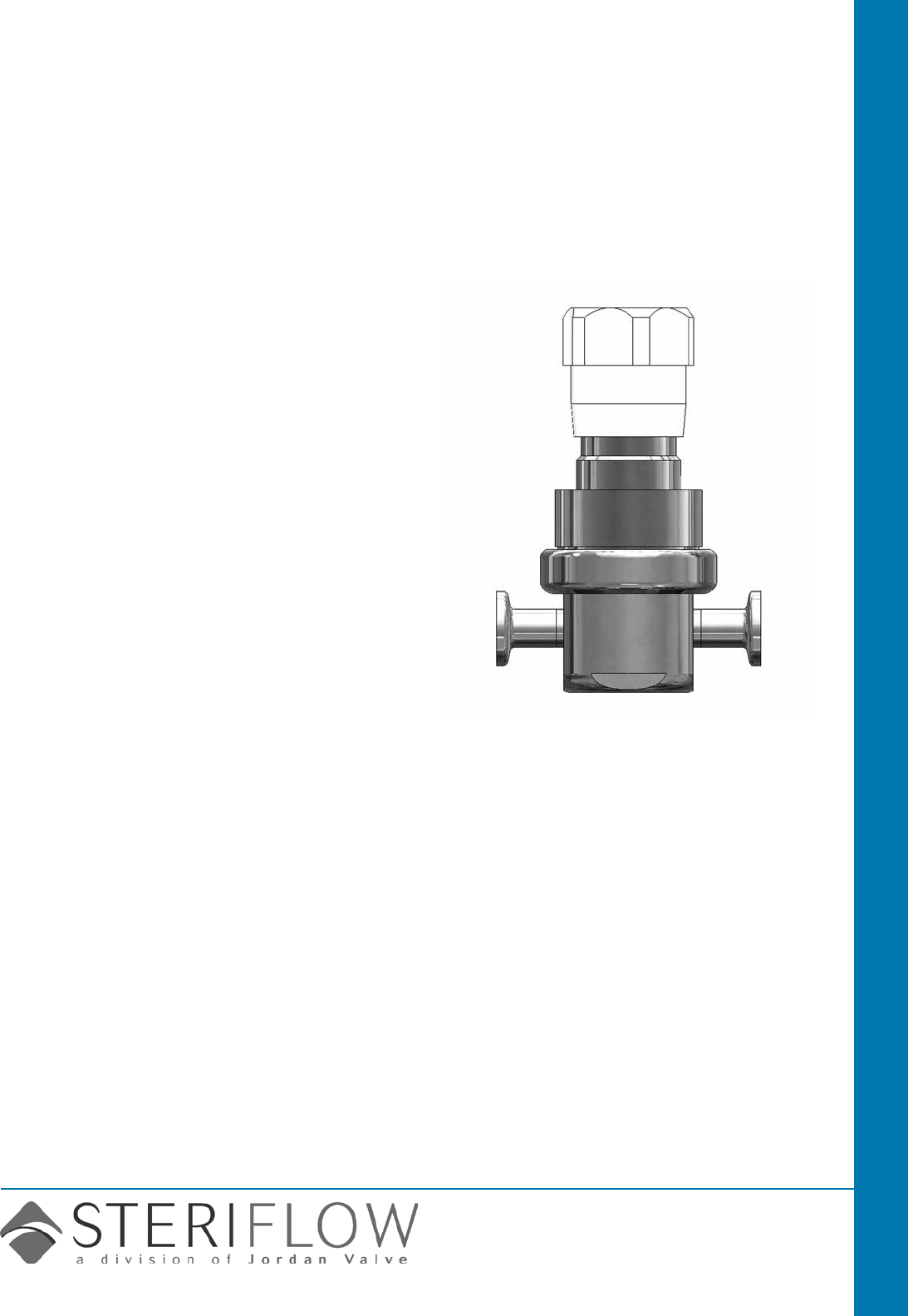

The Steriﬂow JSRLF Series line of low ﬂow pressure

regulators have the ability to handle very high pressures

and very low ﬂows. These valves are most often used in

biopharmaceutical and pharmaceutical research, and

production facilities for clean gas ﬂow regulation.

The durable valve body and metal trim components are

machined from ASTMA479 316L SST barstock. The

standard ﬁnish is ASME BPE SF5 (20Ra micro-inch,

electropolished), SF1 non-electropolished valves are

available. The valve is outﬁtted with the rugged Jorlon

diaphragm and Teﬂon or PEEK seats and seals that are

all FDA approved, USP Class VI compliant materials.

These materials of construction enable J-Pure to with-

stand the rigors of SIP and CIP processes if required.

Features

• Top entry design facilitates in-line cleaning and

maintenance

• Barstock construction guarantees material

integrity and quality surface ﬁnish

• Four Cv's between 0.01 and 0.2 and six spring

ranges guarantees a valve that will ﬁt your

application

• Optimized internal volume

• Proprietary Jorlon diaphragm material provides

exceptionally long life

• Soft seat material for ANSI Class VI shutoff

• Can be used on continuous clean steam, and on

non-cavitating ﬂuids.

Documentation

The following documentation is shipped with each

order:

• Steriﬂow Unicert

— Traceable Material Heat Number for body and

ferrules

— Certiﬁcate of Compliance to FDA and USP

Class VI

— Certiﬁcate of Surface Finish

• Final Test Reports and Certiﬁcate of Origin avail-

able upon request at time of order

surFace Finish

• ASME BPE SF5 (20 Ra µin (0.5 Ra μm), electropo-

lished) — standard for all external and wetted

metal parts

• ASME BPE SF1 (20 Ra µin) mechanical ﬁnish,

non-electropolished and other ﬁnishes available

• O

cleaning — optional

applications

Ideal for biopharmaceutical and pharmaceutical

research and production facilities and equipment for

clean gas ﬂow regulation.

• High purity purge, or blanket gas

• Sparge pressure regulation

• Motive force for ﬂuid movement

• Clean air, N

, CO

, O

, AR

Sanitary Valves JSRLF Series Low Flow Gas Reducing Valves

Summary of content (9 pages)

PAGE 1
Low Flow Pressure Reducing Valves for Bio, Pharma and High Purity Gas Application The Steriflow JSRLF Series line of low flow pressure regulators have the ability to handle very high pressures and very low flows. These valves are most often used in biopharmaceutical and pharmaceutical research, and production facilities for clean gas flow regulation.
PAGE 2
JSRLF Series Low Flow Pressure Reducing Valve Specifications Surface Finish: • ASME BPE SF5, 20 Ra, µin (0,5 Ra, µm) electropolish standard • ASME BPE SF1, 20 Ra, µin, (0,5 Ra µm), non-EP is optional, as are other finishes Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15) End Connections: Tri-Clamp, Tube Weld End and NPT Soft Seat Materials for ANSI Class VI Shut-off • PTFE to +252°F (122°C) continuous or 275°F (135°C) intermittent [not to exceed 15 min.
PAGE 3
JSRLFLP Series Low Flow Low Pressure Reducing Valve Anti-Tamper Option Acorn nut cover Allen/socket head stem adjustment Lock nut Internal View 1. Adjust stem position with Allen wrench 2. Tighten lock nut against bonnet while holding stem position 3.
PAGE 4
JSRLF Series Low Flow Pressure Reducing Valve Features & Benefits Fine thread pitch for precision setpoint adjustments.
PAGE 5
JSRLF Series Low Flow Pressure Reducing Valve Dimensions Ø2.31 (58,7) • JSRLF Series with Tri-Clamp Ends, Inches VALVE SIZE 1/2" 3/4" A 3.81 3.81 WEIGHT, LBS 4.2 4.2 4.20 (106,7) 5.03 (127,8) • JSRLF Series with Tri-Clamp Ends, Metric VALVE SIZE DN15 DN20 A A 96,8 96,8 WEIGHT, KG 1,9 1,9 Ø2.31 (58,7) • 5.03 (127,8) VALVE SIZE 1/2" 3/4" 4.37 (111,0) • Ø2.31 (58,7) • • ØA -5- A 96,8 96,8 WEIGHT, KG 1,9 1,9 A 2.00 2.00 2.75 WEIGHT, LBS 3.4 3.4 4.
PAGE 6
JSRLF Series Low Flow Pressure Reducing Valve Trim Flow Graphs To select a valve with the proper Cv: 1. Convert pressure and flow units to those shown on the graphs below. 2. Select the graph below with a flow range (horizontal axis) that encompasses the minimum and maximum flows of your installation, and with an appropriate outlet regulated pressure (vertical axis). Also make sure that the application inlet pressure is covered by the graph (P1 legend box at bottom right of each chart).
PAGE 7
JSRLF Series Low Flow Pressure Reducing Valve Trim Flow Graphs • 0.08 Cv — 5 – 50 psi Spring Range 30 Regulated Pressure (PSI) 25 20 P1=100 PSI P1=250 PSI P1=1000 PSI P1=2000 PSI 15 10 5 0 0 100 200 300 400 500 Flow (SCFH) • 600 700 800 0.08 Cv — 50 – 150 psi Spring Range 120 Regulated Pressure (PSI) 100 80 60 40 P1=250PSI P1=1000PSI 20 0 0 200 400 600 Flow (SCFH) 0.
PAGE 8
JSRLF Series Low Flow Pressure Reducing Valve Trim Flow Graphs • 0.2 Cv — 5 – 50 psi Spring Range 30 Regulated Pressure (PSI) 25 20 JR = 100 PSI 15 CM* = 100 PSI JR = 250 PSI 10 CM* = 250 PSI 5 JR = 1000 PSI CM* = 1000 PSI 0 0 100 200 300 0 400 500 600 800 0.
PAGE 9
JSRLF/0714/AB JSRLF Series Low Flow Pressure Reducing Valve Ordering Schematic Model Size — JSRLF Material — 1 & 2 3 & 4 5 & 6 7 & 8 9 & 10 11 & 12 13 & 14 Model Low Flow Pressure Reducing Valve Size 025 038 050 Material ASTM A479, 316L Body Feature End Connection Port Configuration A FNPT, 1/4" A Port "A" B FNPT, 3/8" B Port "B" C FNPT, 1/2" C Port "C" T ASME BPE Tri-Clamp, 1/2" D Port "D" W ASME BPE Tube Weld, 1/2" E Port "E" ISO Tri-Clamp, DN15 S1 DIN Tri-Clamp, DN15 D2 DIN Tube Weld, DN15
