Full Product Manual

[e-mail]
2
1-800-348-5004
SPECIFICATIONS
IMPORTANT SAFETY RULES
1. DO NOT EXCEED 300PSI incoming air pressure (from compressor).
2. Wear impact-resistant eye protection that meets ANSI Spec. Z87 .1 in work area at all times.
3. Do not release hose when rewinding. Hold hose end and allow hose to rewind slowly.
4. Never allow children to use hose reel. Keep children clear of work area at all times.

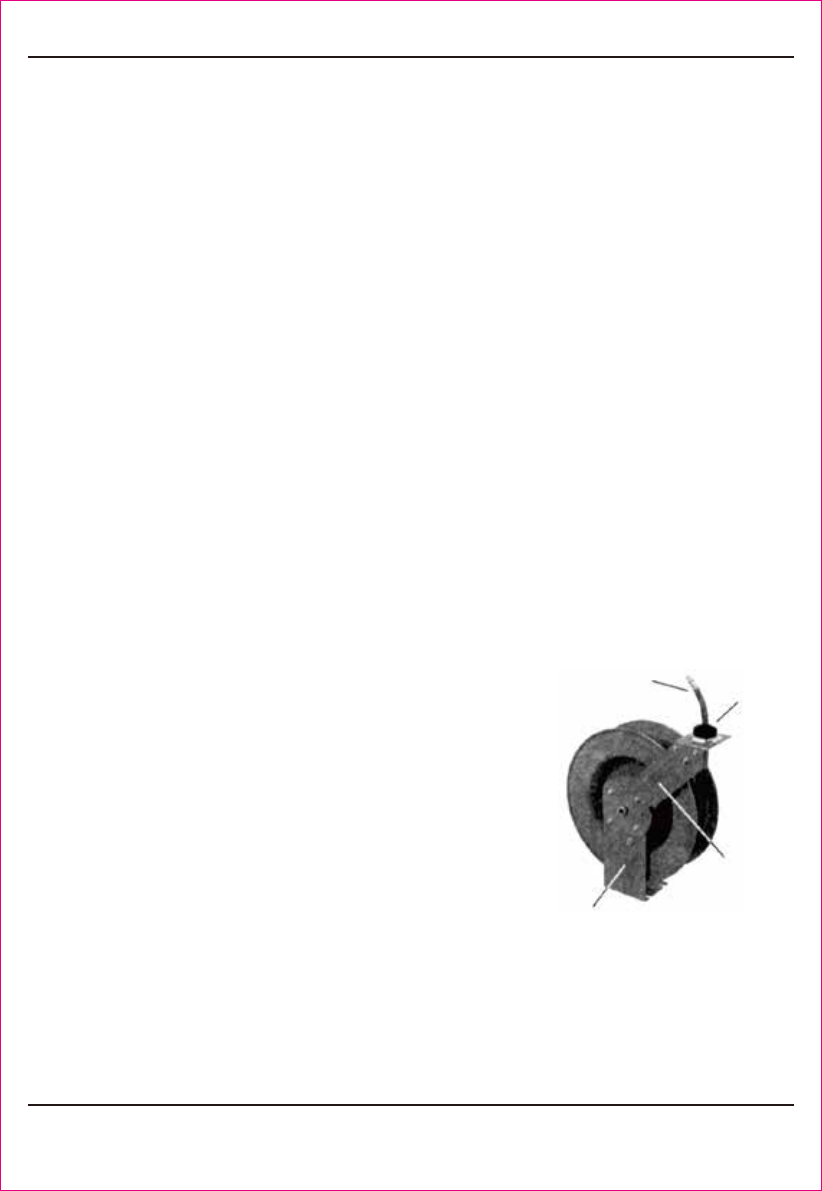

INSTALLING HOSE REEL
Outlet
Hose
Hose
Stopper
Guide
Arm
Mounting
Base
Note: Mounting hardware is not included and must be purchased
separately. Decide first where reel will be mounted before
purchasing hardware. Different mounting positions require
different types of hardware.
Reel can be mounted on the floor, ceiling, or wall, wherever
it is convenient. When choosing a location. remember that
you can mount reel to a load-bearing structural member
capable of supporting combined weight of reel, hose, and
forces caused by pulling or maneuvering hose. Generally,
mounting reel near air compressor is best since you can
connect the two with a shorter, less expensive length of
hose. Also, air compressor controls will be nearby for
convenient adjusting.
Once you have located a mounting spot, consult the “Typical
Mounting Positions” chart below and choose the diagram that
most closely matches your mounting position. If necessary,
adjust guide arm position to match diagram.
• Spring driven, automatic rewind, wit locking ratchet mechanism
(eight locking positions per revolution).
• Brass connectors on hose and reel
• Air hose size: 3/8” x 25FT
• Reel air inlet (F): 1/4” NPT
• Air hose outlet (M): 1/4” NPT
• Maximum pressure: 300 PSI
• Maximum air flow: 25 CFM
Read and understand entire manual before assembling or using hose reel.
Failure to follow instructions or warnings could result in personal injury
and/or proper damage.
