SYSTEM CONNECTIONS
CAUTION: All connections and switching must be done with the amplier’s power switch positioned to ‘Off’ (LED will be
RED). Connect the power cord last to be sure that the amplier is off during all of your connections and set up.
INPUTS
For line level connections, use high-quality RCA cables that feature low impedance, shielding and high-quality connectors.
SPEAKER OUTPUTS
Use 14-18 gauge stranded two-conductor loudspeaker wire for all high level connections. At each loudspeaker-level connection, ensure
that at least 2 inches of each conductor are separated. Strip away 1/4 inch of insulation from each conductor. Connect the appropriate
conductor to each screw terminal, observing correct polarity.
+
-

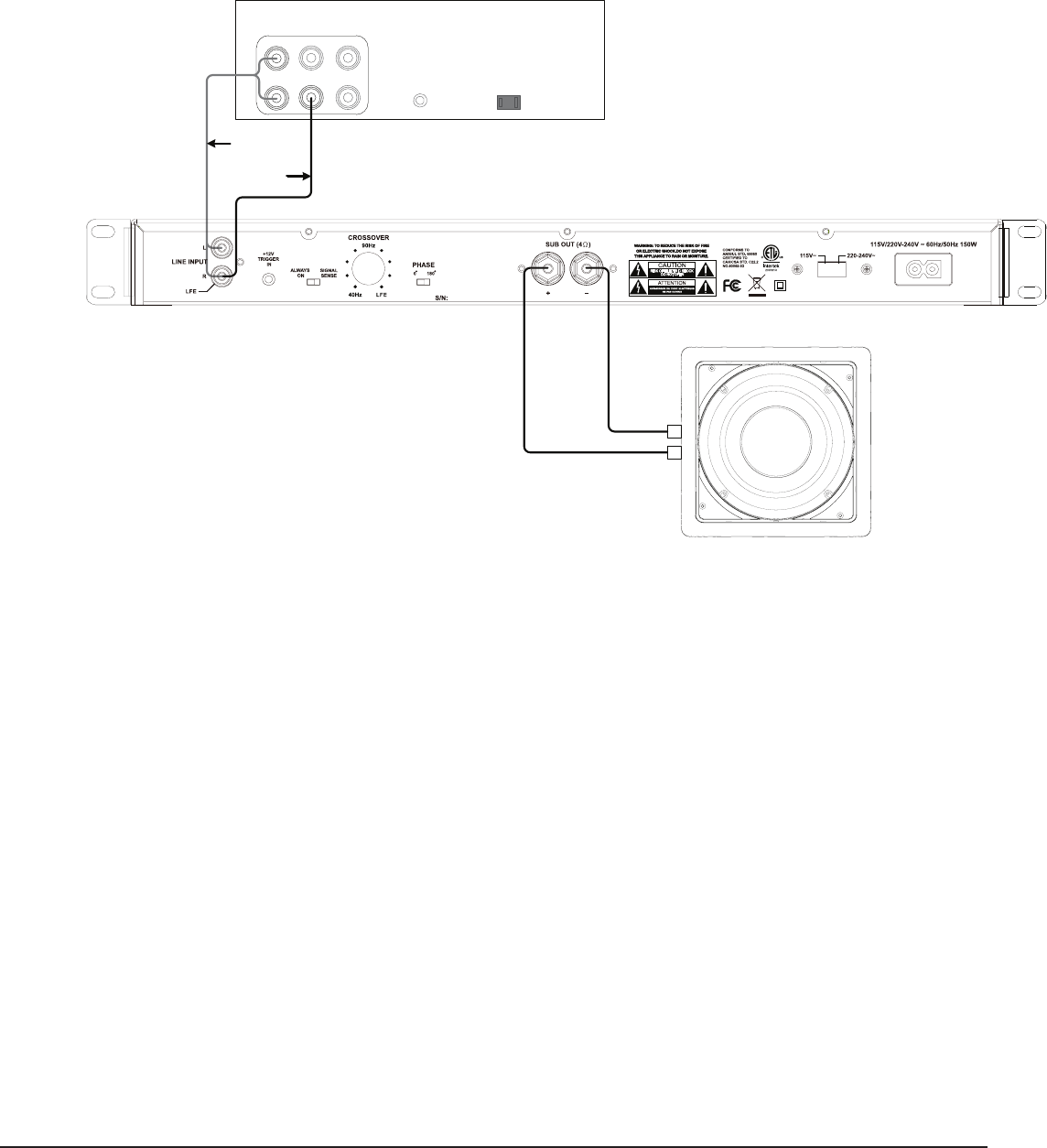

EA-AMP-SUB -1D-110
AV Receiver
LS
RS
SUB
CEN
L
R
Switched
Outlet
+12V Trigger
Out
Le & Right
Preamp Out
or
LFE Sub Out
