EA-AMP-SUB-1D-110 Installation and Users ManualEA-AMP-SUB-1D-110 Installation and Users Manual
INSTALLATION – FIRST STEPS
POSITIONING YOUR EPISODE AMPLIFIER
Episode ampliers are designed to help deliver a great audio experience that makes your music come alive for years to come.
However, where you place the amplier can have a large effect on the performance that you receive and the life of the unit.
• Be sure that the unit is in a well-ventilated area that provides adequate cooling.
• Do not block the cooling vents located on both sides of the unit.
• Do not place the unit on carpeting or any similar material.
• Do not install the unit near a source of heat, or in an extremely humid or wet location.
• If your installation lacks good air ow (such as solid cabinet doors or wall-mounted racks), it may be necessary to
create ventilation to allow outside air into the space.
• Allow a minimum of 5” of free air space above the unit.
• Allow a minimum of 3” of free air space on either side of the unit. (Does not apply to rack mounting)
VENTILATION
Do not block ventilation holes, or impede air ow by placing objects on or
around the amplier. Do not place the amplier on carpeting or any similar
material. Do not install the amplier near a source of heat, or in an
extremely humid or wet location.
RACKMOUNT INSTALLATION
1. Remove the amplier’s four feet from the bottom of the chassis.
2. Attach the included rack-mount ears to the front sides of the amplier chassis.
3. Securely mount the amplier into the 19” equipment rack. The amplier will
occupy 1U of rack space.
4. Even though the amplier produces very little heat, it is always wise to leave
ventilation between components.

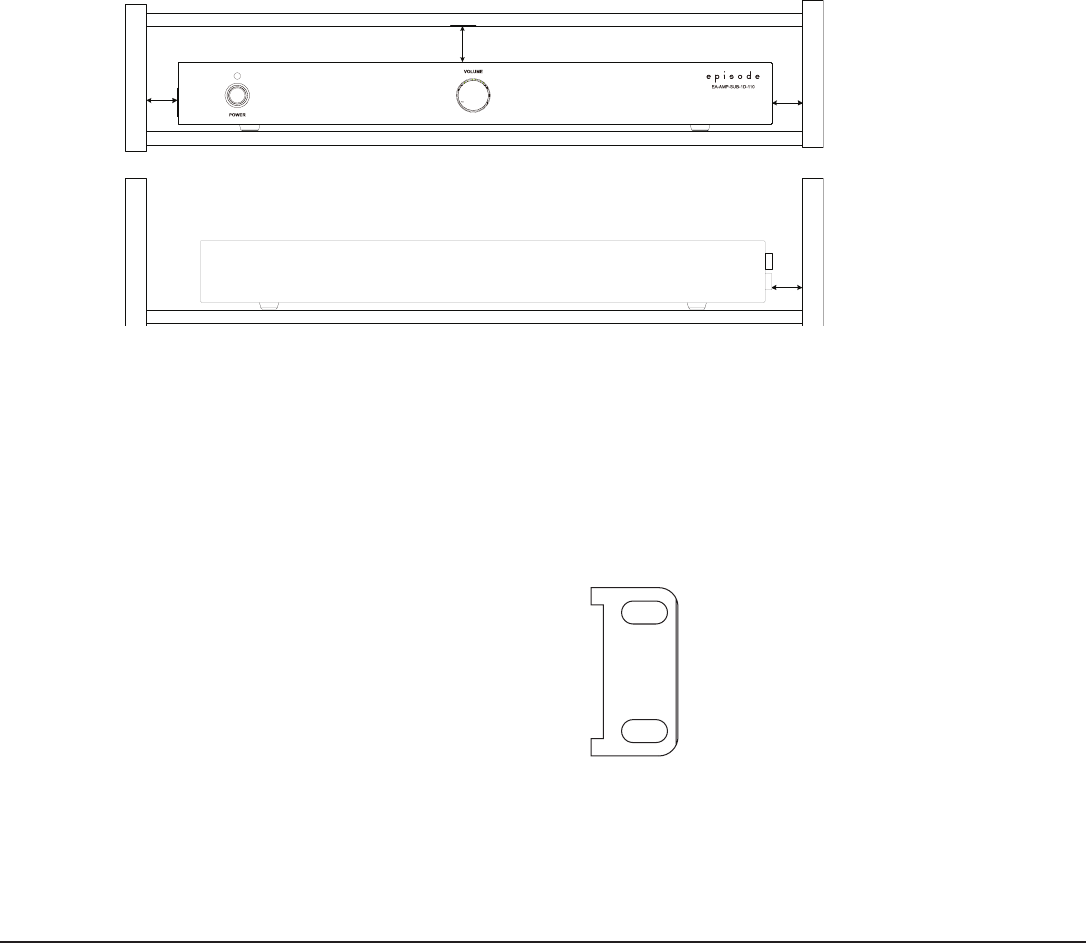

3"
3"
5"
Minimum of 3" free air space
on each side.
Minimumof2”of depthbehind
unit to accommodate cables
and connectors.
2"
Minimum of 5" of free air space above.
When placing on a cabinet shelf, position the unit with all feet resting on a solid level surface.
Allow a minimum of 2” of depth behind unit to accommodate cables and connectors
