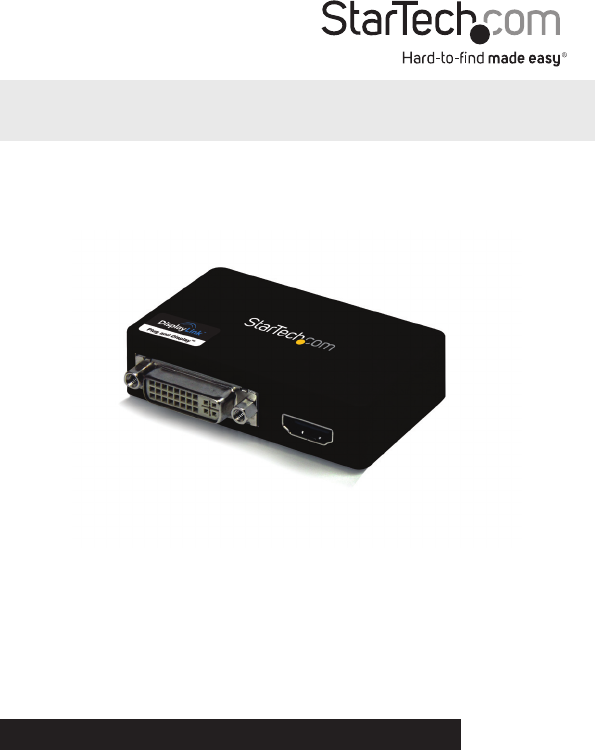

USB 3.0 Dual Head Graphics Adapter HDMI® and DVI-I USB32HDDVII *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Table of Contents Introduction.............................................................................................1 Packaging Contents.................................................................................................................................. 1 Recommended System Requirements............................................................................................... 1 Installation..............................................................................................
Introduction The USB32HDDVII USB 3.0 to HDMI® and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI®output, with support for high-definition 1080p and 1920x1200 video and 5.1 surround sound audio (from HDMI®port only). The adapter delivers a convenient external video solution that makes it easy to add multi-monitor capability to a USBenabled desktop or laptop computer (optimal performance from USB 3.
Installation Driver Installation Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. 2. Locate the Setup.exe application. This file will be located in the root directory of the Driver CD (e.g. D:\) or downloaded file. 3. Executing the Setup.exe application will launch the following screen.
Hardware Installation 1. Once DisplayLink Core Software screen has disappeared Connect your USB32HDDVII device via the USB cable to your PC. 2. The system will initiate driver and software application (the DisplayLink Software Configuration screen may flash or go black during the install). *Some machines may require a system reboot for the USB Display Adapter to initialize. 3. Connect your HDMI® and/or DVI monitor(s) to the available HDMI® and/or DVI ports on the USB32HDDVII device.
Configuring the USB Video Adapter When devices are attached, an icon appears in the taskbar. This gives you access to the DisplayLink® manager menu. 1. From the taskbar, click the Show hidden icons arrow to show all available icons. 2. Click the DisplayLink® icon. Two options will be displayed 2.UHD-100 DP and 3.UHD-100 DP. These represent each available display (HDMI® or DVI). Selecting either display will extend a sub menu with the configurable options for the respective display.
Extend The monitor(s) attached to the USB32HDDVII USB Graphics adapter display an extension of the user’s active Windows desktop. The extra desktop area is a great productivity aid, allowing more applications or documents to be visible at a time. The device is now extended in the direction it was the last time the display was in this mode. For more control, use the Extend To submenu and select one of the options.
Extend To This option allows you to specify the physical location of the monitor connected to the USB32HDDVII in relation to the systems on board monitor. Screen Resolution This option allows you to change the resolution on the monitor connected to the USB32HDDVII device. Simply select the desired option from the list of supported resolutions displayed in the sub menu. Screen Rotation This option allows you to change orientation in which the screen is viewed.
Specifications (Cont’d) Color Black Enclosure Type Plastic Audio Yes Maximum Digital Resolutions 2048x1152 Memory 1GB DDR II OS Compatibility Windows®7 (32/64bit)* Aero 3D interface supported DVI-I (DVI Digital/Analog) Output Signal HDMI® Industry Standards Standard HDMI®, DVI-I, SuperSpeed USB 3.0, USB 2.
Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. For the latest drivers/software, please visit www.startech.com/downloads Warranty Information This product is backed by a two year warranty. In addition, StarTech.
