User Guide

11. Repeat steps 4 to 8 for each additional computer that you want to
connect to the KVM switch. Leave the computer in focus until you make
sure that the mouse and keyboard can control the computer in step 8.
How can I identify which DVI video connection I have or need?
Digital Visual Interface (DVI) is a video display interface that can contain
different types of signaling, based on the application. DVI cables and ports are
created using different connector types to identify what application they are
intended to be used in. The connector types are identified by the number of pins
on the DVI connector. DVI comes in the following five different connector types:

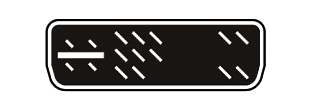

 DVI-A (17 pin).

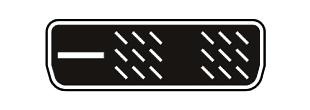

 DVI-D Single Link (19 pin).

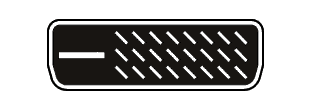

 DVI-D Dual Link (25 pin).

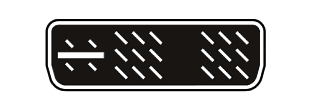

 DVI-I Single Link (23 pin).

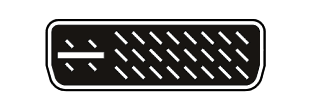

 DVI-I Dual Link (29 pin).
Single and Dual link DVI indicate the maximum resolution capabilities of the
video source or video destination. The maximum resolutions are Single Link
(1920 x 1080 @ 60Hz) and Dual Link (2560 x 1600 @ 60Hz).
Note: The maximum resolution of your video source and video destination are
ultimately determined by the technical specifications of the devices. The
connector type is not a definitive indicator of the maximum resolution.
DVI-A carries only analog (for example, VGA) with no digital component. DVI-D
carries only digital video (for example, HDMI) with no analog component. DVI-I
combines DVI-A and DVI-D connections to include both analog and digital
components. A DVI-I port may be on either your video source or display, but
