Operating Controls and Functions

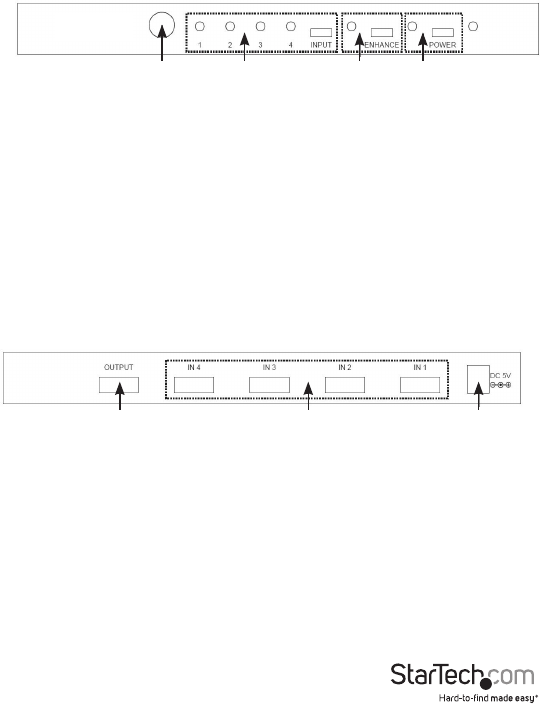

Front Panel
1. Remote control sensor
2. Input select/Indicators: Press the “INPUT” button repeatedly to switch
to your desired input source and the LED will illuminate to indicate
which input source is selected.
3. Signal Enhancement/Indicator: Press the “Signal Enhance” button
to turn on this feature to improve signal quality after long distance
transmission. Press again to turn o. The LED will illuminate when the
signal is enhanced
4. POWER Switch/Indicator: When the power supply is connected to the
system, the system will automatically to turn on and the power LED will
illuminate. Press the “POWER” button to turn on/o the system
Rear Panel
1. HDMI output: Connect the HDMI out of the unit to the HDMI input of
your display using an HDMI cable
2. HDMI Inputs: Connect each of the input ports to the HDMI or DVI
output of your source equipment such as DVD player or set-top-box
3. Power: Plug the 5V DC power supply into this unit and connect the
adapter to an A/C wall outlet.
1 2 3 4
1 2 3
