Quick Start Guide

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
I T: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
P T: Guia do usuário - pt.startech.com
Manual Revision: 07/24/2015
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
1 x wall mount rack
16 x assembly screws
32 x M5 screws
32 x M5 cage nuts
8 x truss head screws
1 x installation guide
RK812WALLOA

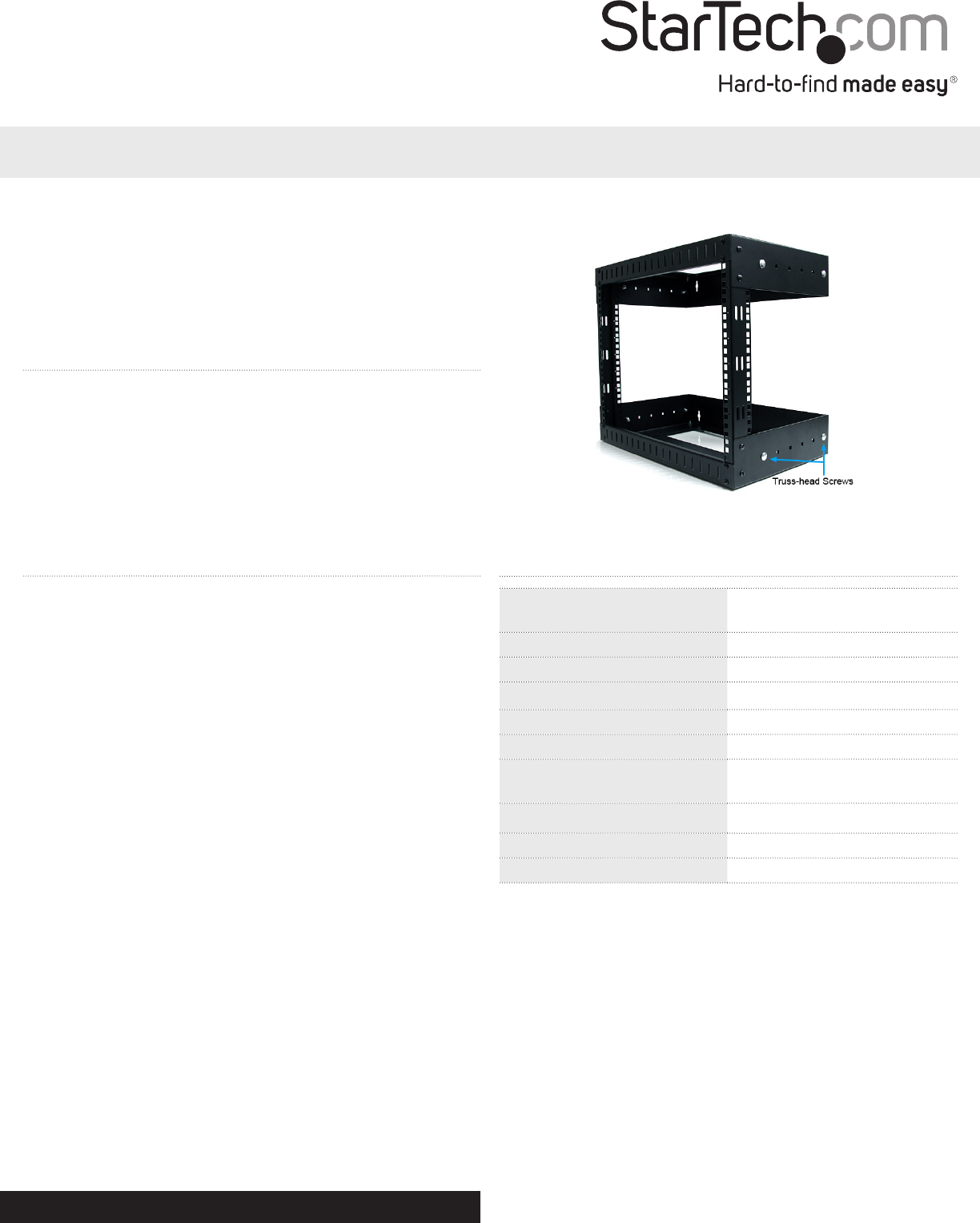

8U Adjustable Depth Open Frame Wall Mount Equipment Rack
*actual product may vary from photos
Installation
1. To adjust the depth of the rack, remove the nuts holding the silver
Truss-head screws from the sides and top/bottom, then slide the
front and rear sections of the rack apart. Set to the desired depth,
then re-install the silver Truss-head screws.
2. To ax the RK812WALLOA to a wall, there are 4 anchor points on
the rear of the rack. Please use the appropriate screws or bolts for
mounting heavy equipment to your specic type of wall. Please
observe proper safety procedures and use the appropriate tools.
3. To install rack mountable equipment into the RK812WALLOA, use
the provided square cage nuts to provide the mounting points,
then use the provided cabinet screws to secure the equipment to
the cage nuts.
Specications
Description
8U Open Frame Wall Mount
Rack- Adjustable Depth
Material SPCC (2.0mm)
Color Black
Internal Mounting Height 8U
Maximum Weight Capacity 80 kg
Min/Max Mounting Depth 12in / 20in
External Dimensions (HxWxD)
495.0mm x 535.0mm x 335.0 /
510.0mm
Net Weight 10.82kg
Standards EIA-310D
Certications UL/CE/RoHS
