Product Overview
LED Indicators
LED State Indication
Status Blinking for POST (Yellow)
When power is connected, the Status
indicator will ash ve times, and then
go solid.
100Mbps On (Green)
LAN Port has a valid network connection
at 100Mbps.
10Mbps On (Yellow)
LAN Port has a valid network connection
at 10Mbps.

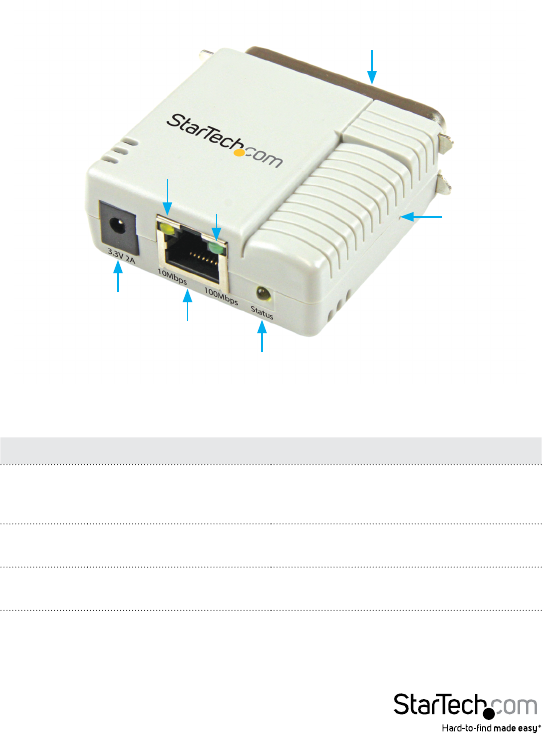

DC Jack
Ethernet
Port
Status LED
10Mbps
Indicator
100Mbps
Indicator
Reset Button
Centronics Printer
Connector
