Instruction manual

Instruction Manual
6

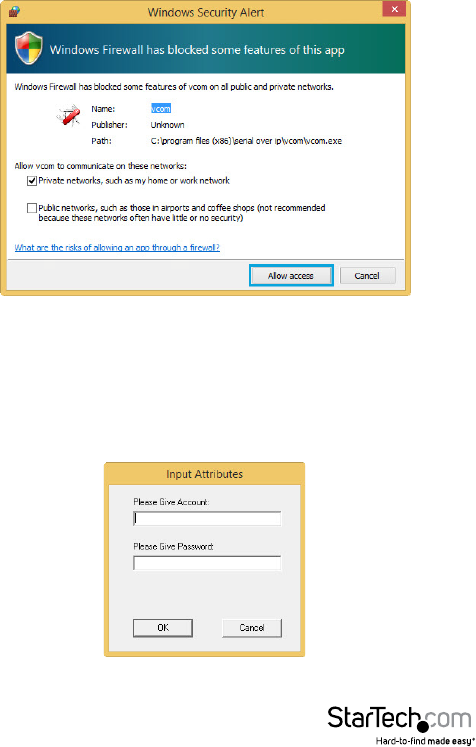

3. If required, allow access to the software through the Windows Firewall by clicking
the “Allow access” button.
4. Once the device is found, congure the PC to the same IP domain by clicking the
“Congure” button. The default IP address of the device is “192.168.1.1”.
Note: The default Gateway Address is “192.168.1.254”.
5. In the “Input Attributes” dialog, enter the following:
• Account Name: admin
• Password: 00000
6. Once the device is connected, the “Congure Dialog” will open to set your desired
IP settings.
