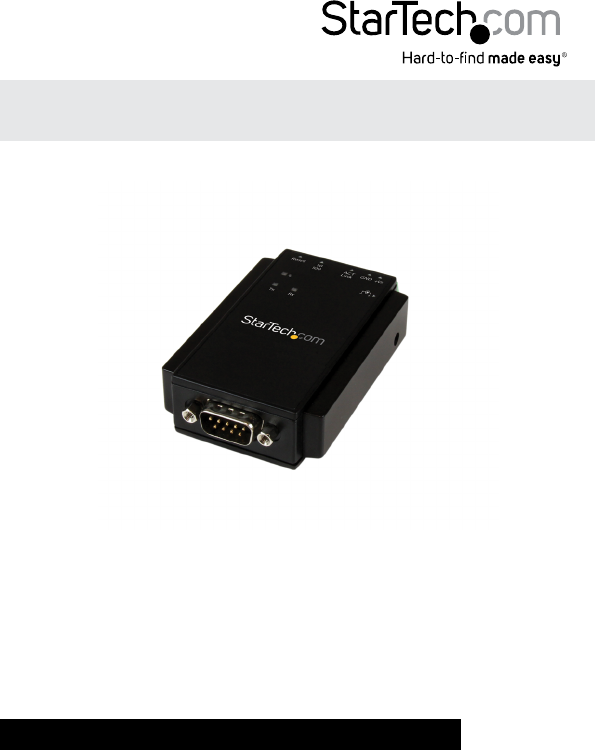

Port RS232 Serial over IP Device Server NETRS232 *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Table of Contents Introduction.............................................................................................1 Packaging Contents.................................................................................................................................. 1 System Requirements............................................................................................................................... 1 Product Diagram.......................................................................
Introduction Packaging Contents • 1x Serial over IP Device Server • 1x DIN Rail Kit • 1x Universal Power Adapter (NA/UK/EU) • 1x Software CD • 1x Quick Start Guide System Requirements • RJ45 terminated Cat5 or higher Ethernet cabling • 10/100Mbps compatible Ethernet network • Windows® 8 / 8.
Product Diagram Front View Power LED Transmit LED Receive LED Power Jack (10~30V DC) DB-9 Serial Port Rear View RJ45 10/100 Port Terminal Block (10~30V DC) Instruction Manual 2
DB-9 Connector Pinout 1 5 6 9 Pin 1 DCD Pin 2 RXD Pin 3 TXD Pin 4 DTR Pin 5 GND Pin 6 DSR Pin 7 RTS Pin 8 CTS Pin 9 RI PIN Define 1 TX+ RJ-45 Connector Pinout Instruction Manual 3 2 TX- 3 RX+ 6 RX-
Installation Hardware Installation DIN-Rail Bracket: Follow the below procedure to install the DIN-Rail bracket to the RS232 device server. 1. Remove the included DIN-Rail bracket, and screws from the package, and align the DIN-Rail bracket flush onto the back of the device server. 2. Align the bracket’s mounting holes with that of the device servers pilot holes, and secure the bracket to the device server with the two included screws.
Software Installation 1. Connect the device server’s RJ45 interface to your Local Area Network (LAN). Note: Alternatively, you can also use a crossover cable to connect the device server directly to your system for the initial configuration. 2. Insert the provided CD into your DVD/CD-ROM drive. 3. Browse to the folder “\VCOM driver” and execute the “vcomsetup.exe” installer. 4. Follow the on-screen instructions to complete the installation of the VCOM and WinPcap software.
3. If required, allow access to the software through the Windows Firewall by clicking the “Allow access” button. 4. Once the device is found, configure the PC to the same IP domain by clicking the “Configure” button. The default IP address of the device is “192.168.1.1”. Note: The default Gateway Address is “192.168.1.254”. 5. In the “Input Attributes” dialog, enter the following: • Account Name: admin • Password: 00000 6.
7. Once your settings have been customized, click the “OK” button at the bottom of the screen.
Specifications Interface Serial Industry Standards IEEE 802.3, IEEE 802.3u Ports 1 Connectors 1x DB-9 (9 pin; D-Sub) Male 1x RJ-45 Female 1x Terminal Block (2 wire) 1x DC Power Auto MDIX Yes Compatible Networks 10/100 Mbps Data Bits 5, 6, 7, 8 Flow Control RTS/CTS, None Max Baud Rate 230.4 Kbps Parity None, Even, Odd, Space, Mark Remote Management Ability Yes Serial Protocols RS-232 Stop Bits 1, 2, 1.
Power Input Terminal Block: 10~30V DC (2 wire) DC Jack: 10~30V DC 3.5mm Power Consumption 1.45W Max Enclosure Material Plastic Operating Temperature 0°C to 60°C (32°F to 140°F) Storage Temperature -10°C to 70°C (-14°F to 158°F) Humidity 0~90% RH Product Weight 2.29 oz (65 g) Compatible Operating Systems Windows® 8 / 8.
Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. For the latest drivers/software, please visit www.startech.com/downloads Warranty Information This product is backed by a two year warranty. In addition, StarTech.
