3.5” Bay 2.
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Instruction Manual Table of Contents Introduction ................................................................................... 1 Package contents.........................................................................1 Installation and Usage................................................................... 2 Hardware Installation....................................................................2 Drive Installation...........................................................................

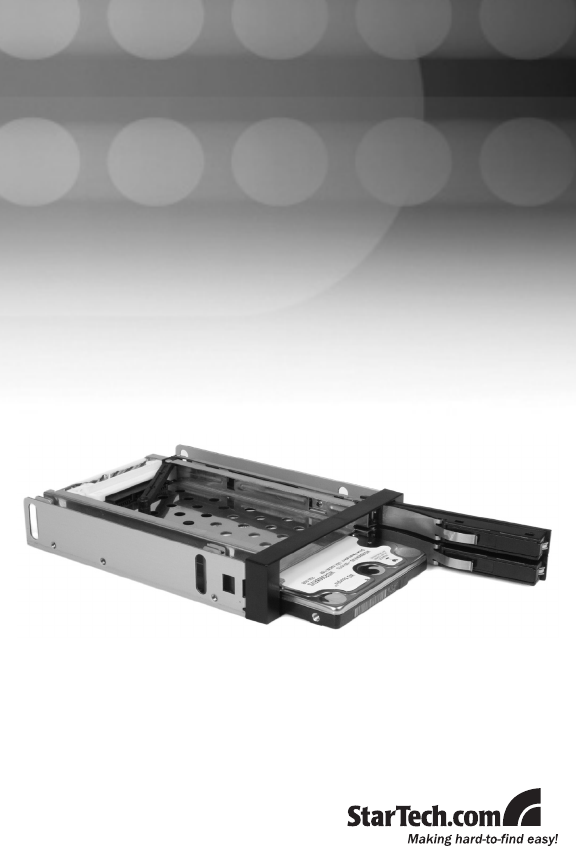

Instruction Manual Introduction Thank you for purchasing a StarTech.com 3.5” Dual SATA Hard Drive HotSwap Bay - the ideal solution for simplifying drive removals and insertions as part of the system building process. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the HSB220SAT25B Dual SATA Hard Drive Hot-Swap Bay provides everything you need to expedite important projects.
Instruction Manual Installation and Usage Hardware Installation (4-pin) LED Connector (15-pin) SATA Power Connector (7-pin) SATA Data Connector To prepare HSB220SAT25B for installation within the computer: 1. Connect the 15-pin SATA Power Connector and 4-pin LED connector (provided by an included LP4-to-4-pin LED/15-pin SATA Power Y-cable) to the appropriate ports on the rear panel of HSB220SAT25B, as shown above.
Instruction Manual 3. Ensuring the computer is powered down, remove the slot cover from a 3.5” floppy drive bay on the host computer. 4. Gently, slide HSB220SAT25B into the now vacant 3.5” floppy drive bay, threading the connected cables through the opening, until the front panel of HSB220SAT25B is flush with the computer case front panel. 5.
Instruction Manual Please note: It is essential that the drive be positioned properly within the drive bay. Attempting to install a drive with its interface improperly aligned with the drive bay interface could cause serious damage to both the drive and the drive bay. 2. Position a 2.5” SATA hard drive so that the SATA interface is directed into one of the drive bays, label side up.
Instruction Manual Please note: It is strongly recommended that the computer be powered down when removing drives from HSB220SAT25B, as removing drives while in use can damage the drive and any data contained within. Drive Removal To remove a drive from HSB220SAT25B: 1. Open the front panel door by gently sliding the locking button from left to right. 2. Gently pull the door open to eject the drive partially, then pull the drive out from the enclosure: 3.
Instruction Manual Specifications Bus Type SATA II Supported Data Transfer Rate (Maximum) 3.0 Gbps (using SATA II drive) Supported Drive Form Factor 2.5” SATA/SATA II 2 x 15-pin SATA Power Female (external) 2 x 15-pin SATA Power Female (internal) Connector Types 2 x SATA 7-pin Data Female (external) 2 x SATA 7-pin Data Female (external) 2 x 4-pin LED Weight Dimensions (W x H x L) 270 g (9.53 oz ) 101 mm (3.98” ) x 25 mm (0.98”) x 123 mm (4.
Instruction Manual Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. Warranty Information This product is backed by a one-year warranty. In addition, StarTech.
