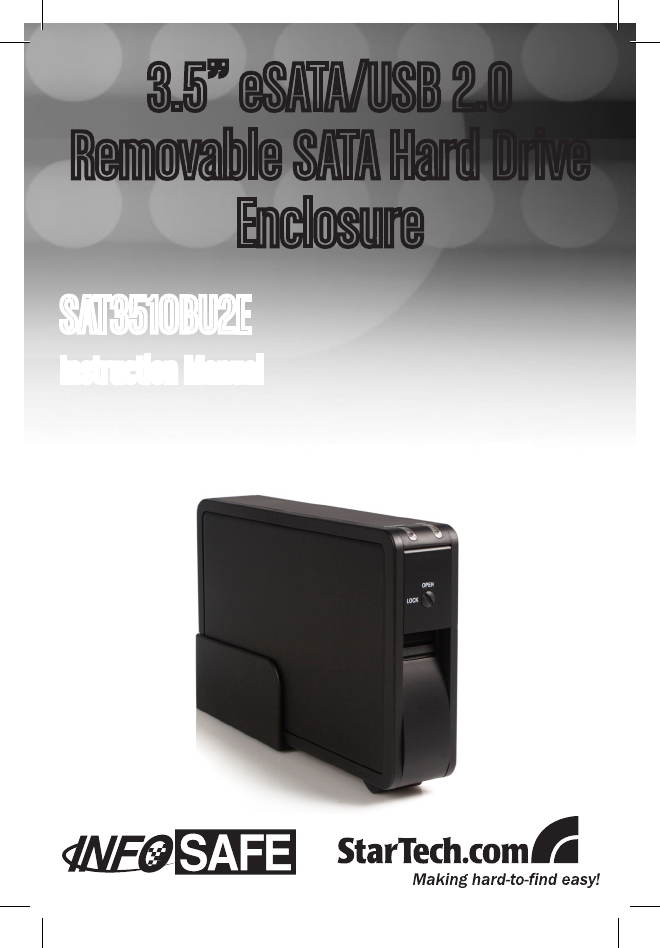

3.5” eSATA/USB 2.
FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Instruction Manual Table of Contents Introduction ..................................................................... 1 Package Contents........................................................................1 Hardware Guide................................................................ 2 Rear Panel....................................................................................2 Hardware Installation....................................................... 2 Inserting a Hard Drive...................
Instruction Manual Introduction Thank you for purchasing a StarTech.com InfoSafe 3.5” eSATA/USB 2.0 Removable SATA HD Enclosure. Supporting the latest generation of hard drive storage (up to 1TB SATA hard drives), this enclosure allows the use of any 3.5” SATA II (SATA /300) or SATA (SATA /150) and can be connected to a host computer using either eSATA or USB.
Instruction Manual Hardware Guide Rear Panel Power Button DC Power Adapter Input USB Output eSATA Output Fan Hardware Installation Inserting a Hard Drive 1. Unlock the keylock situated on the front of the SAT3510BU2E.
Instruction Manual 2. Lift the handle on the front panel and pull the front panel door out from the body (as shown below). 3. Place the hard drive into the SAT3510BU2E. The printed label on the hard drive should be on the right hand side, with the SATA connector on the lower half of the drive. 4. Push the door to slide the hard drive into place. Do not push the hard drive into the enclosure by hand, otherwise it may not be properly installed. 5.
Instruction Manual Removing a Hard Drive 1. Unlock the key lock. 2. Lift the handle on the front panel and pull the front panel door out from the body. 3. Carefully remove the hard drive from the enclosure.
Instruction Manual 4. Close the door. It is suggested that you lock the key lock. Recognizing the Hard Drive Windows XP USB 2.0 If you are using the USB 2.0 interface to connect the hard drive to your computer, no setup is required. Simply plug the hard drive into an available USB port and turn the power on to the SAT3510BU2E. When you open My Computer the drive should be visible under the heading Devices with Removable Storage.
Instruction Manual 1. Right-click My Computer and click Manage. 2. In the left pane, select Device Manager. 3. In the Device Manager window, click the “+” next to Disk Drives. Since the drive was not powered on during the boot up process, it should not yet be visible. 4. Turn on the SAT3510BU2E. Once the power indicator is illuminated, click the Scan button. 5. The Device Manager will scan for plug and play hardware.
Instruction Manual Windows Vista™ USB 2.0 If you are using the USB 2.0 interface to connect the hard drive to your computer, no setup is required. Simply plug the hard drive into an available USB port and turn the power on to the SAT3510BU2E. Open My Computer and the drive should be visible under the heading “Devices with Removable Storage.” eSATA If you are using the eSATA interface to connect the hard drive to your computer, there are two setup processes you can follow.
Instruction Manual 2. In the left pane of the Computer Management window, select “Device Manager.” 3. Turn on the SAT3510BU2E. Once the power indicator is illuminated, click the “Scan” button. Scan button 4. The Device Manager will begin an installation of the necessary driver software. Once it has completed the scan, your drive should be visible below the Disk Drives heading. Safe Drive Removal Ensure that any programs that have accessed the drive are closed.
Instruction Manual Specifications Specification Connector Types Chipset Data Transfer Rate SAT3510BU2E 1 x eSATA Plug 1 x USB B Female INIC 1611 3Gb/s (eSATA) 480Mbps (USB 2.0) Drive Capacity Support Up to 1 TB Drive Type Compatibility SATA 300 (SATA II) SATA 150 (SATA I) O/S Compatibility Windows 98SE, ME, 2000 XP, Vista™ Mac OS 8.6, 10.
Instruction Manual Technical Support StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. Warranty Information This product is backed by a one year warranty. In addition, StarTech.
