User's Manual

ManualsBrandsSTARIAN TECHNOLOGY ManualsBaby MonitorsBaby Monitor

INSTRUCTION MANUAL

Model

：

ABM1117/1147

1. Packing List

a) 1 x PU (PARENT) Receiver

b) 1 x BU (BABY) Transmitter

c) 2 x AC adaptors (5V/550mA )

d) 3 x 1.5V AAA Alkaline battery (not included)

e) 1 x User Manual

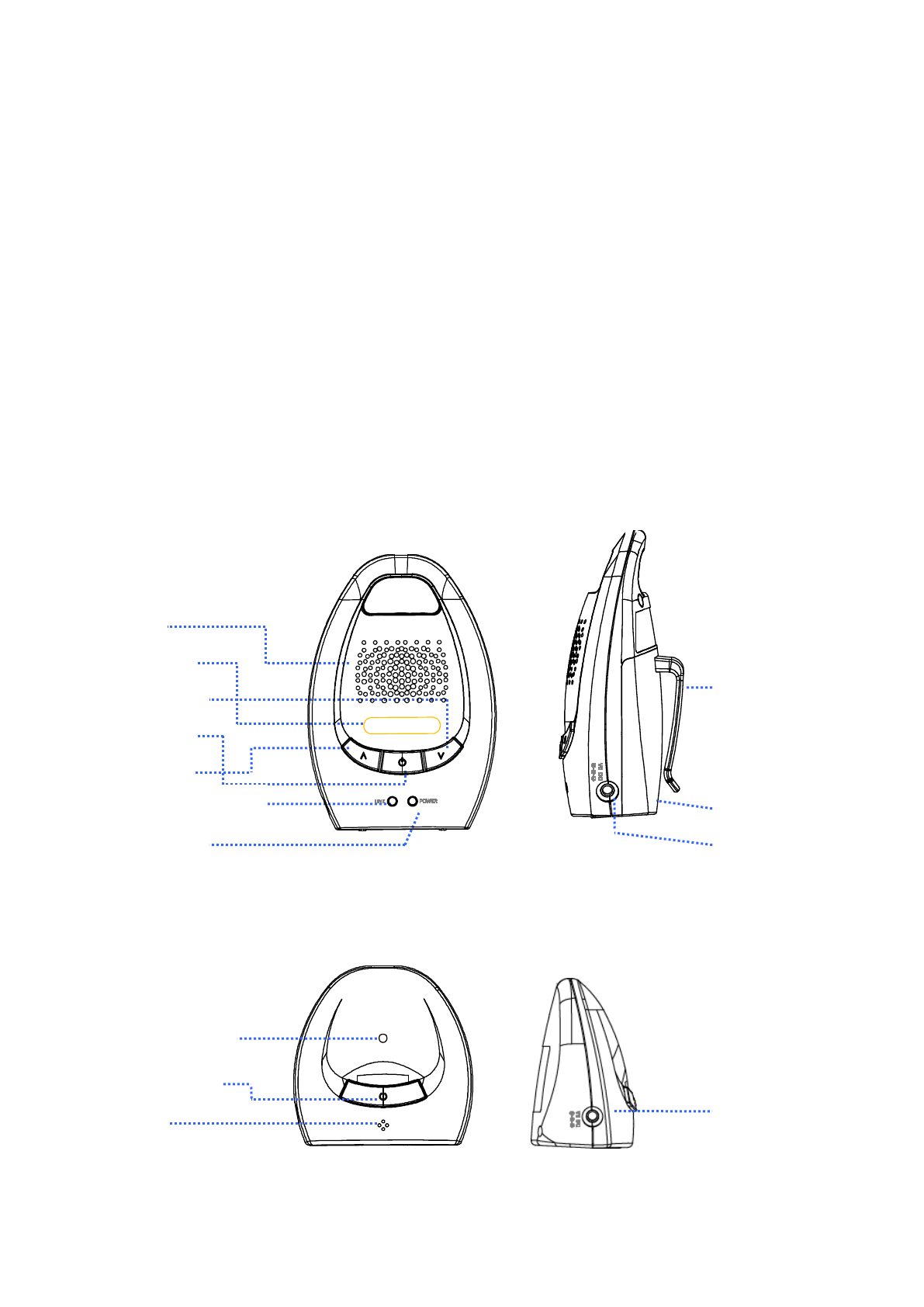

2. Overview of product

2.1 PU

（

PARENT

）

2.2 BU (BABY)

1. Speaker

2. Volume LED

3. Volume down

4. Power button

5. Volume up

7.POWER LED

8.Belt clip

9. Battery cover

10. DC IN

6. Communication LED

4. DC IN

1. Power Indicator

2. Power button

3. MIC

Summary of content (4 pages)

PAGE 1
INSTRUCTION MANUAL Model：ABM1117/1147 1. Packing List a) 1 x PU (PARENT) Receiver b) 1 x BU (BABY) Transmitter c) 2 x AC adaptors (5V/550mA ) d) 3 x 1.5V AAA Alkaline battery (not included) e) 1 x User Manual 2. Overview of product 2.1 PU（PARENT） 1. Speaker 2. Volume LED 3. Volume down 8.Belt clip 4. Power button 5. Volume up 6. Communication LED 7.POWER LED 9. Battery cover 10. DC IN 2.2 BU (BABY) 1. Power Indicator 2. Power button 3. MIC 4.
PAGE 2
3. Start to use 3.1 PU receiver instructions a. Disassemble the battery cover. Insert 3 piece of AAA battery. Assembly the battery cover. Note: Use battery or AC adaptor as power supply. b. Press the Power button for 3 seconds to power up, and the Power Indicator is on. Note: The Power Indicator keep on when using the AC adaptor. The Power Indicator flash green color when using battery. c. When battery voltage is lower than 3.4V, the low battery voltage alarm (BB sounds) appear once.
PAGE 3
4. Communication Function a. b. c. d. e. f. When both PU and BU are power on, they will automatically search and connected. PU can receive voice signal from BU. PU volume indicator will be on when receiving signal. The greater the volume received from BU, the more the volume LED will be on (maximum 5 LEDs will be on). Default volume setting in PU is level 3 (maximum: 5 levels). User can adjust the volume by pressing the volume up/down button in PU.
PAGE 4
FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
