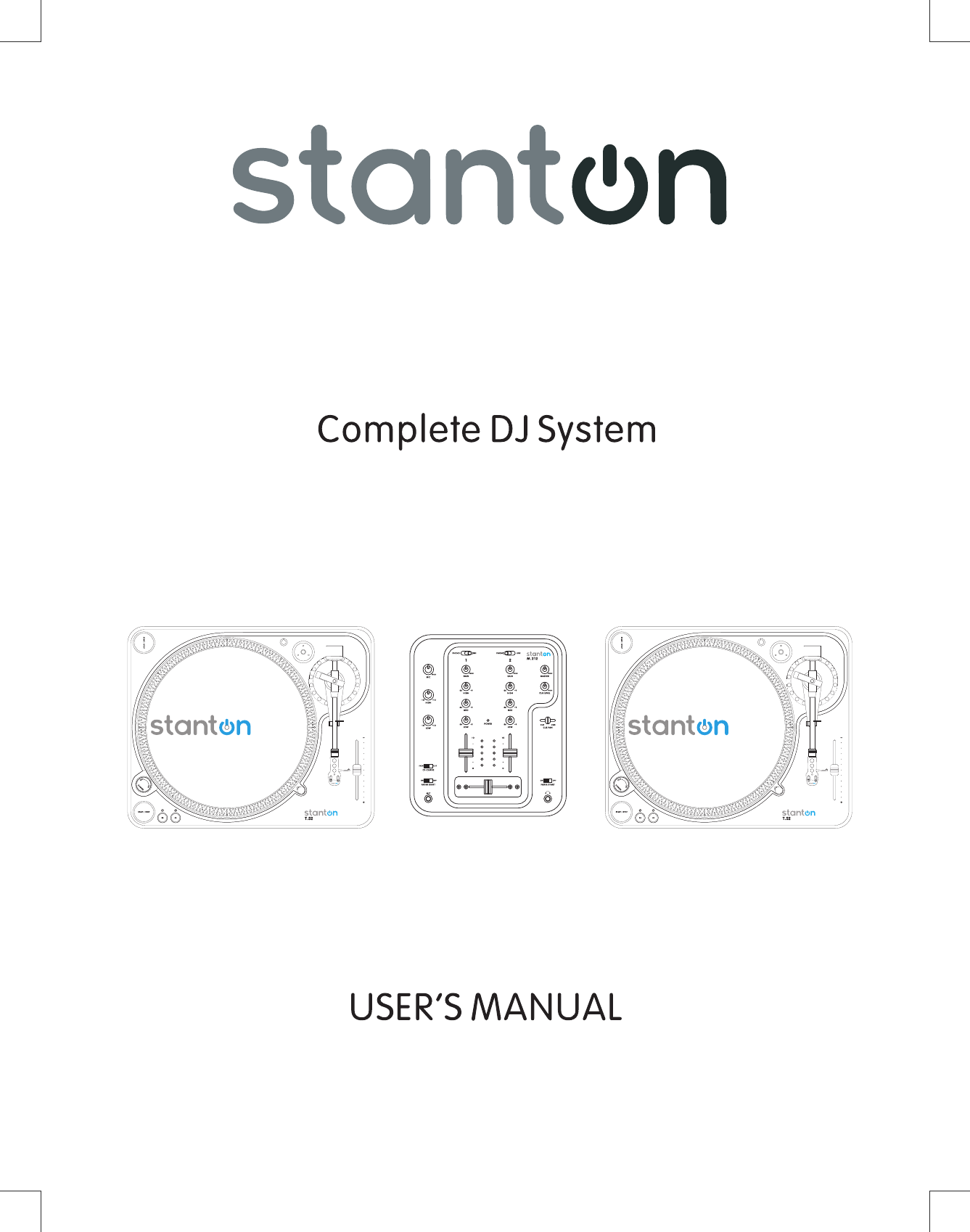

DJLab 1.1 5 . . . 5 3 .
IMPORTANT SAFETY PRECAUTIONS 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Servicing – The user should not attempt any service to the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. 15. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.
M.212 INTRODUCTION Thank you for purchasing Stanton’s newest innovation in professional tabletop mixer. The M.212 mixer was designed to bring style and reliability to the mobile or club DJ at an affordable cost. M.212 MAIN FEATURES z z z z z 2 bend EQ w/ input GAIN control per channel. Fader Start Power on/off muting Long Life crossfader Crossfader curve control M.212 ACCESSORIES Checking Package Contents Check that the carton contains the following items: (1) M.
M.212 CONTROL OVERVIEW TOP PANEL 9. Headphone Input - Insert your ¼” headphone plugs here. 1. Channel Gain - Adjusts the pre-fader volume for cleaner sound. Reduce the channel gain if you notice the level indicators flashing red. 10. Fader Start On/Off Switch - When the unit has been connected to a CD player using a control cable, this becomes the On/Off switch to automatically start and stop the CD player while using the crossfader. 2. Mic Input Gain - Adjusts microphone input level. 3.
M.212 CONTROL OVERVIEW REAR PANEL 16. Power Switch - Turns unit off and on. 17. Power Connector - Plug in the included power supply here. 18. Fader Start Control Jacks - Connect these jacks to the Fader input jacks of the CD player using the 3.5mm stereo mini cord. 19. Master Output - Unbalanced RCA connectors controlled by the Master level. 20.
M.212 QUICK SETUP DIAGRAM Review this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks. Plug your mixer into AC power. Now you are ready to switch everything on.
M.212 SPECIFICATIONS Input / output impedance & sensitivity: (Master 0dBV output, load=100Kohm, Max. gain, EQ flat) Line 10K ohm /-14dBV (200mV) +/-2dB Phono 47K ohm /-50dBV (3.16mV) +/-2dB Mic 2.2K ohm /-60dBV (1mV) +/-2dB Master 1K ohm Phones 33 ohm / 0dBV (1V) ±2dB Max. output (THD=1%, Maximum gain, EQ flat) Master More than +18dBV (8.0V) at load=100K ohm Phones More than +4dBV (1.
T.52 ASSEMBLY Thank you for purchasing the T.52 turntable from Stanton. The T.52 is built upon Stanton’s heritage of designing audiophile products for the most discriminating listener. Before assembling the T.52 please check to make sure the following items are included with the main unit in the carton. AC cord Slipmat RCA cable Stanton 500.V3 Cartridge pre-mounted on headshell, 45 rpm adaptor except on model T.
T.52 TONEARM AND CARTRIDGE SETTING The major cause of problems in sound and skipping on the vinyl is the lack of proper set up of the needle and turntable adjustments. The needle is designed to operate at a specific angle to the vinyl. The T.52 has two adjustments to correctly position the needle to the vinyl. 1. The first adjustment is the installation of the cartridge-head-shell assembly into the tone arm tube lock. The T.52 includes a Stanton 500 V3 cartridge pre-mounted to the headshell.
T.52 CONTROL OVERVIEW 8. Pitch slider - Use this to change the speed of the platter when the PITCH indicator is lit. 1. Start/Stop - Press this button to start or stop the platter. 2. Strobe dots - The dots around the edge of the platter are used in conjunction with the light located inside the motor ON/OFF switch. While the platter is in rotation, the dots help to indicate the speed of rotation. The speed is lower than the displayed speed (33,45,) when the dots are flowing to the right.
T.52 SPECIFICATIONS GENERAL Dimensions Weight Power supply Model: T.52 452(W) x 370(D) x 87(H)mm 5.4Kgs AC 100V, 50/60Hz (For Japan) AC 110V, 60Hz (For Taiwan) AC 120V, 60Hz (For U.S.A., Canada, Mexico) AC 220V, 50Hz (For United Arab Emirates, Chile, Argentina) AC 220V, 60Hz (For Philippines) AC 230V, 50Hz (For Europe, New Zealand, South Africa, Singapore, Israel) AC 240V, 50Hz (For Australia, U.K.) 5.
Copyright © 2008 Stanton Magnetics, Inc. DJLab, M.212, T.52, and T.62 are trademarks of the Stanton Group. All other trademarks are property of their respective owners, who are not affiliated with Stanton DJ. All information included in this User Manual is subject to change without notice. www.stantondj.com - +1.877.578.
