NOTE: If a Power

Screwdriver is used, a

"low torque" setting is

recommended.

NOTE: Your furniture may have different design features than those shown in the drawing.

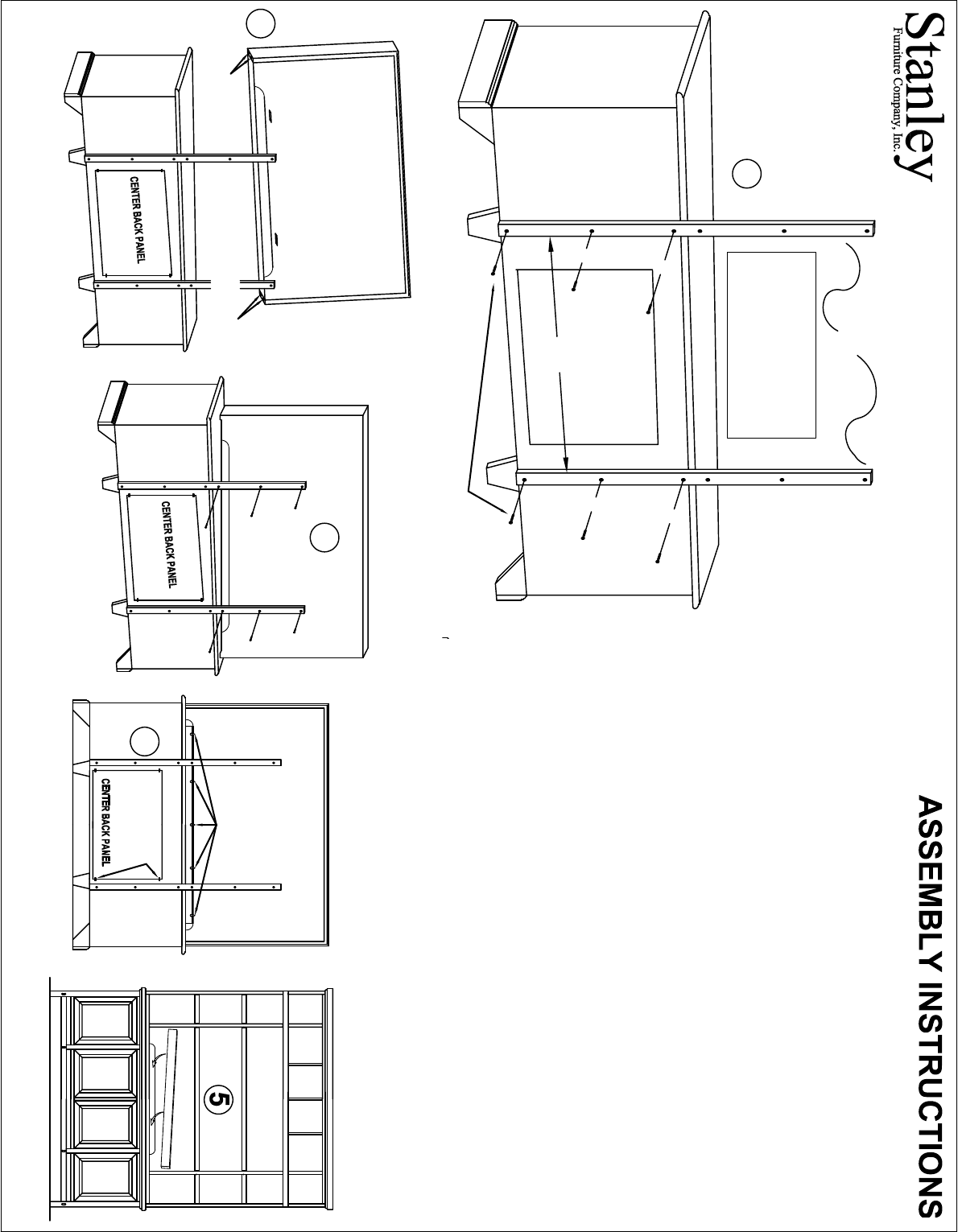

A-1243-1

-51 T.V. BOOKCASE

Attaching the PLASMA TV HUTCH to the ENTERTAINMENT CONSOLE

1. Using Screws provided, attach the Wooden Uprights packed with the Plasma

TV Hutch to the Back of the Entertainment Console. The uprights should be

mounted vertically, exactly 24 7/8" apart on center, and should be even with the

bottom of the Entertainment Console Back Panel.

2. Once the uprights are securely fastened to the Entertainment Console, apply

four Round Self Adhesive Felt Discs [provided] to the Bottom Surface of the

Plasma TV Hutch.

3. Lift the Plasma TV Hutch into position on top of the Entertainment Console,

and center it. The Uprights you attached to the Entertainment Console should be

aligned with the Vertical Cleats on the back of the Plasma TV Mounting Panel.

Secure the Plasma TV Mounting Panel to the Entertainment Console by

fastening through the Uprights using Screws provided, as indicated in diagram

#3.

4. For access to TV Receiver wiring and ventilation, the Center Back Panel on

the -31 Entertainment Console may be removed, by loosening the screws on the

Plastic Back Panel Retaining Clips located at the four corners of the Center Back

Panel.

5. Optional: To use the Cut-Out Cover Rail to fill the opening in the

Entertainment Console Deck. Place the Cut-Out Cover Rail with the Retaining

clips turned down into

the opening of the Entertainment Console Deck. With the Cover Rail in place

turn the Retaining clips till they lock the Cover rail in place as shown in drawing

6. Consult with the provider of your Plasma TV for instructions on mounting the

Television Set to the Plasma TV Hutch.

UPRIGHTS

24 7/8"

SCREWS

Retaining Clips

-31 ENTERTAINMENT CONSOLE

Self Adhesive

FELT DISCS

Self Adhesive

Retaining Clips

CAUTION: (2) PERSONS

RECOMMENDED FOR

ASSEMBLY and

INSTALLATION!

CAREFULLY READ AND

UNDERSTAND ALL INSTRUCTIONS

BEFORE PROCEEDING!
