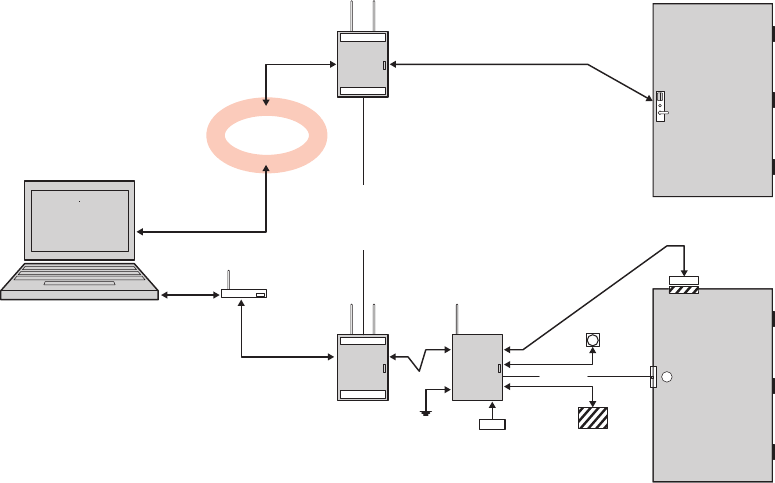

Figure 3 Example System Configurations
Portal Gateways
The Stanley Portal Gateway is a wireless device connected to the Host computer
through a secure IP address, similar to the way your computer is connected to the
internet. It transfers data signals from Wireless Controllers to and from the Host
computer. The Portal Gateway recognizes all Wireless Controllers within its antenna
range. One Portal Gateway can be upgraded to control up to 64 Wireless Controllers.
Portal Gateways provide bi-directional radio frequency communication between
Wireless Controllers and the associated host computer(s). All communications are via
secure AES 128-Bit encrypted 2.4 HGz using spread spectrum RF Radio technology.
The Portal Gateway communicates to the host computer through web services via
either Ethernet 10/100 BaseT, approved 802.11 G wireless, or an approved commer-
cial RF carrier-enabling a wireless solution end-to-end. All communications between
Wireless Controllers and Portal Gateways can be further backed up by “redundant”
Portal Gateways each with capacity for up to 64 Wireless Controllers.
Transmit range from Portal Gateway to controller varies based on building construc-
tion. Various factors can affect the range you will see in your facility.
HOST
ETHERNET
10/100 BASE T
802.11g or other
comm. Carrier
LAN/WAN
SECURE
SOCKET
PORTAL
GATEWAY
Up to 64 wireless devices
per portal gateway
(configured in
increments of 16)
WIRELESS ACCESS
CONTROLLER
RQE
STRIKE
12V DC
2.4 Ghz, Spread Spectrum/
AES 128 Bit Encryption
WIRELESS
DOOR
CONTROLLER
DOOR MONITOR
SWITCH
Existing
Prox/Weigand
card reader
Optional 12/24 V
DC Power Supply
Sealed Led Acid
Battery Pack
PORTAL
GATEWAY
A
B
