Datasheet

13/15
TDA7296

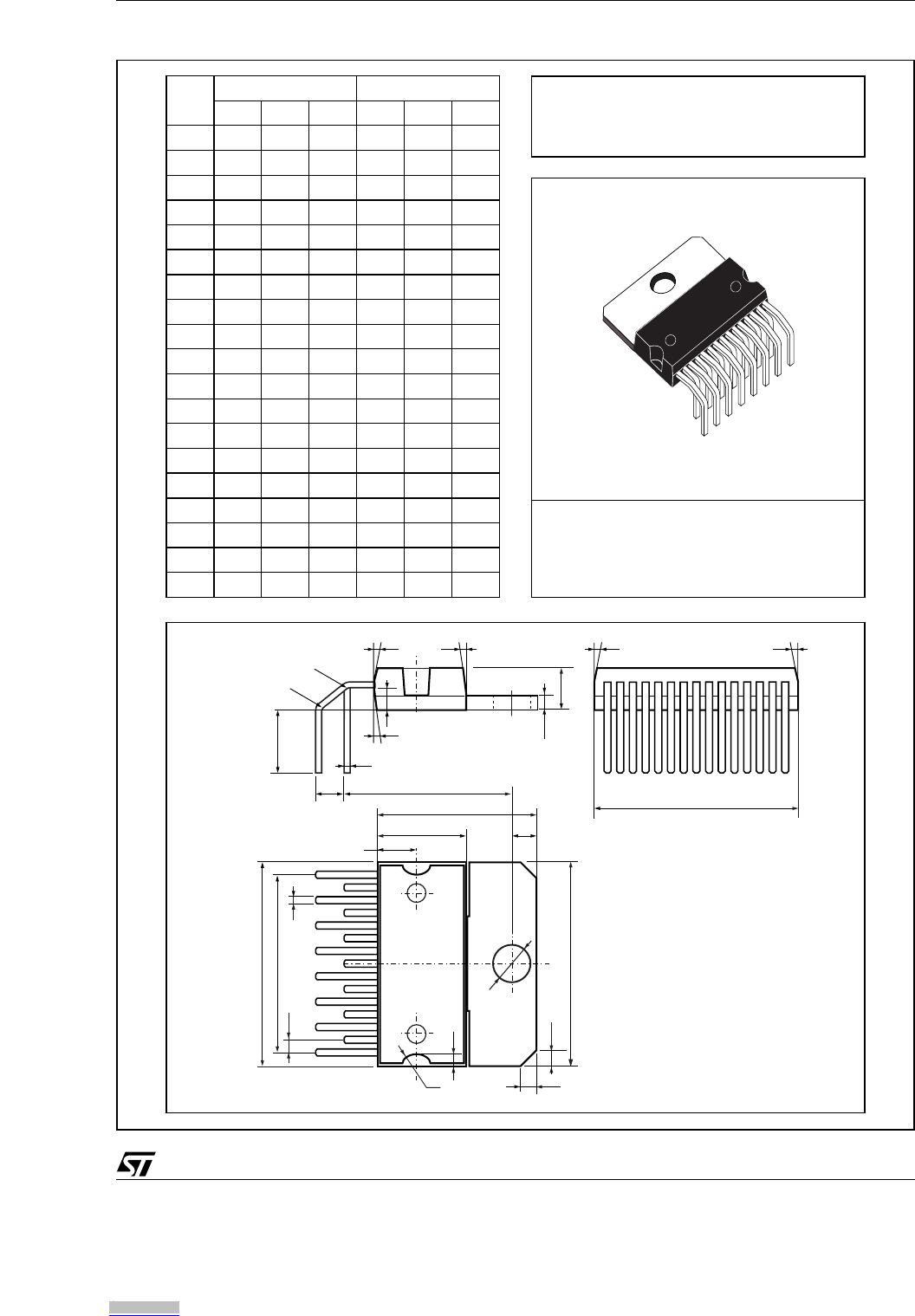

Figure 26. Multiwatt15 Horizontal (Short leads) Mechanical Data & Package Dimensions
OUTLINE AND
MECHANICAL DATA
A
C
B
E
L5
L7
L1L2
F
G1
G
H2
L4
L3
S1
S
H1
Diam 1
MW15HME
V
V
V V V
H2
N
R1 P
R
R
0067558 E
DIM.
mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A50.197
B 2.65 0.104
C1.60.063
E 0.49 0.55 0.019 0.022
F 0.66 0.75 0.026 0.030
G 1.02 1.27 1.52 0.040 0.050 0.060
G1 17.53 17.78 18.03 0.690 0.700 0.709
H1 19.6 20.2 0.772 0.795
H2 19.6 20.2 0.772 0.795
L1 17.80 18.00 18.20 0.701 0.709 0.717
L2 2.54 0.100
L3 17.25 17.5 17.75 0.679 0.689 0.699
L4 10.3 10.7 10.9 0.406 0.421 0.429
L5 2.70 3.00 3.30 0.106 0.118 0.130
L7 2.65 2.9 0.104 0.114
R 1.5 0.059
S 1.9 2.6 0.075 0.102
S1 1.9 2.6 0.075 0.102
Dia1 3.65 3.85 0.144 0.152
Multiwatt15 H (Short leads)
