Package mechanical data STB80NF55-08T4, STP80NF55-08, STW80NF55-08
10/15 Doc ID 14511 Rev 2

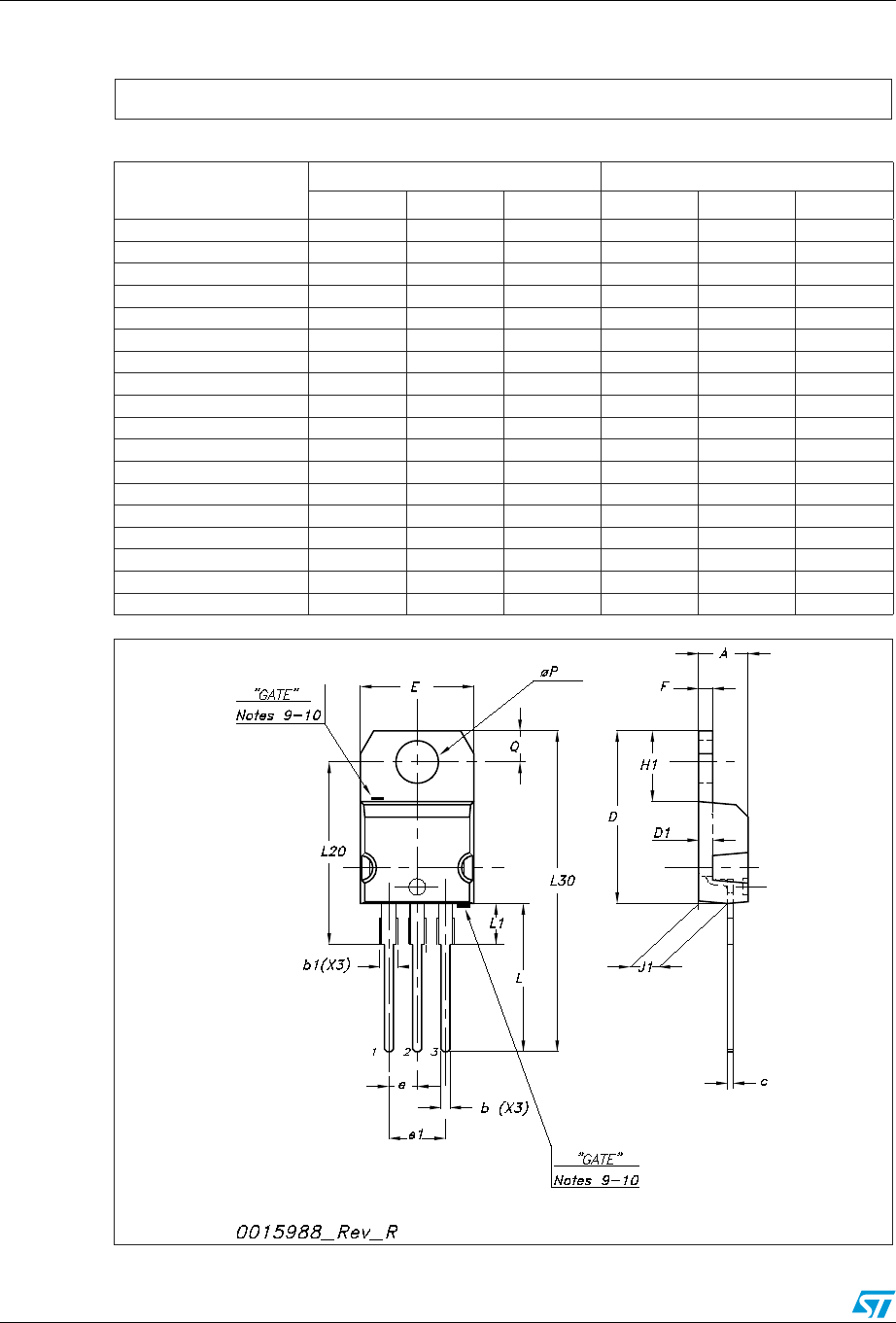

TO-220 mechanical data
Dim
mm inch
Min Typ Max Min Typ Max
A 4.40 4.60 0.173 0.181
b 0.61 0.88 0.024 0.034
b1 1.14 1.70 0.044 0.066
c0.48 0.70 0.019 0.027
D 15.25 15.75 0.6 0.62
D1 1.27 0.050
E 10 10.40 0.393 0.409
e 2.40 2.70 0.094 0.106
e1 4.95 5.15 0.194 0.202
F1.23 1.32 0.048 0.051
H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107
L13 14 0.511 0.551
L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L3028.90 1.137
∅P 3.75 3.85 0.147 0.151
Q2.65 2.95 0.104 0.116
