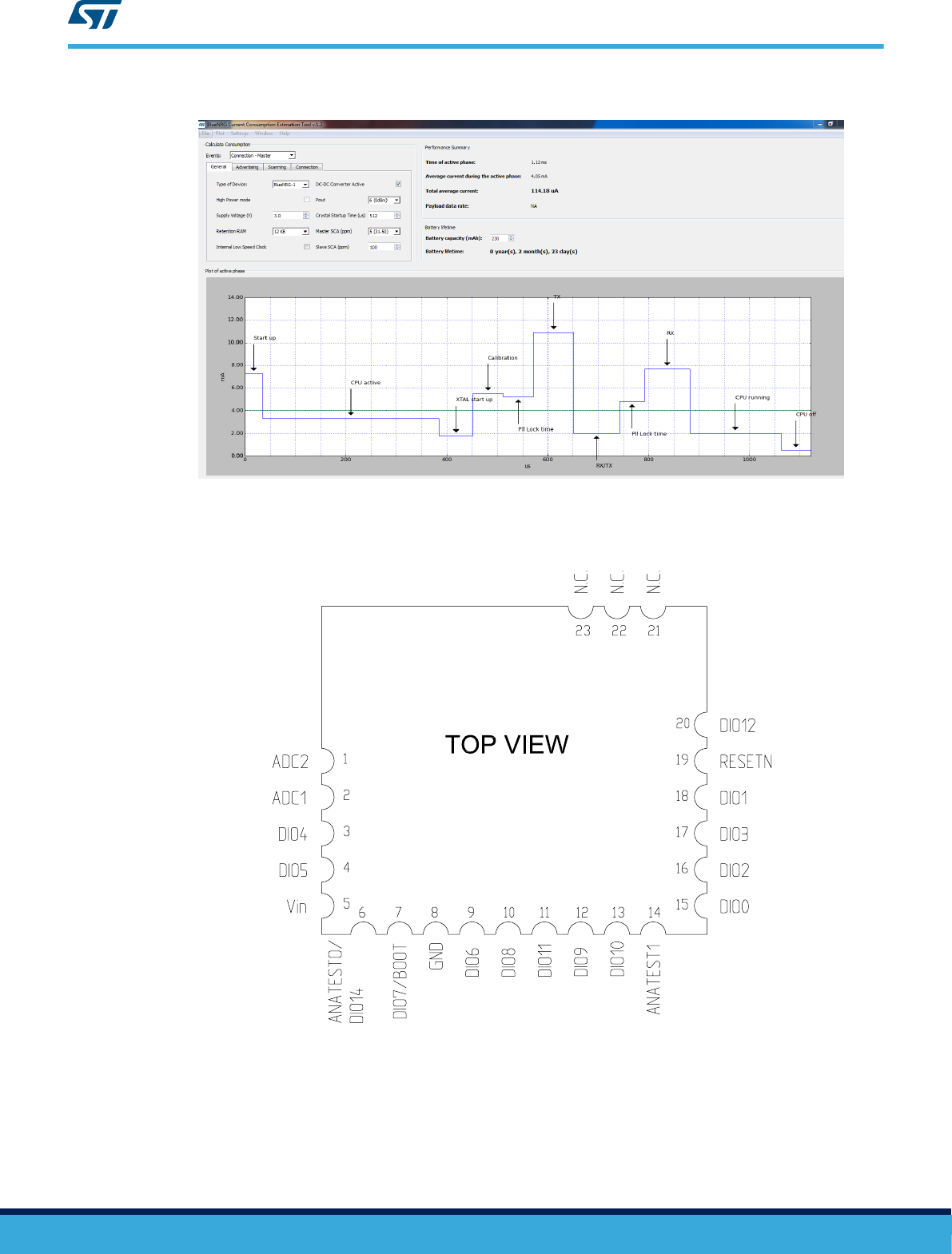

Figure 6. Typical current consumption profile at 0 dBm
4.2 Pin assignment
Figure 7. Pin assignment
As described in the previous picture the SPBTLE-1S module is using exposed pad in order to allow a full optical
visual inspection in order to fulfill the needs of industrial grade applications.
The follow table provides the association between SPBTLE-1S module pin and the related BlueNRG-1 pin. Refer
to the BlueNRG-1 datasheet for detailed description.
SPBTLE-1S
Pin assignment
