5 Hardware design
Note: • All unused pins should be left floating; do not ground
• GND pin must be well grounded
• Traces should not be routed underneath the module
The area around the module should be free of any ground planes, power planes, trace routings, or metal for 6
mm from the module antenna position, in all directions.
5.1 Reset circuitry
The SPBTLE-1S module requires an external pull-up reset circuitry to ensure proper operation at power on. Refer
to the “Reset management” chapter of the BlueNRG-1 datasheet for details.

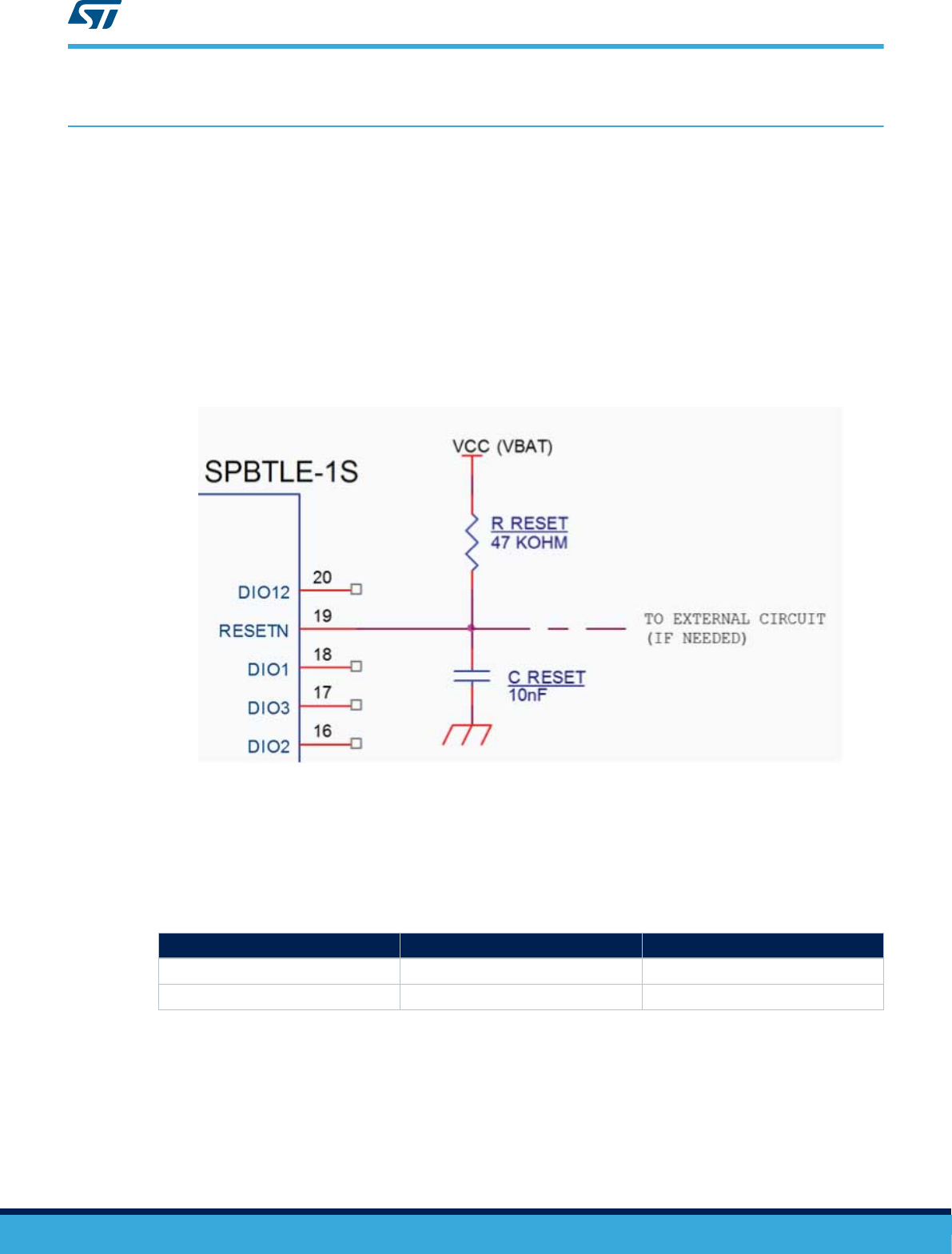

Figure 8. Reset circuitry
5.2 Debug interface
The SPBTLE-1S embeds the ARM serial wire debug (SWD) port. It is two pins (clock and single bi-directional
data) debug interface, providing all the debug functionality plus real time access to system memory without halting
the processor or requiring any target resident code.
Table 7. Debug interface pin
Pin functionality Module PIN Pin description
SWCLK 12 SWD clock signal
SWDIO 13 SWD data signal
For more information refer to the BlueNRG-1 technical documentation
(http://www.st.com/en/wireless-connectivity/bluenrg-1.html )
