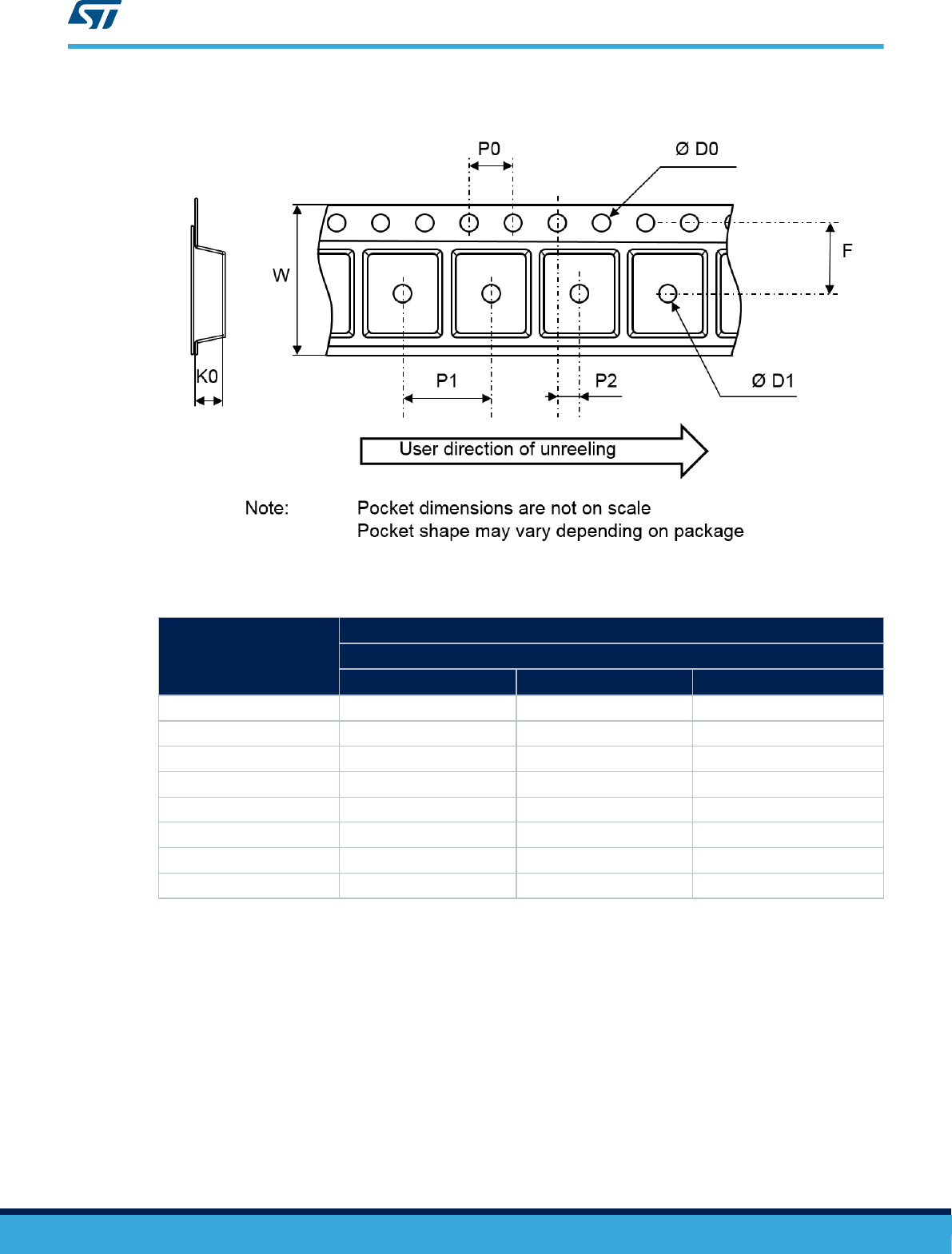

Figure 24. Tape and reel outline
Table 4. Tape and reel mechanical data
Ref.
Dimensions
Millimeters
Min. Typ. Max.
ØD0 1.5 1.55 1.6
ØD1 1.5
F 5.4 5.5 5.6
K0 2.64 2.74 2.84
P0 3.9 4.0 4.1
P1 7.9 8.0 8.1
P2 1.9 2.0 2.1
W 11.7 12.0 12.3
