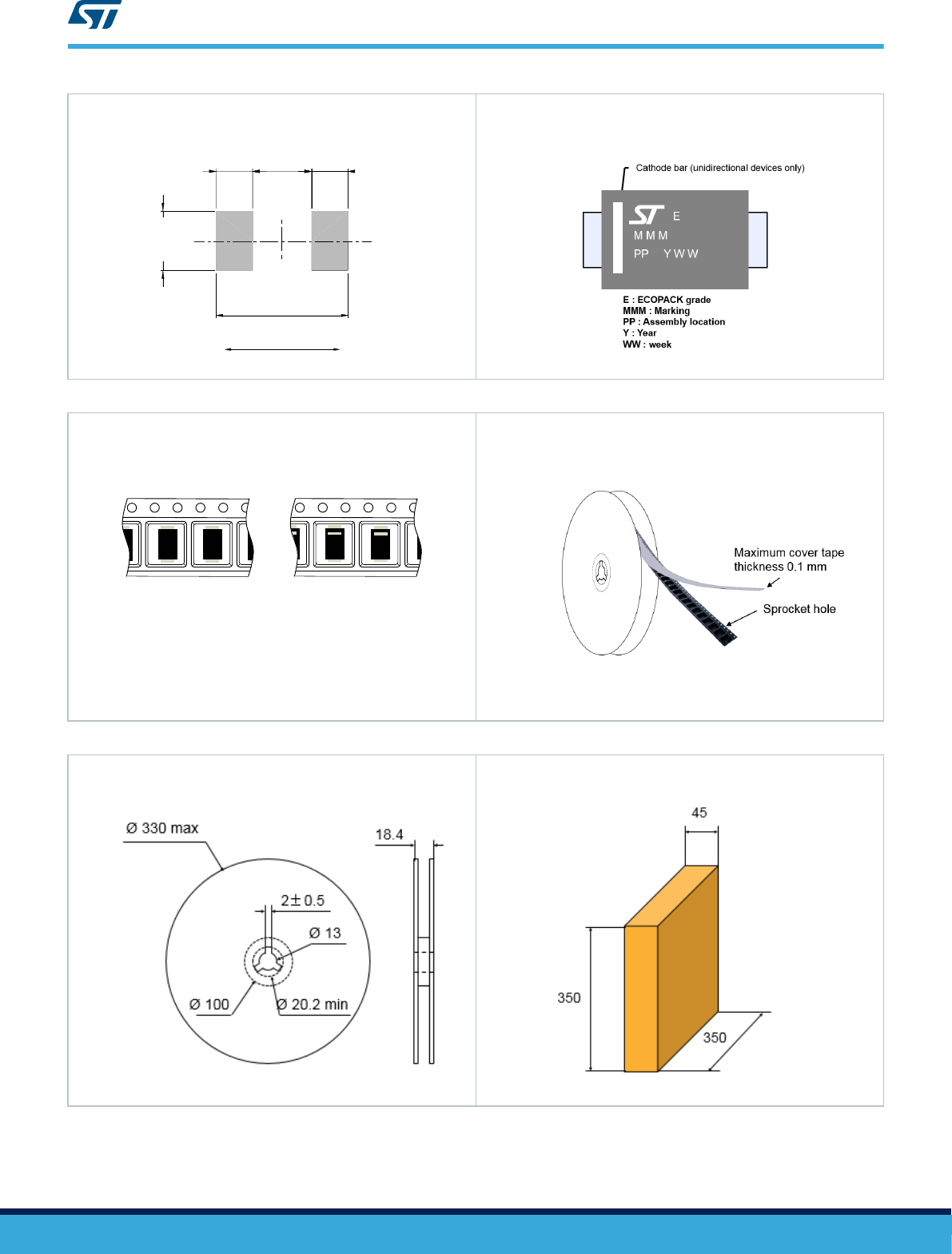

Figure 18. SMB recommended footprint
millimeters
(inches)
1.62
0.064
1.62
0.064
2.60
(0.102)
5.84
(0.230)
2.18
(0.086)
Figure 19. Marking layout
Figure 20. Package orientation in reel
Taped according to EIA-481
Pocket dimensions are not on scale.
Pocket shape may vary depending on package
On bidirectional devices, marking and logo may not be always in the
same direction.
Unidirectional Bidirectional
Figure 21. Tape and reel orientation
Figure 22. Reel dimensions (mm)
Figure 23. Inner box dimensions (mm)
SM6TY
SMB package information
