2 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK packages,
depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product
status are available at: www.st.com. ECOPACK is an ST trademark.
2.1 SMB package information

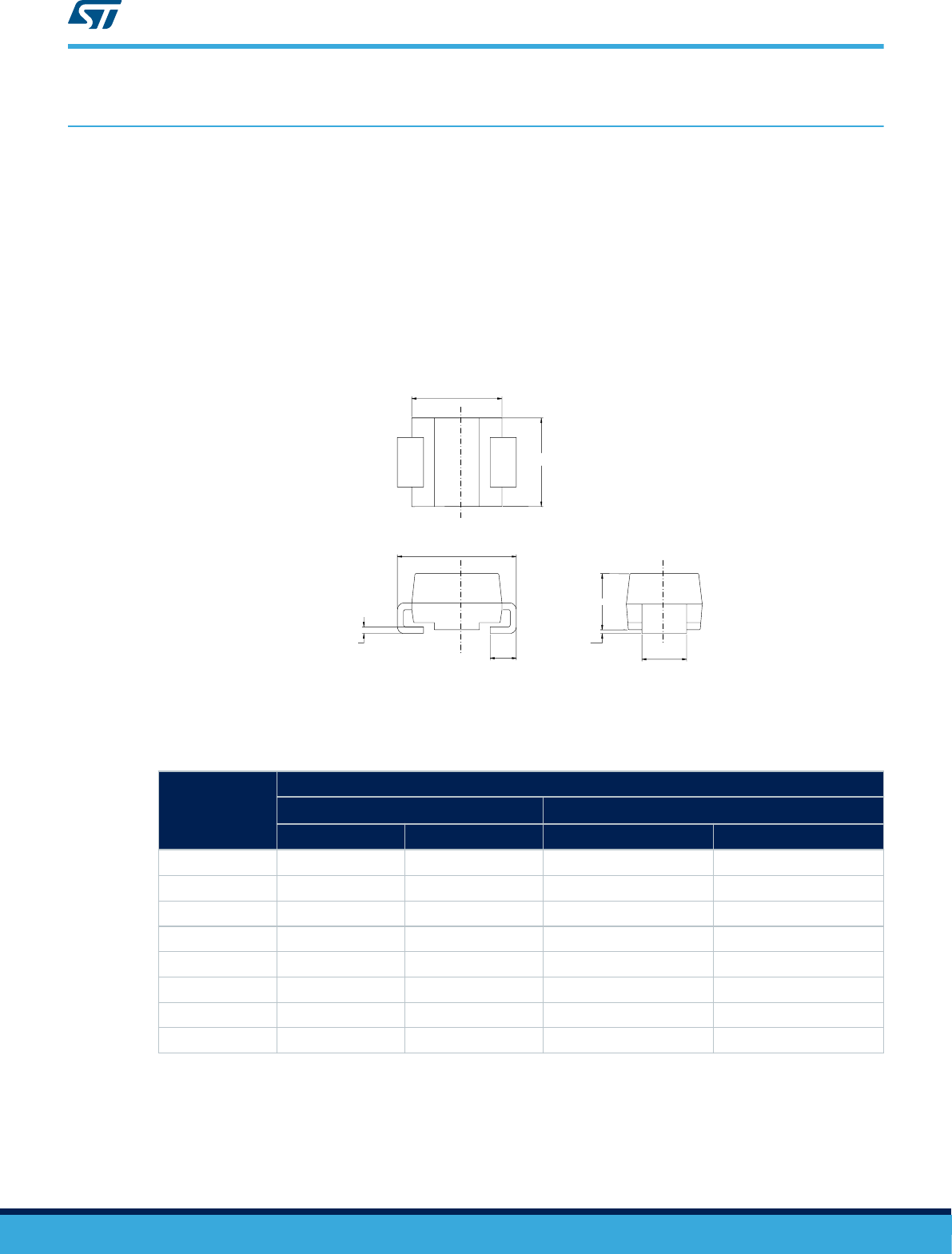

Figure 17. SMB package outline
E1
E
D
C
L
A1
A2
b
Table 3. SMB package mechanical data
Ref.
Dimensions
Millimeters
Inches
(1)
Min. Max. Min. Max.
A1 1.90 2.45 0.0748 0.0965
A2 0.05 0.20 0.0020 0.0079
b 1.95 2.20 0.0768 0.0867
c 0.15 0.40 0.0059 0.0157
D 3.30 3.95 0.1299 0.1556
E 5.10 5.60 0.2008 0.2205
E1 4.05 4.60 0.1594 0.1811
L 0.75 1.50 0.0295 0.0591
1. Values in inches are converted from mm
SM6TY
Package information
DS6905 - Rev 10
