1. Scope
These are the specifications of SPSCAP (Electric Double Layer Capacitor) which you are using, please
review this document and approve it.

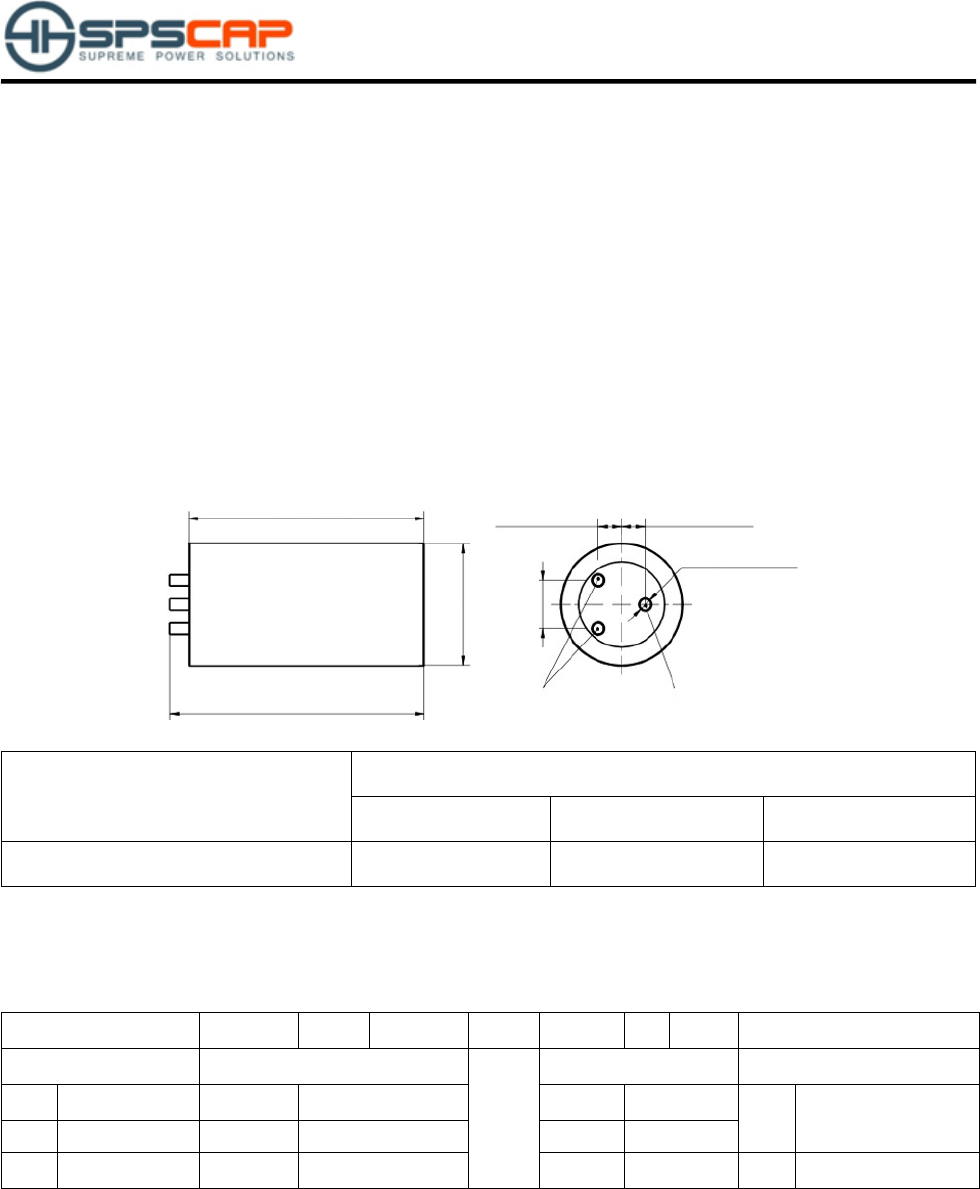

2. Construction and Dimensions
1) Construction
Inside structure: wound anode and cathode electrode with separator
Outer structure: aluminum case, insulating sleeve
2) Dimensions
3. Part Number Naming System
SCE
0500
C
0
-
0002
R
7
SPD
Product Series
Nominal Capacitance (F)
Dash
Rated Voltage (V)
Terminal Design
S
Single
0500
500
0002
2
SP
Soldering Pillar
C
Cylindrical
C
Decimal
R
Decimal
E
Energy
0
0.0
7
0.7
D
Improved Part
Part Number
Dimension(mm)
D(Max)
L1
L2
SCE0500C0-0002R7SPD
33.3
79.8
84.7
6.35±0.1
L1±0.3
L2±0.4
Φ33.3Max
13±0.2
6.35±0.1
3- Φ3±0.1
Positive
Negative
