Manual

44
42
➤
60
➤
61
➤
➤
41
➤
40
➤
39
➤
38
➤
37
➤
35
➤
1
➤
23
➤
25
24
➤
26
➤
➤
22
➤
20
➤
21
➤
59
➤
10
➤
9
➤
8
2
12
➤
➤
➤
11
13
14
15
16
17
➤
➤
➤
➤
62
➤
➤
➤
56
➤
54
➤
➤
52
53
➤
51
➤
➤
50
➤
55
➤
46
45
47
48
57
58
➤
➤
49
➤
➤
➤
➤
➤
3
➤
7
6
5
18
19
➤
➤
➤
➤
➤
4
➤
43
➤
36
➤
27
➤
28
29
30
➤
➤
➤
➤
➤
31
32
➤
➤
33
34
1. CR0101 - .308 G.l. Chrome Lined Barrel
2. MA9900 - Receiver
3. MA0400 - Bolt with Roller and Clip
4. MA0406 - Firing Pin, Chrome Plated
5. C00405 - Extractor
6. C00406 - Extractor Spring
C00407 - Extractor Plunger
7. MA0405 - Ejector Spring
MA0408 - Ejector
8. C00507 - Aperture Rear Sight
9. CO0505 - Rear Sight Base
10. CO0514 - Rear Sight Cover (Metal)
11. CO0501 - Elevation Knob
12. C00502 - Windage Knob (Complete)
13. MA0201 -Clip Guide
14. MA0202 -Clip Guide Pin 3/32x5/8
15. MA0204 - Bolt Stop Pin 3/32x1'
16. MA0203 - Bolt Stop
17. MA0205 - Bolt Stop Spring
18. MA0206 - Connector Lock
19. MA0207 - Connector Lock Pin 5/64x5/16
20. MA0301 - Op Rod Guide
21. MA0302 - Op Rod Guide Pin 1/8x3/4
22. MA0303 - Barrel Band
23. MA0304 - Gas Cylinder
24. MA0207 - Spindle Valve Pin 5/64 x 5/16
25. MA0306 - Spindle Valve
26. MA0308 - Spindle Valve Spring
27. MA0309 - Piston
28. MA0310 - Gas Cylinder Lock
29. MA0311 - Gas Cylinder Plug
30. MA0312 - Castle Nut
31. MA0512 - Front Sight Set Screw
32. MA0510 - Front Sight
33. MA0513 - Castle Nut Set Screw (Capsocket)
34. MA0313 - Flash Suppressor
35. MA0317 - Op Rod Spring Guide
36. MA0316 - Op Rod Spring
37. MA0315 - Op Rod
38. MA6007 - Complete Butt Plate Assembly
39. WS0711 - Butt Plate Wood Screw
40. CA0702 - Butt Plate Machine Screw
41. CA0701 - Rear Swivel
42. SL0717 - Stock Liner Screw
43. SL0716 - Stock Liner (Not sold separately)
44. NX0802 - New Walnut Stock w/liner/ferrule
45. CO0612 - Trigger & Sear Assembly
C00609 - Trigger Stripped
CO0610 - Sear
CO0611 - Trigger/Sear Pin (Small)
46. C00605 - Hammer Spring Housing
47. C00603 - Hammer Spring
48. C00604 - Hammer Spring Plunger
49. C00602 - Hammer
50. MA0601 - Trigger Housing
51. MA0603 - Safety Spring
52. C00607 - Trigger Pin
53. C00608 - Safety
54. MA0602 - Trigger Guard
55. C00606 - Hammer Pin
56. MA0604 - Magazine Catch
57. MA0605 - Magazine Catch Spring
58. MA0606 - Magazine Catch Pin
59. MA0722 - Handguard, Solid Fiberglass
(Comes with #62 C00701 Handguard Clip)
60. FS0712 - Front Swivel
FS0713 - Front Swivel Rivet
FS0714 - Front Swivel Washer
61. FU0715 - Front Ferrule
62. C00701 - Handguard Clip
M1A
TM

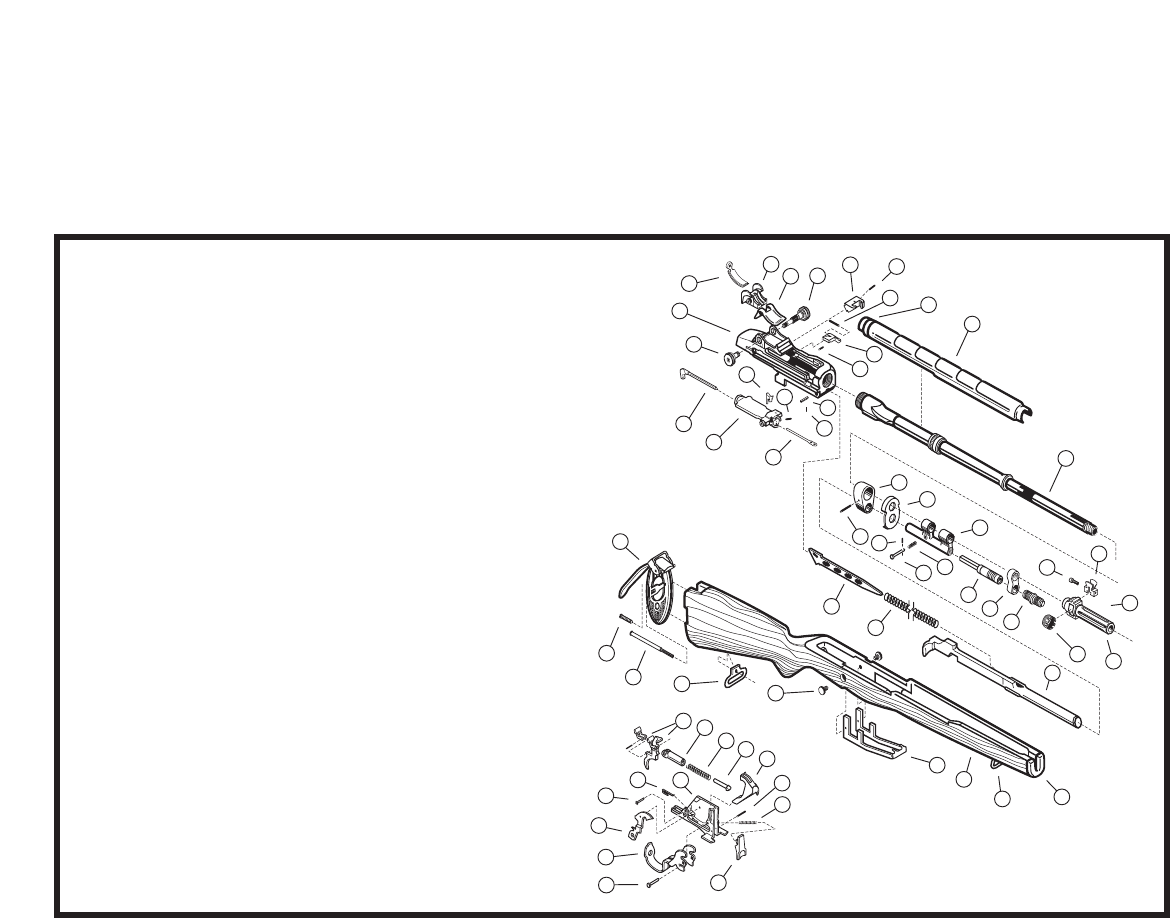

STANDARD MODEL EXPLODED VIEW
34
