Instructions / Assembly

Basic Desk Lamp

w/ handle

ASSEMBLY INSTRUCTIONS:

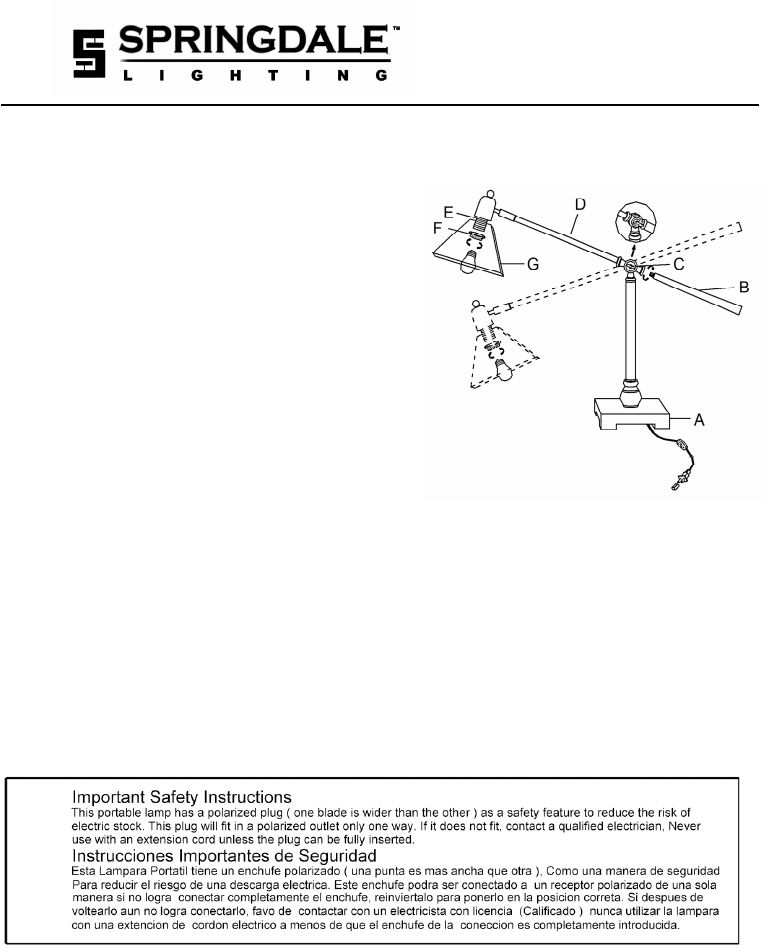

This is a generic illustration and may not be identical to your lamp.

1. Place the lamp base (A) on a level surface.

2. Place shade (G) over socket (E) and screw socket ring

(F) securing the shade in place.

3. Screw handle (B) into the swivel joint (C).

4. Screw arm (D) into swivel joint (C).

5. Insert bulb into the bulb socket.

• Lamps with have either a tiffany, metal or a fabric shade.

• Your specific lamp may not require a socket ring.

Notice: Loosen the adjustable knob to adjust the position of base arm.

Important:

Check the lamp socket for information on the maximum wattage

recommended for your specific lamp.

Cleaning of your lamp.

Unplug lamp, wipe with a damp cloth. Do not use abrasives

*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Version#: D-DL-H

Made in China / Revision 06/07/17

PAGE 1
Basic Desk Lamp w/ handle ASSEMBLY INSTRUCTIONS: This is a generic illustration and may not be identical to your lamp. 1. Place the lamp base (A) on a level surface. 2. Place shade (G) over socket (E) and screw socket ring (F) securing the shade in place. 3. Screw handle (B) into the swivel joint (C). 4. Screw arm (D) into swivel joint (C). 5. Insert bulb into the bulb socket. • Lamps with have either a tiffany, metal or a fabric shade. • Your specific lamp may not require a socket ring.
PAGE 2
Lámpara de escritorio con mango INSTRUCIONES DE ASAMBLEA: Esta es una ilustración genérica y puede que no ser idéntica a su lámpara. 1. Ponga la base (A) en una superficie plana. 2. Coloque la pantalla (G) sobre el zócalo (E) y atornille el anillo de enchufe (F) asegurando la pantalla en su lugar. 3. Atornille brazo (B) en la junta giratoria (C). 4. Inserte bulb en el zócalo. • Las lámparas con cualquiera tiene una tiffany, metal o una pantalla de tela.
