Worksh
op Manual for
ACE80/100 Diesel Driven Centrifugal Pumps
Manual No/Rev
W72-020E / 1
Our policy is one of continuous improvement and we reserve the right to alter specifications at any time
Page 17 of 21
This manual is a preliminary issue
for information only,
pending formal issue of
the complete manual.

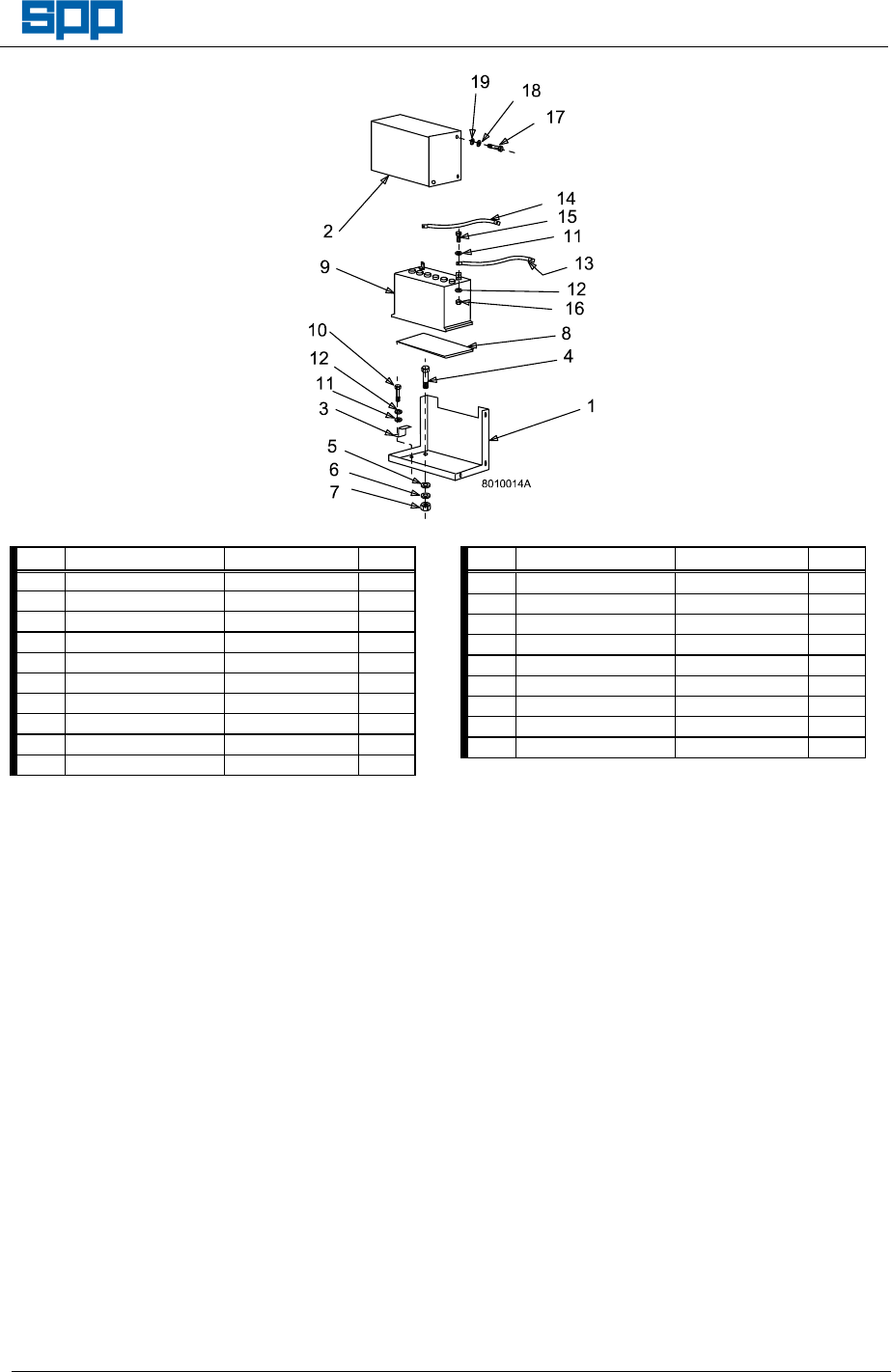

ITEM DESCRIPTION PART No QTY
1
Battery box
13165
1
2
Battery box lid 13166 1
3
Battery clamp 12483 2
4
Screw: M12 x 35 21863-220-347-0 2
5
Washer: M12 SY9509680 2
6
Washer: spring M12 SY9509808 2
7
Nut: M12 SY9509654 2
8
Battery mat SY3874047 1
9
Battery: 12v SY7004404 1
10
Screw: M8 x 16 21863-132-347-6 2
ITEM DESCRIPTION PART No QTY
11
Washer: spring M8 SY9509806 4
12
Washer: M8 SY9509678 4
13
Lead: battery +ve 13761 1
14
Lead: battery -ve SY3872002 1
15
Screw: M8 x 20 SY9519097 2
16
Nut: M8 SY9509652 2
17
Screw: M6 x 16 21863-102-422-1 6
18
Washer: spring M6 SY9509805 6
19
Washer: M6 SY9509676 6
