Nomad User’s Manual Appendix E – Introduction to POLQA

Appendix F – Nomad HD Hardware

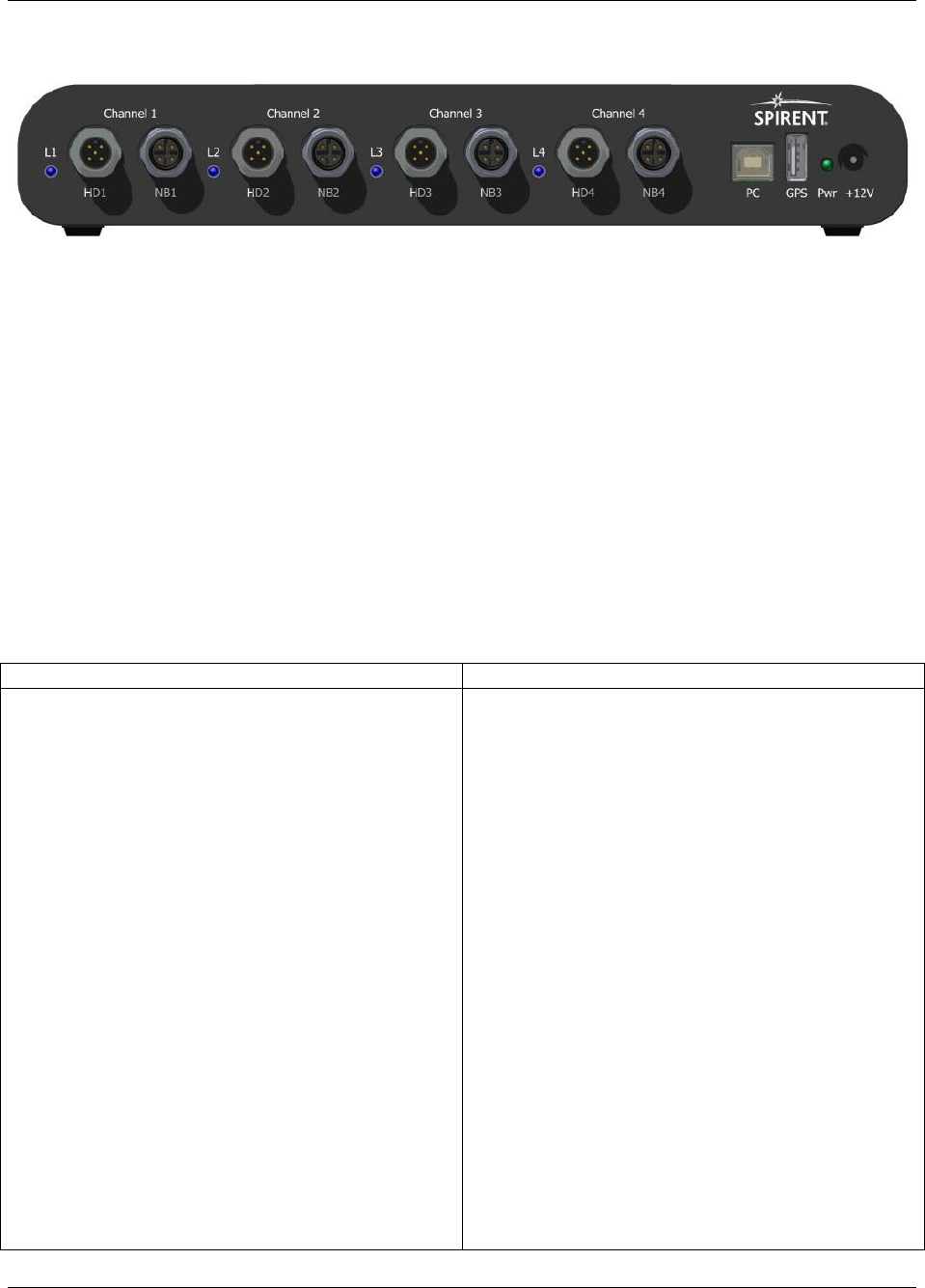

Figure F-0-1 – Spirent Communications HD ME Hardware Unit

The Nomad HD hardware allows for connection to a mobile device via one of three interfaces:

Narrowband, High Definition, or Bluetooth.

Important Safety Note

Any usage of the equipment in a manner not specified by the manufacturer may impair features

related to safety and user protection.

Tout usage de cet équipement, qui n’est pas conforme aux spécifications du manufacturier, peut

affecter les fonctions relatives à la sécurité et la protection de l’utilisateur

Nomad HD LEDs

Indicator

Function

L1, L2, L3, L4

Indicates the status of the link over the active

interface for the given channel. For example,

when utilizing the Bluetooth interface, the LED

indicates the status of the Bluetooth link. The

general behavior is as follows:

 Dark – Channel is disabled

 Green – Channel is enabled for

Narrowband Analog

 White – Channel is enabled for

Wideband Analog

 Cyan (Flashing) – Bluetooth

initialization

 Cyan (Solid) – Bluetooth initialized

 Blue (Flashing) – Bluetooth Pairing

“On”

 Blue (Solid) – Bluetooth is Paired

 Yellow (Flashing) – Outgoing call setup

 Yellow (Solid) – Outgoing call in

progress

 Magenta (Flashing) – Incoming call

setup

 Magenta (Solid) – Incoming call in
