Nomad User’s Manual Chapter 8 – Analyzing the Results

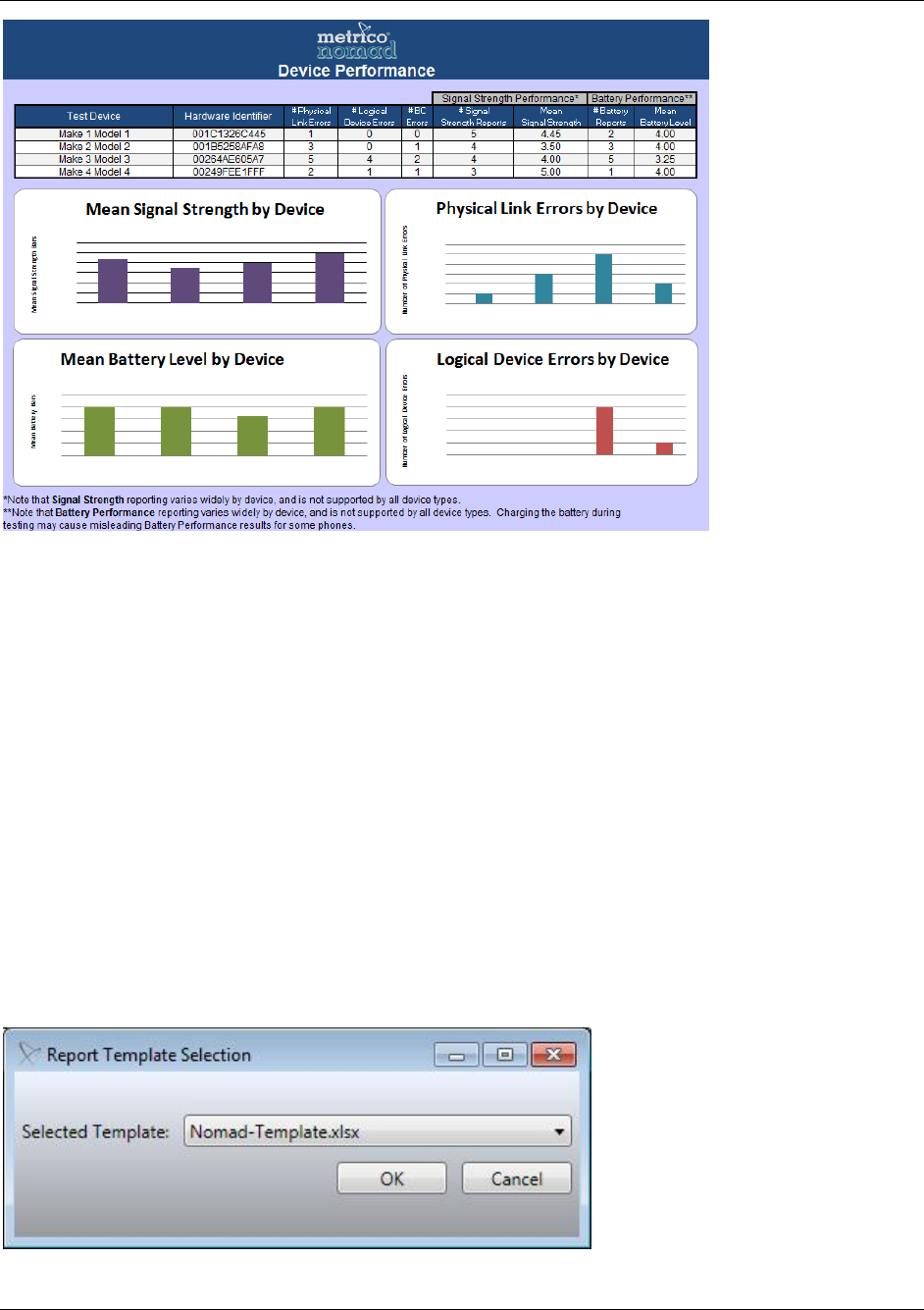

Figure 8-17 - Device Performance Report

8.3 Report Template Customization

Nomad supports report template customization. To customize a report template:

 Find the default Nomad report template in the Templates directory of the Nomad

installation location (typically C:\Program Files\Spirent Communications\Nomad). The

name of the file is Nomad-Template.xlsx.

 Make a copy of the Nomad-Template.xlsx template file in the same directory. Rename the

copy with a meaningful name.

 Open the new file and edit the formatted report pages using Excel 2007 (.XLSX format).

Note that existing worksheet names must remain the same but new sheets may be added.

 When the changes are complete, save the Excel file.

 When more than one report template is available in the Templates folder, Nomad will

present the Report Template Selection dialog during the report generation process. At

that time, any custom template may be selected for data population.

Figure 8-18 - Report Template Selection Dialog
