Spencer Power Mizer Multistage Centrifugal Cast Blowers Manual

4
III. Safety Precautions and
Operating Guidelines
• Readandfollowallinstructionsinthismanual.Ifyouhave
any questions, consult your Spencer Representative.
• Use appropriately ratedlifting equipmentfor installation,
removal, or disassembly of heavy components.
• Remove inlet and discharge covers, silica gel bags and
crating materials prior to blower installation.
• Inspect all openings for tools and foreign matter before
connecting accessories or piping.
• Perform all installing and operating procedures with care,
following sound practices to avoid accidents and damage.
• Avoid climbing on or over the blower; use proper staging
and ladders for exterior machine access.
• Be sure isolation pads are correctly located beneath the
blower base. See page 5.
• Confirmthattheblowerislevelsothatoillevelreadingswill
be accurate.
• Installflexibleconnectorsoninletanddischargeflangesto
isolate piping loads from the blower.
• Ensurethat piping,machineguards andaccessories such
as filters or valves are properly installed and fastened.
• Filloilersofoil-lubricatedblowerbearingswithrecommended
type of fresh oil as instructed on page 7.
• Install a filter on the inlet when the blower is used in pressure
service and keep it clean.
• Allowonlyqualifiedelectricianstoworkonelectricalequip-
ment.
• Lockelectricalcircuitsopenandtagthemduringservicing
of equipment.
• Alignthecouplingasinstructedonpage6.
• Removealignmenttoolsandreplacecouplingguardbefore
restarting blower.
• Turntheblowershaftbyhandtoverifyfreerotationwithout
rubbing or noise.
• Checkmotorrotationasinstructedonpage7.
• Donotoperatetheblowerwherethereisanambienttem-
perature above 104 °F (40 °C), unless it has been designed
for such conditions.
• Operateblower with sufficient restriction at all times (via
connected piping system or throttled butterfly valve) to
avoid motor overloading.
• Donotallowbloweroperationinsurge(unstablelowflow)
or damage may result.
• Rotate shaft of stored or inactive blowers a few times by
hand every week.
• UseonlygenuineSpencerpartsforrepairsandservice.
IV. Handling and Storage
Each Spencer blower is carefully balanced and tested at the
factory. For optimum performance, it must be handled with
care during unloading and installation.
Check the shipment for damage upon arrival; file any claims
with the shipper and notify Spencer.

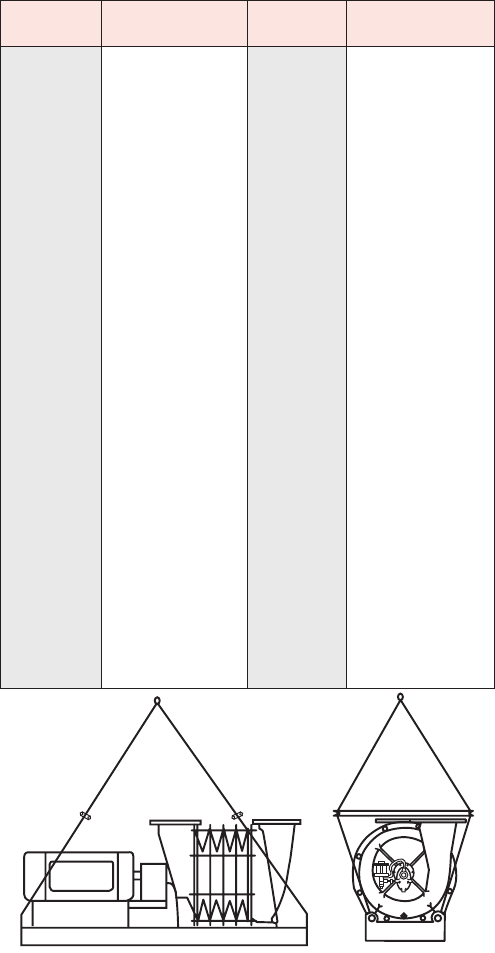

Lifting and Moving
Moving of this equipment is the customer’s responsibility and
should be performed or directed by experienced riggers using
accepted rigging practices and safety precautions. The blower/
motor assembly can be lifted and relocated with an overhead
crane or hoist. Always use lifting equipment rated for the loads
involved–see accompanying table of approximate machine
weights.
CAUTION: Use of alternative lifting methods such as a
forklift is not recommended, due to risk of equipment
damage or misalignment.
Approximate Machine Weights
(blower and base without motor)
C44 3487 1584
C45 4115 1868
C46 4544 2063
C47 4997 2269
C48 5425 2463
C52 3852 1747
C53 4518 2049
C54 5344 2424
C55 6010 2726
C56 6676 3028
C57 7542 3421
C58 8208 3723
C62 4914 2231
C63 6064 2753
C64 6989 3173
C65 8049 3654
C66 8926 4052
C72 10150 4604
C73 12100 5489
C74 14600 6623
C75 17200 7804
C76 20300 9207
C81 14500 6577
C82 18000 8165
C83 21500 9752
C84 25000 11340
C85 28500 12927
C86 32000 14515
Weight Weight
Model No. lb kg Model No. lb kg
C13 177 80
C14 188 85
C15 200 91
CS22 1047 475
CS23 1224 555
CS24 1404 637
CS25 1625 737
CS26 1805 819
CS27 1986 901
CS28 2217 1006
CS29 2395 1086
CS210 2576 1169
C32 1917 870
C33 2225 1009
C34 2596 1178
C35 2928 1328
C36 3285 1490
C37 3688 1673
C38 4004 1816
CS32 1980 898
CS33 2319 1052
CS34 2823 1281
CS35 3162 1434
CS36 3501 1588
CS37 4019 1823
CS38 4358 1977
CS39 4697 2131
C42 2630 1194
C43 3058 1389
