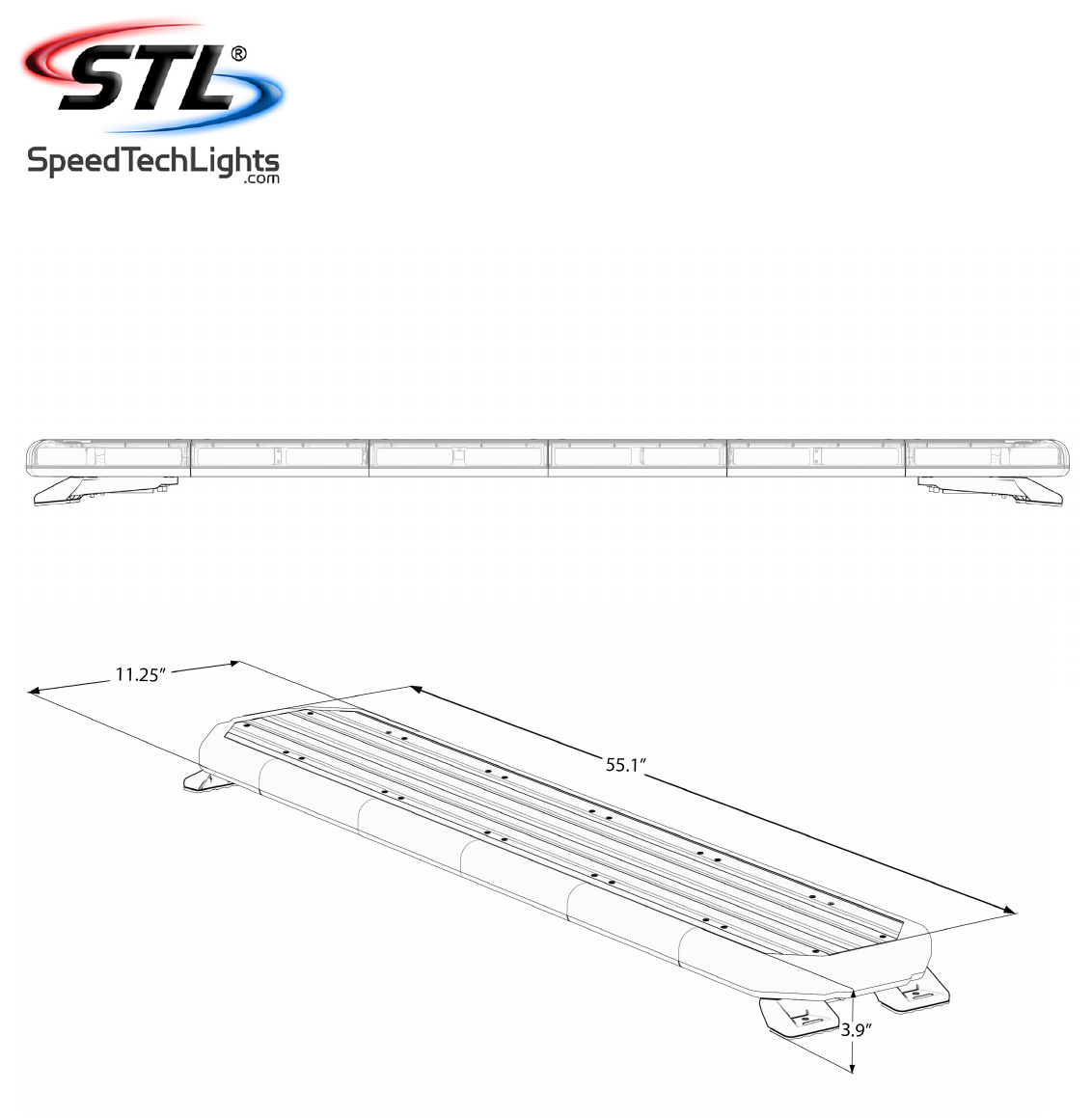

K-FORCE® TOW 55 FULL LIGHT BAR F-KCTTOW55 F-KCLTOW55 INSTRUCTION MANUAL 1 SpeedTech Lights, Inc © 2019
K-FORCE® TOW 55 FULL LIGHT BAR Warnings and Notices for Users and Installers This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
K-FORCE® TOW 55 FULL LIGHT BAR Important Points for Your Safety and Longevity of Your Light Bar • • • • • • • • • • • • • • • Installers are required to have a good understanding of automotive electronic systems and procedures for proper installation. Never stare directly into the LEDs as momentary blindness and/or eye damage may occur. Never take any lights through a car wash. Use only water to clean the outer body/lens of your equipment. Never use a pressure washer to clean any STL products.
K-FORCE® TOW 55 FULL LIGHT BAR Wiring Diagram Wire Color Function Wire Color Function Red (Thick)* Positive Blue Left Arrow Black (Thick)* Negative White Center Out Arrow Brown Forward Facing Lights Orange Right Arrow Light Blue Rear Facing Lights Grey Cruise Lights (4 Corners) Purple Full 360° Warning Lights Red (Thin)* Control Box In Positive Yellow Flash Pattern Black (Thin)* Control Box In Negative Light Green Take Down Pink (Thin)* Control Box Out Positive Yellow/Green
K-FORCE® TOW 55 FULL LIGHT BAR Supreme Control Switch Box Operation (Sold Separately) Slide Switch: • Off position: Turns off warning functions of your light bar. • 1st position: Powers only the front of the bar and forward facing 45° warning modules. • 2nd position: Powers only the back of the bar and rear facing 45° warning modules. • 3rd position: Powers all warning functions of your light bar. Take Down Button*: • 1st press: Steady Burn. • 2nd press: Flashing.
K-FORCE® TOW 55 FULL LIGHT BAR Foot Brackets (Included) • • This unit comes included with adjustable Foot Brackets. Adjust the Foot Brackets along the length of the aluminum track accordingly to create a flat, even contact with your roof. Universal Mounting Brackets (Included) • • • • • This unit comes included with Universal Mounting Brackets. Adjust the Foot Brackets along the length of the aluminum track accordingly to reach the Universal Bracket and create a flat, even contact with your roof.
K-FORCE® TOW 55 FULL LIGHT BAR Flash Pattern List • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Steady Burn Single Flash 75 FPM Single Flash 240 FPM Quad Flash 120 FPM Quint Flash Inside/Outside Quint Flash Outside In Quint Flash Outside/Inside/Outside Accelerating Single Flash Left/Right Accelerating Single Flash Outside/Inside/Outside Accelerating Single Flash Alternating Accelerating Single Flash 2x Alternating Accelerating Single Flash Stacking Outside In S
