User guide

Spectrex Inc. - SharpEye
TM
ML & MU Flame Detector Manual – TM 767100, Rev. A, April 2005
39

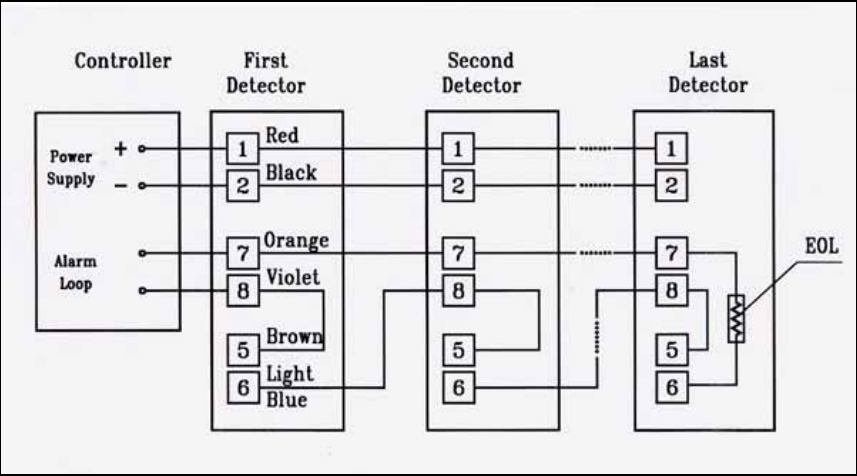

Figure 15: Typical Wiring For 4 Wire Controllers
Notes:
1 For EOL resistor value see Controller Manual
2 The color wire refers to the color of the cable output option. The PIN No.
Refer to the connector option.
