ML & MU Flame Detector Manual – TM 767100, Rev. A, April 2005
25
Description
1 Tilt Mount 5 Holding Screws
2 Detector Holding Plate 6 Washers
3 Mounting Plate 7 IR Detector Direct Mounting Holes
4 Locking Screw

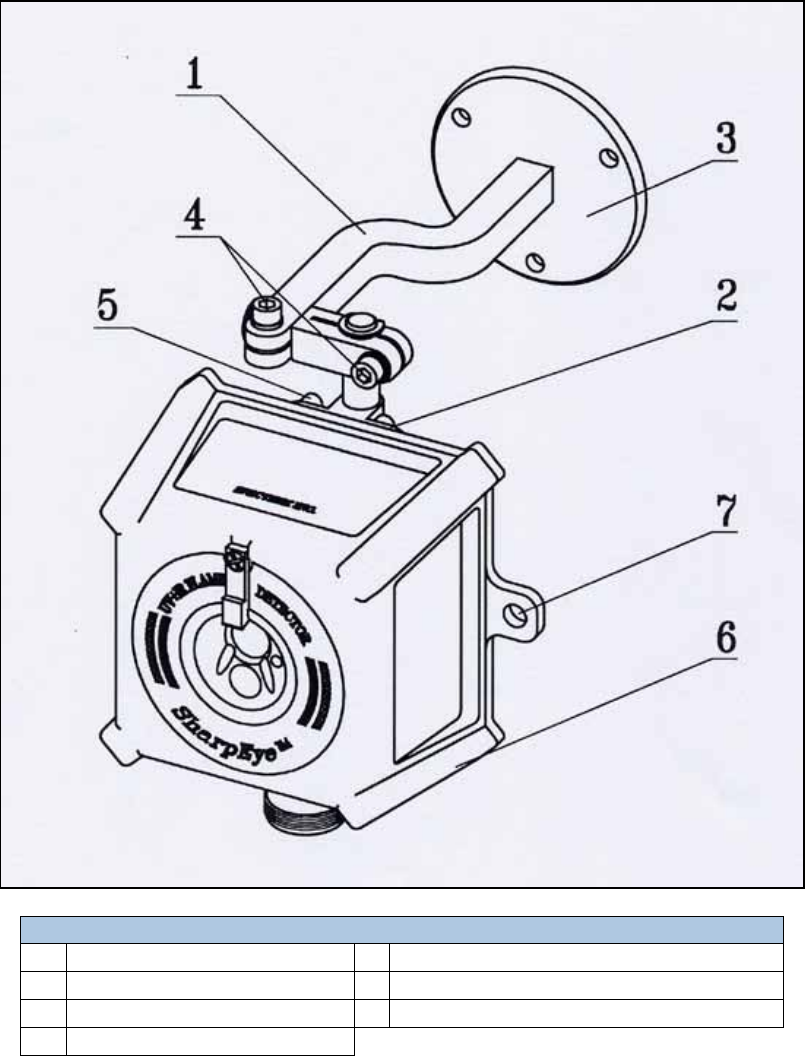

Figure 8: Detector and Tilt Mount Assembly
